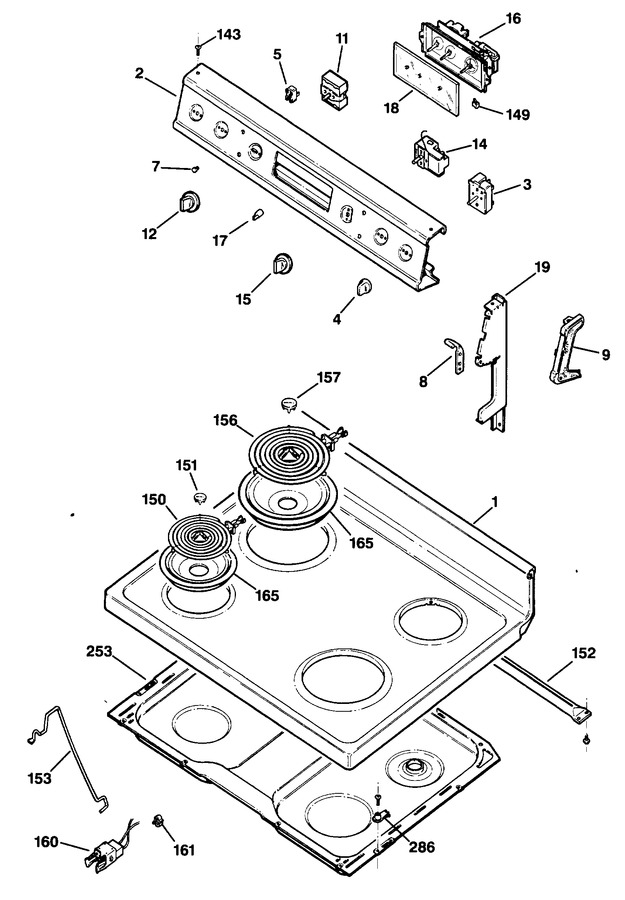

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5385 | Cooktop |
|
- | |||||
| 1 | WB62X5386 | Cooktop Wh |
|
- | |||||
| 2 | WB36X5668 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5782 | Surface Unit Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 9 | WB7X7143 | Cap End Rh |
|
- | |||||
| 9 | WB7X7144 | Cap End Lh |
|
- | |||||
| 11 | WB22X5100 | Switch, Oven |
|
- | |||||
| 12 | WB3K5103 | Selector Switch Knob |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB9X148 | Spring-plunger |
|
- | |||||
| 15 | WB3K5102 | Thermostat Knob |
|
- | |||||
| 16 | WB19X5301 | Timer |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB36X5574 | Crystal Timer |
|
- | |||||
| 19 | WB7X7132 | End Plate R |
|
- | |||||
| 19 | WB7X7133 | End Plate L |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WG02F05372 | 6" Surf Elem (Replaces: WB30M1) |
|
Immediately | $ 68.23 | ||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X8113 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30M2 | 8" Surf Elem |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 160 | WB17X5113 | Receptacle Asm |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 356 | WB2X6574 | Clip Trim |
|
- | |||||
| 360 | WB55X378 | Guard Insulation |
|
- | |||||
| 440 | WB1X5736 | Speednut |
|
- | |||||
| 442 | WB1X5743 | Speednut |
|
- | |||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 676 | WZ04X0263 | Screw |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 999 | 340732 | Tape |
|
- | |||||
| 32767 | 49-8255 | Users Manual |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-1046-A | Wiring Diagram |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 31-1046 | Mini Manual |
|
- |
