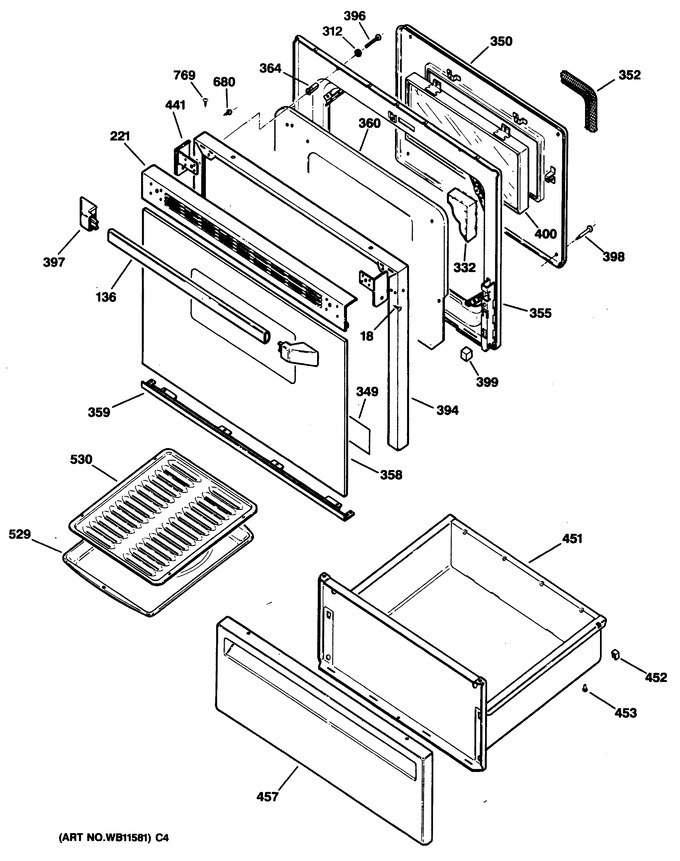

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | WB1X5906 | Scr 6-20 End Cap Door |
|
- | |||||
| 136 | WB15K5078 | Handle Ovn Dr White |
|
- | |||||
| 221 | WB7X7193 | Trim Vent |
|
- | |||||
| 312 | WB1X119 | Washer Contoured |
|
- | |||||
| 332 | WB2X8251 | Insulation |
|
- | |||||
| 349 | WB49X5562 | Reflector |
|
- | |||||
| 350 | WB55X5377 | Liner Door |
|
- | |||||
| 352 | WB2X8423 | Gasket |
|
- | |||||
| 355 | WB55X5361 | Inner Panel |
|
- | |||||
| 355 | WB55X5392 | Liner Asm Door |
|
- | |||||
| 358 | WB36X5685 | Crystal F.g. |
|
- | |||||
| 359 | WG03F01727 | Trim Bottom (wh) (Replaces: WB7X7198) |
|
$ 33.35 | |||||
| 360 | WB55X5380 | Guard Insulation |
|
- | |||||
| 364 | WB2X8443 | Spacer |
|
- | |||||
| 394 | WB7X7192 | Trim Door |
|
- | |||||
| 396 | WB1X5872 | Scr 10-16 Pl Pnp 2.5s |
|
- | |||||
| 397 | WB7X7189 | End Cap Handle |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 400 | WB56K19 | Window Pack Kit Sm |
|
- | |||||
| 441 | WB7X7188 | End Cap Door |
|
- | |||||
| 441 | WG02F04133 | End Cap Door (Replaces: WB7X7187) |
|
$ 19.06 | |||||
| 451 | WB58X5015 | Drawer Asm |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 457 | WB56X7069 | Panel Drawer Wh |
|
- | |||||
| 529 | WB49X5547 | Pan Broiler |
|
- | |||||
| 530 | WB48X5107 | Grid Broiler Pan |
|
- | |||||
| 680 | WR1X1850 | Screw 7-19 X 1/2 Door |
|
- | |||||
| 769 | WB1X500 | Screw Door Asm |
|
- |
