View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

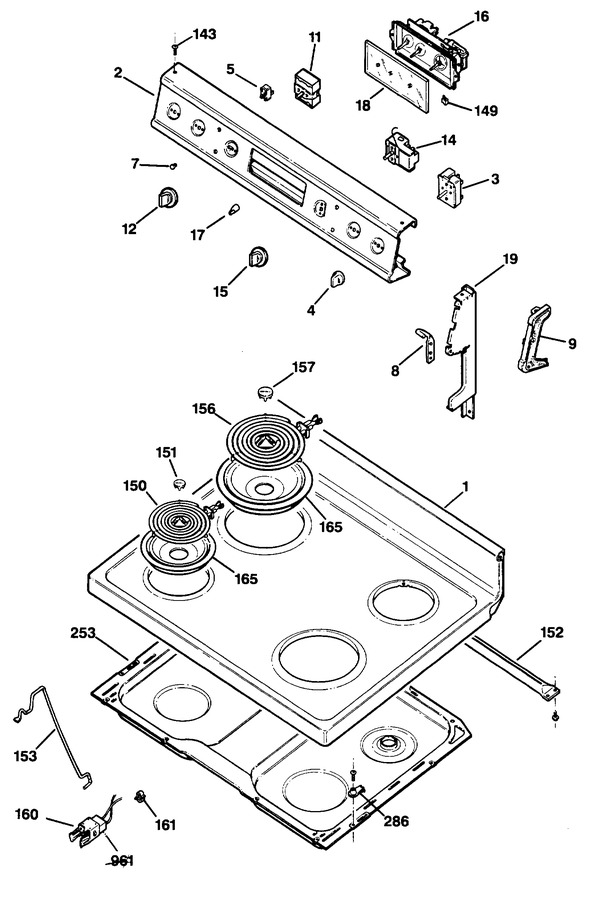

1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5406 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5402 | Cooktop Wh |
|
- | |||||
| 2 | WB36X5660 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB24X5333 | Switch, Inf Surface Unit |
|
- | |||||
| 3 | WB24X5334 | Switch, Inf Surface Unit |
|
- | |||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 11 | WB22X5122 | Oven Switch |
|
- | |||||
| 12 | WB3X5789 | Oven Set Knob |
|
- | |||||
| 14 | WB9X148 | Spring-plunger |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 15 | WB3X5788 | Oven Temp Knob |
|
- | |||||
| 16 | WB19X5306 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB36X5574 | Crystal Timer |
|
- | |||||
| 19 | WB7X7162 | Plate End |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7163 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 56 | WG02F05372 | 6" Surf Elem (Replaces: WB30M1) |
|
Immediately | $ 70.69 | ||||
| 57 | WB30M2 | 8" Surf Elem |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 160 | WB17X5113 | Receptacle Asm |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WB32X5070 | Burner Bowl 6" Black |
|
- | |||||
| 165 | WB32X5069 | Burner Bowl 8" Black |
|
- | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 256 | WB2X8116 | Glider Adj |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Ring Retaining |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB2X8104 | Guard Terminal |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 314 | WB2X1222 | Glass Pad |
|
- | |||||
| 326 | WB2X6574 | Clip Trim |
|
- | |||||
| 327 | WB1X5736 | Speednut |
|
- | |||||
| 328 | WB1K15 | Screw Double Lead |
|
- | |||||
| 332 | WB2X8109 | Door Insulation |
|
- | |||||
| 342 | NCN | Foot Extension |
|
- | |||||
| 361 | WB1X5731 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Contoured |
|
- | |||||
| 371 | WB1X5732 | Speednut |
|
- | |||||
| 373 | WB36X448 | Window |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 32767 | 49-8335 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-1069 | Pm Manual Mini |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
