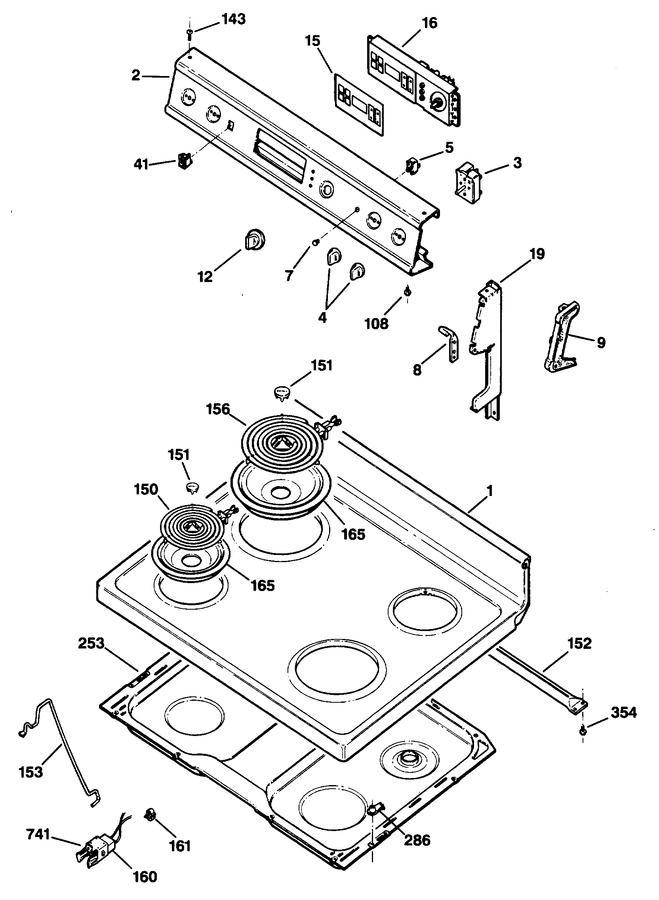

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5428 | Cooktop Ad |
|
- | |||||
| 2 | WB36X5752 | Trim & Bracket Asm Ad |
|
- | |||||
| 3 | WB23X5092 | Sw Inf. Control 6" Brnr |
|
- | |||||
| 3 | WB32X5095 | Sw.inf.cntrl - 8" Brnr |
|
- | |||||
| 4 | WB3X5816 | Knob - Almond - Surface |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7228 | Cap End |
|
- | |||||
| 9 | WB7X7227 | Cap End |
|
- | |||||
| 12 | WB3X5817 | Knob Thermo Oven Set Ad |
|
- | |||||
| 15 | WB27X5566 | Faceplate (almond) |
|
- | |||||
| 16 | WB9X5121 | Spring Detent |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 16 | WB27X5579 | Control T08 |
|
- | |||||
| 16 | WB2X8350 | Cam Dual |
|
- | |||||
| 19 | WB7X7271 | End Plate Ad Lh |
|
- | |||||
| 19 | WB7X7270 | End Plate Ad Rh |
|
- | |||||
| 41 | WB24X5318 | Switch - Rocker Almond |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5902 | Scr 8-18 Ab Ovt 1/2 S Ad |
|
- | |||||
| 150 | WG02F05372 | 6" P.i. S/u Alum (Replaces: WB30M1) |
|
Immediately | $ 70.69 | ||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WB32X5083 | Bowl Burner 6" Blk Porc |
|
- | |||||
| 165 | WG02L01430 | Bowl Burner 8" Blk Porc (Replaces: WB32X5085) |
|
Immediately | $ 27.03 | ||||
| 253 | WB49X5566 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 353 | WB2X8320 | Clip Window |
|
- | |||||
| 354 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 375 | WB36X5679 | Crystal Window |
|
- | |||||
| 441 | WB7X7295 | Cap End Door Rh Ad |
|
- | |||||
| 441 | WB7X7296 | Cap End Door Lh Ad |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- | |||||
| 32767 | 49-8591 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-1428 | Pm Manual Mini |
|
- | |||||
| 32767 | WB18X5136 | Harness |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- |
