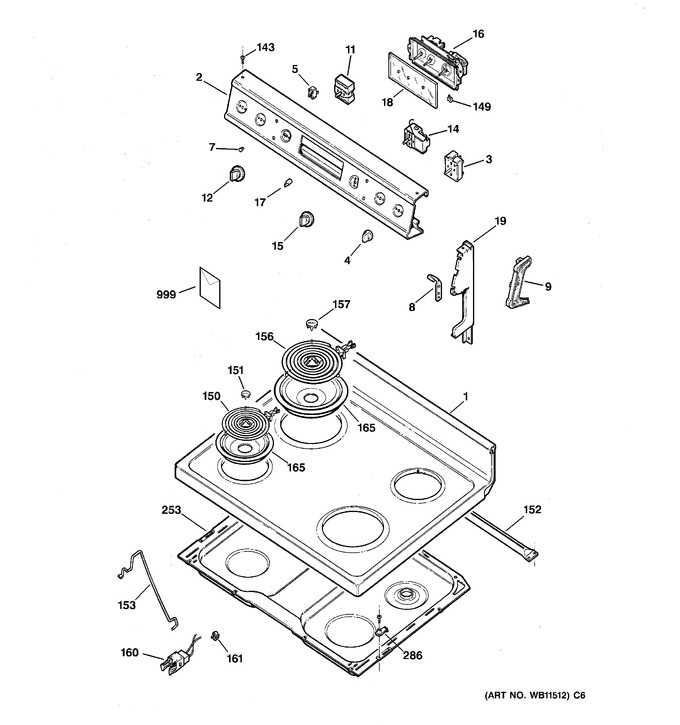

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5402 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5406 | Cooktop Ad |
|
- | |||||
| 2 | WB36X5660 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB24X5333 | Switch, Inf Surface Unit |
|
- | |||||
| 3 | WB24X5334 | Switch, Inf Surface Unit |
|
- | |||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 11 | WB22X5100 | Oven Switch |
|
- | |||||
| 12 | WB3X5789 | Oven Set Knob |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 15 | WB3X5788 | Oven Temp Knob |
|
- | |||||
| 16 | WB19X5306 | Timer |
|
- | |||||
| 17 | WB3X5814 | Knob |
|
- | |||||
| 18 | WB36X5574 | Crystal Timer |
|
- | |||||
| 19 | WB7X7163 | Plate End |
|
- | |||||
| 19 | WB7X7162 | Plate End |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 160 | WB17X5113 | Receptacle Asm |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WB32X5069 | Burner Bowl 8" Black |
|
- | |||||
| 165 | WB32X5070 | Burner Bowl 6" Black |
|
- | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 353 | WB2X8320 | Clip Window |
|
- | |||||
| 999 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 999 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 999 | 31-1069 | Pm Manual Mini |
|
- | |||||
| 999 | 49-8335 | Pm Manual Use & Care |
|
- |
