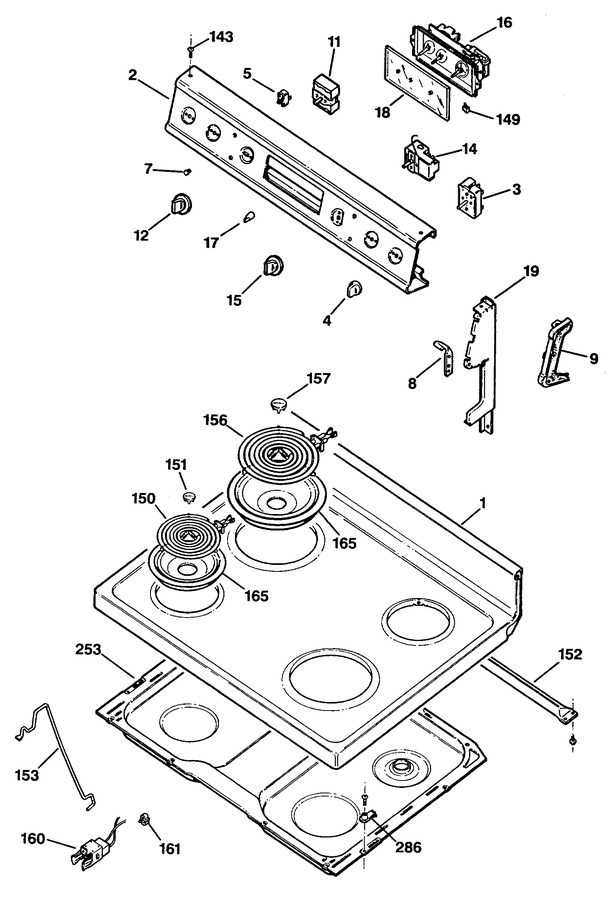

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5428 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5427 | Cooktop Wh |
|
- | |||||
| 2 | WB36X5660 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 12 | WB3X5788 | Oven Temp Knob |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 15 | WB3X5789 | Oven Temp Knob |
|
- | |||||
| 16 | WB19X5306 | Timer |
|
- | |||||
| 18 | WB36X5574 | Crystal Timer |
|
- | |||||
| 19 | WB7X7163 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7162 | Plate End |
|
- | |||||
| 21 | WB49X5521 | Cover Back |
|
- | |||||
| 30 | WB3X5699 | "timer-knob" |
|
- | |||||
| 35 | WB22X5122 | Oven Switch |
|
- | |||||
| 57 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 108 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 109 | WB1X5743 | Speednut |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 275 | WB2X8249 | Guard Terminal |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 314 | WB2X1222 | Pad Glass (felt) |
|
- | |||||
| 326 | WB2X6574 | Clip Trim |
|
- | |||||
| 328 | WB1K15 | Screw Double Lead |
|
- | |||||
| 338 | WB56K19 | Window Pack Sm |
|
- | |||||
| 342 | WB2X8241 | Foot Extension |
|
- | |||||
| 354 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 457 | WB56X7069 | Panel Drawer Wh |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 519 | WB2X8250 | Insulation |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 | ||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 741 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 752 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 807 | WB0X6542 | Screw |
|
- | |||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 9999 | WB7X7175 | Trim Latch |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB18X5125 | Harness Kit |
|
- | |||||
| 32767 | 49-8335 | Pm Manual Use & Care |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
