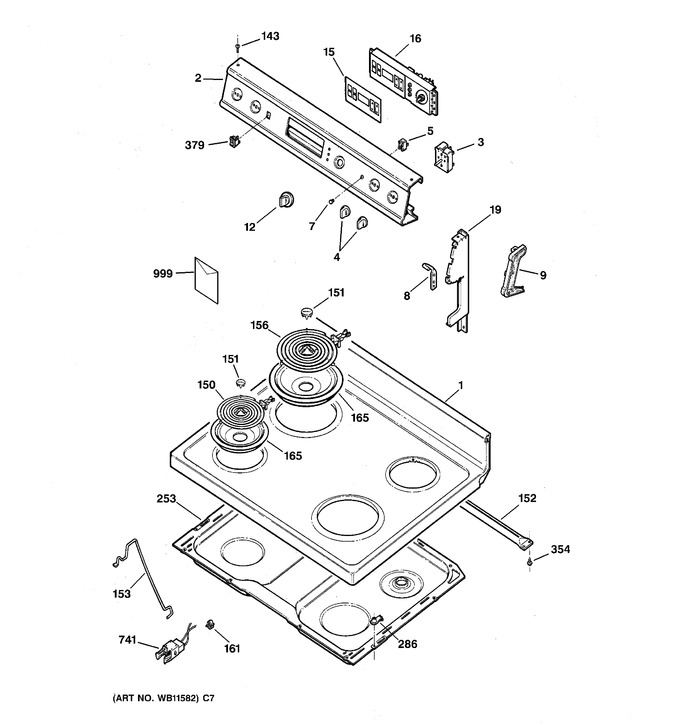

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5427 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5428 | Cooktop Ad |
|
- | |||||
| 2 | WB36X5709 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB24X5333 | Sw.inf. Control 6" Brnr |
|
- | |||||
| 3 | WB24X5334 | Sw.inf. Control 8" Brnr |
|
- | |||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 12 | WB3X5806 | Knob |
|
- | |||||
| 15 | WB27X5564 | Faceplate (black) |
|
- | |||||
| 16 | WB2X8297 | Cam Dual |
|
- | |||||
| 16 | WB27X5579 | Control T08 |
|
- | |||||
| 16 | WB2X8298 | Spring Detent |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 19 | WB7X7162 | Plate End |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7163 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 143 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 150 | WB30X5121 | Unit Asm 6" P I |
|
- | |||||
| 151 | WB32X5088 | Trim Center |
|
- | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30X5122 | Unit Asm 8" P.i. |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WG02L01430 | Bowl Burner 8" (Replaces: WB32X5085) |
|
Immediately | $ 27.03 | ||||
| 165 | WB32X5083 | Bowl Burner 6" |
|
- | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 354 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 379 | WB24X5290 | Switch Rocker |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 999 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 999 | WB18X5136 | Harness |
|
- | |||||
| 999 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 999 | 31-1428 | Pm Manual Mini |
|
- | |||||
| 999 | 49-8451 | Pm Manual Use & Care |
|
- |
