SELECT A DIAGRAM

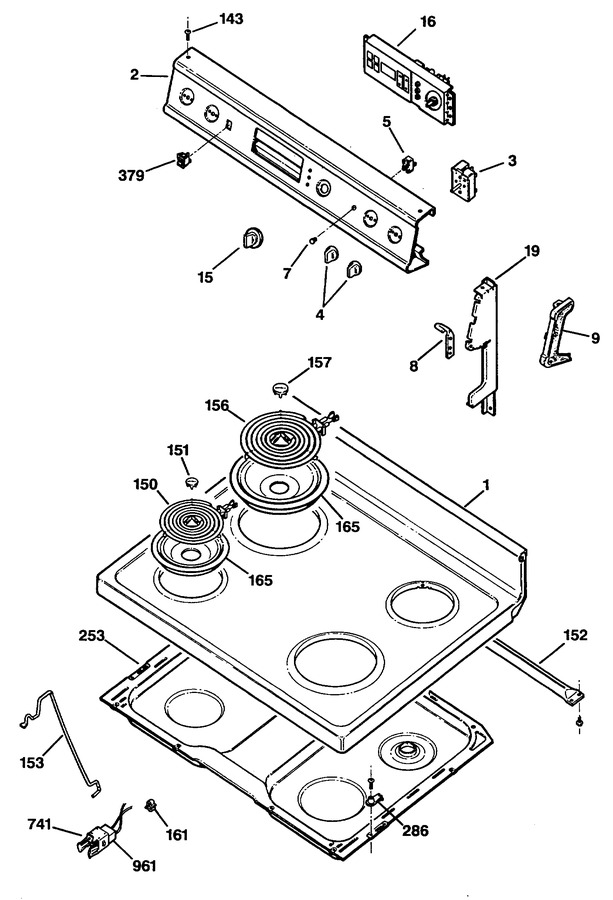

1 - Component Group


2 - Component Group


3 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5427		Cooktop Wh		Appelez-nous	-
2	WB36X5716		Trim & Bracket Asm		Appelez-nous	-
3	WB24X5333		Switch Infinite Control		Appelez-nous	-
4	WB3X5782		Surface Unit Knob		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
6	WB24X5334		Switch Infinite Control		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB2X8126		Pin Hinge R		Appelez-nous	-
8	WB2X8127		Pin Hinge L		Appelez-nous	-
9	WB1X5874		Screw End Cap		Appelez-nous	-
12	WB3X5807		Knob		Appelez-nous	-
16	WB2X8324		Cam Dual		Appelez-nous	-
16	WB27X5546		Control T08		Appelez-nous	-
16	WB9X5121		Spring Detent		Appelez-nous	-
16	WB2X8268		Nut		Appelez-nous	-
19	WB7X7269		Plate End Wh Lh		Appelez-nous	-
19	WB7X7268		Plate End Wh Rh		Appelez-nous	-
19	WB7X7144		Cap End Lh		Appelez-nous	-
19	WB7X7143		Cap End Rh		Appelez-nous	-
150	WB30X5129		6" P.i. S/u Alum		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
152	WB2X8128		Bar Torsion		Appelez-nous	-
153	WB2X8114		Rod Support		Appelez-nous	-
154	WB32X5075		Burner Bowl 6"		Appelez-nous	-
156	WB30X5130		8" P.i. S/u Alum		Appelez-nous	-
158	WB32X5076		Burner Bowl 8"				$ 10.45
161	WS01A01095		Clip Wire   (Replaces: WB2X8115)			Immediately	$ 3.97
253	WB49X5499		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
353	WB2X8320		Clip Window		Appelez-nous	-
379	WB24X5323		Switch Rocker (white)		Appelez-nous	-
398	WB1X600		Scr Shoulder		Appelez-nous	-
400	WB36X5679		Crystal Window		Appelez-nous	-
708	WB24X5291		Switch Logic		Appelez-nous	-
709	WB14X5043		Latch		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
769	WB1X500		Screw		Appelez-nous	-
1458	WB17X5073		Terminal Blk Asm (1 Pin)		Appelez-nous	-
32767	31-0824		Install Instr (anti-tip)		Appelez-nous	-
32767	31-1428		Pm Manual Mini		Appelez-nous	-
32767	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
32767	49-8451		U/c Manual		Appelez-nous	-
32767	WB18X5148		Harness		Appelez-nous	-
