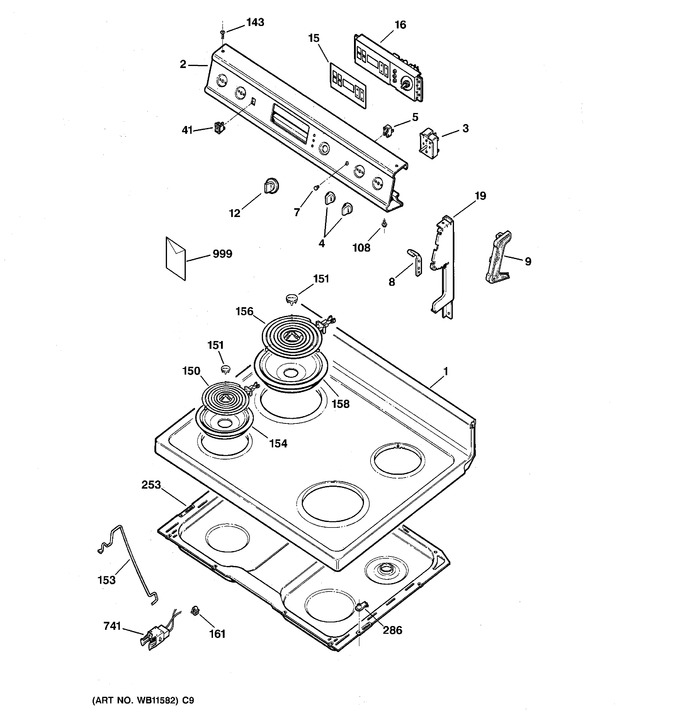

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5402 | Cooktop Asm - White |
|
- | |||||
| 2 | WB36X10038 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB24X5334 | Switch Inf Surface Un 8" |
|
- | |||||
| 3 | WB24X5333 | Switch Inf Surface Un 6" |
|
- | |||||
| 4 | WB03X10028 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB02X10485 | Pin Hinge R |
|
- | |||||
| 8 | WB02X10486 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7146 | Cap End Right White |
|
- | |||||
| 9 | WB7X7145 | Cap End Left White |
|
- | |||||
| 12 | WB03X10036 | Knob |
|
- | |||||
| 15 | WB27X10058 | Faceplate |
|
- | |||||
| 16 | WB27X10022 | Control T08 |
|
- | |||||
| 19 | WB7X7269 | Plate End Lh Wh |
|
- | |||||
| 19 | WB7X7268 | Plate End Rh Wh |
|
- | |||||
| 41 | WB24X5323 | Switch Rocker White |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5874 | Screw (wh) |
|
- | |||||
| 150 | WB30X5129 | 6" P.i. S/u Alum |
|
- | |||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30X5120 | 8" Surface Element |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 253 | WB49X5566 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 999 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 999 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 999 | 31-20711 | Pm Manual Mini |
|
- | |||||
| 999 | 49-8828 | Pm Manual Use & Care |
|
- |
