SELECT A DIAGRAM

1 - Control Panel

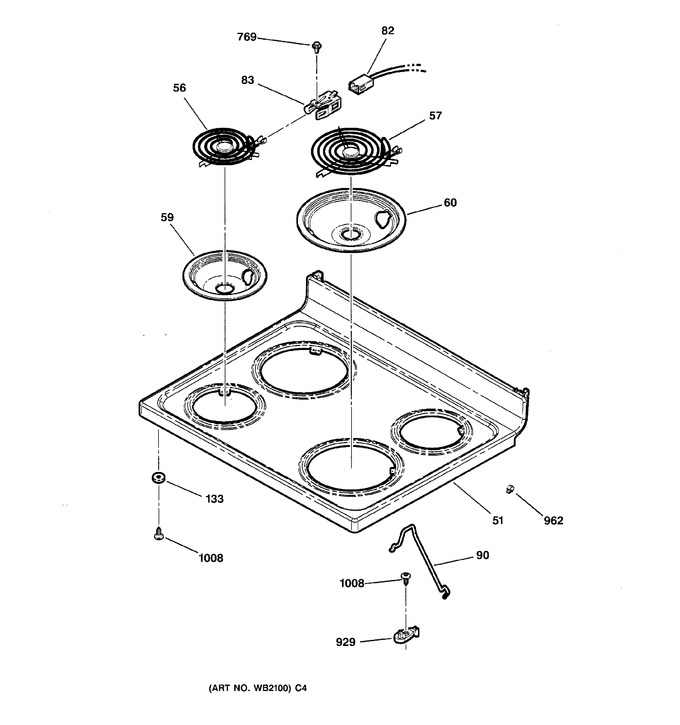

2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
51	WB62T10009		Maintop Asm/almond		Appelez-nous	-
56	WB30T10025		Surface Unit Asm 6"		Appelez-nous	-
57	WB30T10031		Surface Unit Asm 8"		Appelez-nous	-
59	WB31T10014		Bowl Burner 6"		Appelez-nous	-
60	WG02L01430		Bowl Burner 8"   (Replaces: WB31T10015)			Immediately	$ 27.03
82	WB17T10001		Terminal Block W/wires		Appelez-nous	-
83	WB01T10014		Terminal Block Clip		Appelez-nous	-
90	WB02T10025		Support Rod		Appelez-nous	-
133	WG02F03972		Door Bumper   (Replaces: WB01T10022)				$ 6.35
133	WB01T10021		Maintop Bumper		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
929	WB02T10026		Maintop Strike		Appelez-nous	-
962	WS01A01095		Clip Wire   (Replaces: WB2X8115)			Immediately	$ 3.97
1008	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
