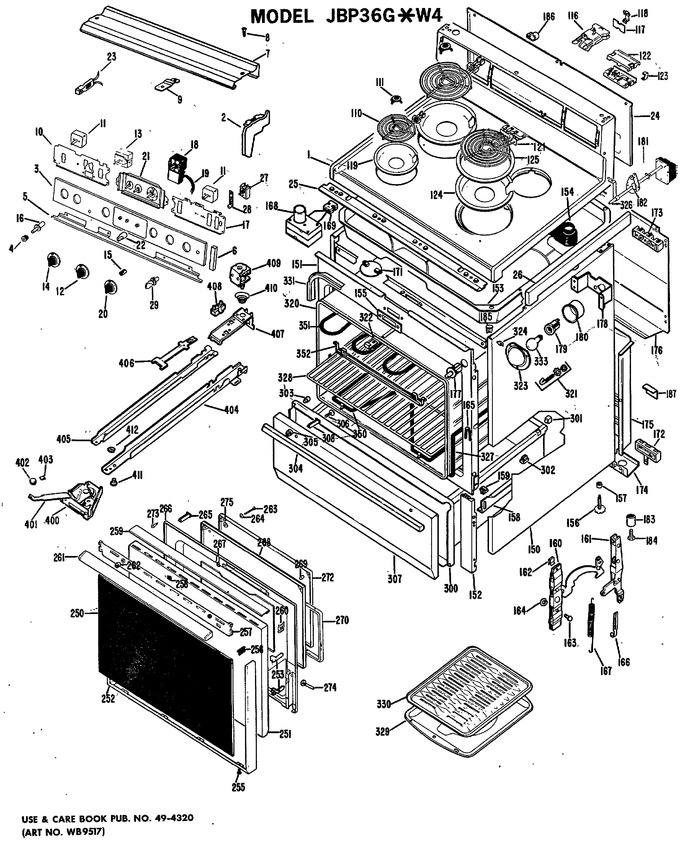

SELECT A DIAGRAM

1 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X1472		Cooktop Ha		Appelez-nous	-
1	WB62X1473		Cooktop Ad		Appelez-nous	-
1	WB62X1469		Cooktop Wh		Appelez-nous	-
1	WB62X1470		Cooktop Cf		Appelez-nous	-
1	WZ06X0046		Screw - Mt. Top		Appelez-nous	-
1	WB62X1471		Cooktop Fa		Appelez-nous	-
2	WB1X271		Nut Mtg Cap		Appelez-nous	-
2	WB7X948		End Cap Rh		Appelez-nous	-
2	WB1X568		Scr 8-18 Ba Rt 7/16 S		Appelez-nous	-
2	WB7X949		End Cap Lh		Appelez-nous	-
3	WB36X552		Crystal		Appelez-nous	-
3	WB2X3232		Pad		Appelez-nous	-
4	WB2X3429		Washer		Appelez-nous	-
5	WZ04X0209		Handle Screw		Appelez-nous	-
5	WB7X909		Trim Crystal Lower		Appelez-nous	-
6	WB7X911		Trim Crystal End		Appelez-nous	-
7	WB7X1115		Trim Top		Appelez-nous	-
8	WZ04X0237		Screw		Appelez-nous	-
9	WB1X568		Scr 8-18 Ba Rt 7/16 S		Appelez-nous	-
9	WB2X2969		Trim Anchor		Appelez-nous	-
10	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.97
10	WB2X3263		Bracket Instrument Lh		Appelez-nous	-
10	WB2X3191		Gasket		Appelez-nous	-
11	WB21X5217		Switch Infinite Control		Appelez-nous	-
11	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
12	WB3X472		Knob Surface Unit		Appelez-nous	-
13	WB22X5100		Switch P7 Oven Rotary		Appelez-nous	-
13	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
14	WB3X465		Knob Oven Switch		Appelez-nous	-
15	WB2X2900		Spacer-upper		Appelez-nous	-
16	WB24X108		Switch, Latch Release		Appelez-nous	-
17	WB2X3389		Bracket Instrument Rh		Appelez-nous	-
17	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.97
18	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
18	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
19	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
20	WB2X2900		Spacer-upper		Appelez-nous	-
20	WB3X466		Knob Thermostat		Appelez-nous	-
21	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.97
21	WB19X146		Timer		Appelez-nous	-
22	WB3X459		Knob Timer		Appelez-nous	-
23	WB2X1609		Lamp, Indicator		Appelez-nous	-
23	WB2X1608		Neon Lamp 118v				$ 31.65
24	WZ06X0082		Scr 8-18 B Hxw 3/8 S		Appelez-nous	-
24	WB49X335		Cover Back		Appelez-nous	-
25	WZ04X0231		Screw Mt. Side		Appelez-nous	-
25	WB7X1061		Deflector		Appelez-nous	-
26	WB7X1003		Trim Cooktop Lh		Appelez-nous	-
26	WB1X568		Scr 8-18 Ba Rt 7/16 S		Appelez-nous	-
26	WB7X1002		Trim Cooktop Rh		Appelez-nous	-
27	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
27	WB24X5011		Switch, Select 4-6-8"		Appelez-nous	-
28	WB1X458		Screw, Mtg. Bracket		Appelez-nous	-
28	WB2X2910		Bracket Switch		Appelez-nous	-
29	WB3X5486		Knob Selector Switch		Appelez-nous	-
110	WB30X218		Surface Unit, 6"		Appelez-nous	-
111	WB32X52		Center Trim 6" Unit		Appelez-nous	-
113	PS240M		Surface Unit, 8"   (Replaces: WB30X219)			Immediately	$ 44.95
114	WZ04X0256		Screw Mt. Guide L.l.h. -		Appelez-nous	-
114	WB32X51		Center Trim 8" Unit		Appelez-nous	-
116	WB17X5051		Receptacle Asm		Appelez-nous	-
116	WB1X5355		Screw Recept Terminal		Appelez-nous	-
117	WB2X6171		Insulator		Appelez-nous	-
118	WB2X6172		Clip Insulator		Appelez-nous	-
119	WB31X5010		Pan Ring 6" Chrome		Appelez-nous	-
120	WB31X5011		Pan Ring 8" Chrome		Appelez-nous	-
121	WB30X346		Surface Unit, 4-6-8"		Appelez-nous	-
122	WB2X2018		Unit Terminal Block		Appelez-nous	-
123	WB2X574		3 In 1 Insulator Clip		Appelez-nous	-
124	WB32X5036		Pan Unit 8" Chrome				$ 18.70
125	WB31X5012		Trim Ring 8"		Appelez-nous	-
151	WB56X1349		Frame Front		Appelez-nous	-
152	WB49X322		Filler Panel		Appelez-nous	-
153	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.97
153	WB49X341		Box Cooktop		Appelez-nous	-
153	WB1X568		Scr 8-18 Ba Rt 7/16 S		Appelez-nous	-
154	WB38X50		Vent Body		Appelez-nous	-
155	WB7X552		Trim Latch		Appelez-nous	-
155	WZ02X0503		Screw		Appelez-nous	-
156	WB1X450		Leg Leveling		Appelez-nous	-
157	WB2X3386		Sleeve		Appelez-nous	-
158	WB39X51		Drawer Guide Rh & Lh		Appelez-nous	-
159	WB2X831		Slide Guide		Appelez-nous	-
160	WB10X147		Hinge Lever Asm		Appelez-nous	-
161	WB1X556		Scr 8-18 Ba Rt 7/16 S		Appelez-nous	-
161	WB10X148		Hinge Spt Rh		Appelez-nous	-
161	WB1X549		Screw (hex)		Appelez-nous	-
161	WB10X149		Hinge Spt Lh		Appelez-nous	-
162	WB2X3193		Clip Shim		Appelez-nous	-
163	WG02A00596		Pin Hinge Door   (Replaces: WB2X6195)				$ 4.20
164	WB2X1082		Ring Retaining		Appelez-nous	-
165	WB2X6342		Guide Hinge Lever		Appelez-nous	-
166	WB2X2506		Hook Door Spring		Appelez-nous	-
167	WB9X143		Spring Door		Appelez-nous	-
168	WB29X55		Smoke Eliminator Asm		Appelez-nous	-
169	WB2X3388		Terminal Block		Appelez-nous	-
171	WB2X1626		Baffle		Appelez-nous	-
171	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
172	WB2X646		Plate Ground		Appelez-nous	-
172	WZ04X0373		Screw Mt. Block		Appelez-nous	-
172	WB17X168		Terminal Block-power		Appelez-nous	-
173	WB17X167		Block Term Distribution		Appelez-nous	-
173	WZ04X0384		Screw Mtg End Cap		Appelez-nous	-
174	WB2X1908		Knockout Plate		Appelez-nous	-
174	WB1X549		Screw (hex)		Appelez-nous	-
175	WB2X3137		Guard Terminal		Appelez-nous	-
176	WZ06X0082		Scr 8-18 B Hxw 3/8 S		Appelez-nous	-
176	WB49X336		Cover Back		Appelez-nous	-
177	WB24X105		Switch		Appelez-nous	-
178	WB2X3473		Bracket Support		Appelez-nous	-
178	WB1X458		Screw, Mtg. Bracket		Appelez-nous	-
179	WB8X5060		Lampholder		Appelez-nous	-
180	WB2X3252		Guard Lamp		Appelez-nous	-
181	WB24X5138		Switch, Thermal (tls)		Appelez-nous	-
181	WB2X3474		Barrier		Appelez-nous	-
182	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
182	WB2X3164		Plate		Appelez-nous	-
182	WB2X3163		Gasket-tls				$ 22.50
183	WB2X3330		Foot		Appelez-nous	-
184	WZ04X0394		Screw		Appelez-nous	-
185	WB2X3394		Plug Button		Appelez-nous	-
186	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
186	WB2X1742		Clamp Harness		Appelez-nous	-
187	WB2X3229		Barrier Bakeunit Opening		Appelez-nous	-
250	WB2X3308		Pad		Appelez-nous	-
250	WB36X554		Glass Black		Appelez-nous	-
251	WB56X1466		Panel Door		Appelez-nous	-
252	WB7X5637		Trim Door		Appelez-nous	-
253	WB2X6575		Clip Trim		Appelez-nous	-
253	WB2X6574		Clip-trim Door		Appelez-nous	-
255	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
256	WB7X5631		Cap Trim		Appelez-nous	-
257	WB7X5629		Trim Door		Appelez-nous	-
258	WB2X3053		Clip Mtg Door Trims		Appelez-nous	-
259	WB7X5636		Trim Top		Appelez-nous	-
260	WB2X6270		Spacer Door		Appelez-nous	-
261	WB15X145		Handle		Appelez-nous	-
262	WB2X3258		Grommet Handle		Appelez-nous	-
263	WZ04X0385		Screw		Appelez-nous	-
264	WB1X119		Washer Contoured		Appelez-nous	-
265	WB2X6204		Spacer Panel		Appelez-nous	-
266	WB55X380		Door Liner		Appelez-nous	-
266	WB2X3397		Insulation Door		Appelez-nous	-
267	WB9X154		Strike Spring		Appelez-nous	-
267	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
268	WB55X428		Liner Panel		Appelez-nous	-
269	WB2X3455		Spacer - Liner		Appelez-nous	-
269	WZ04X0384		Screw Mtg End Cap		Appelez-nous	-
270	WG02L02006		Gasket - Door Fibreglass   (Replaces: WB2X2614)			Immediately	$ 60.44
272	WB1X600		Scr Shoulder		Appelez-nous	-
272	WB2X1798		Reflector Foil		Appelez-nous	-
272	WB55X427		Panel Inner		Appelez-nous	-
273	WB1X584		Shoulder Screw		Appelez-nous	-
273	WB1X548		Washer		Appelez-nous	-
274	WB2X3285		Pad		Appelez-nous	-
274	WB1X558		Screw Nail Point		Appelez-nous	-
275	WB1X599		Washer		Appelez-nous	-
300	WB58X50		Drawer Asm		Appelez-nous	-
301	WB2X840		Slide Top		Appelez-nous	-
302	WB2X841		Slide Bottom		Appelez-nous	-
303	WB2X584		Bumper		Appelez-nous	-
304	WB15X147		Handle		Appelez-nous	-
305	WB2X3135		Handle Spacer		Appelez-nous	-
306	WZ04X0395		Handle Screw		Appelez-nous	-
307	WB56X1396		Drawer Panel Wh		Appelez-nous	-
307	WB56X1398		Drawer Panel Fa		Appelez-nous	-
307	WB56X1400		Drawer Panel Ad		Appelez-nous	-
307	WB56X1399		Drawer Panel Ha		Appelez-nous	-
307	WB56X1397		Drawer Panel Cf		Appelez-nous	-
308	WB2X3387		Spacer Panel		Appelez-nous	-
320	WB53X246		Oven Liner		Appelez-nous	-
320	WB2X3395		Insulation		Appelez-nous	-
321	WB9X88		Lockwasher		Appelez-nous	-
322	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
322	WB2X3393		Trim Clip		Appelez-nous	-
323	WG02F04576		Lamp Cover Asm   (Replaces: WB36X192)				$ 20.65
324	WB2X1659		Speednut		Appelez-nous	-
325	WZ04X0361		Scr 8-18x5/8		Appelez-nous	-
326	WZ04X0288		Scr 10-16 Ab Hxw 1/2s #8		Appelez-nous	-
326	WB2X3165		Hanger-tls		Appelez-nous	-
327	WB44X203		Mullion Unit		Appelez-nous	-
327	WB1X458		Screw, Mtg. Bracket		Appelez-nous	-
327	WB2X3253		Mullion Unit Clip		Appelez-nous	-
328	WB48X118		Rack Oven		Appelez-nous	-
328	WB48X117		Rack Offset		Appelez-nous	-
329	WB49X88		Broil Pan		Appelez-nous	-
330	WB48X5002		Broiler Pan Rack		Appelez-nous	-
331	WB53X247		Frame Oven		Appelez-nous	-
350	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
350	WB44X201		Bake Unit 208/240v		Appelez-nous	-
351	WB44X202		Broil Unit 208/240v		Appelez-nous	-
351	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
351	WB2X1543		Gasket - Broil		Appelez-nous	-
352	WB2X1810		Support Broil Unit		Appelez-nous	-
352	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
400	WB14X36		Latch Assembly		Appelez-nous	-
401	WB1X438		Screw Washer Asm		Appelez-nous	-
401	WB15X142		Handle		Appelez-nous	-
402	WB3X322		Knob Latch		Appelez-nous	-
403	WG02A00753		Retainer Knob   (Replaces: WB2X2030)				$ 4.20
404	WB2X3174		Channel Latch		Appelez-nous	-
405	WB2X3175		Channel Locking		Appelez-nous	-
406	WB2X3159		Locking Pawl Asm		Appelez-nous	-
407	WB2X3176		Plate Mounting		Appelez-nous	-
407	WB1X438		Screw Washer Asm		Appelez-nous	-
407	WZ04X0362		Screw 10-16 X 1/4" Hex		Appelez-nous	-
408	WB24X183		Switch, Latch		Appelez-nous	-
408	WZ04X0397		Scr 6-32 C Flr 5/16 S		Appelez-nous	-
409	WB24X197		Solenoid		Appelez-nous	-
409	WB1X438		Screw Washer Asm		Appelez-nous	-
410	WB9X148		Spring-plunger		Appelez-nous	-
411	WB2X6212		Pivot Stud		Appelez-nous	-
412	WB2X3147		Barrier		Appelez-nous	-
412	WB2X1800		Retainer Ring		Appelez-nous	-
412	WZ04X0394		Screw		Appelez-nous	-
32767	WB30X218		Surface Unit, 6"		Appelez-nous	-
32767	WB24X197		Solenoid		Appelez-nous	-
32767	WB22X5100		Switch, Oven L.o.		Appelez-nous	-
32767	WB21X5217		Switch, Inf Surface Unit		Appelez-nous	-
32767	WB44X201		Bake Unit 208/240v L.o.		Appelez-nous	-
32767	WB44X203		Mullion Unit		Appelez-nous	-
32767	WB24X5138		Switch, Thermal		Appelez-nous	-
32767	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
32767	WB24X183		Switch Latch		Appelez-nous	-
32767	WB24X105		Switch, Oven Light		Appelez-nous	-
32767	WB24X108		Switch Latch Release		Appelez-nous	-
32767	WB19X146		Timer		Appelez-nous	-
32767	WB44X202		Broil Unit 208/240v L.o.		Appelez-nous	-
32767	PS240M		Surface Unit, 8"   (Replaces: WB30X219)			Immediately	$ 44.95
