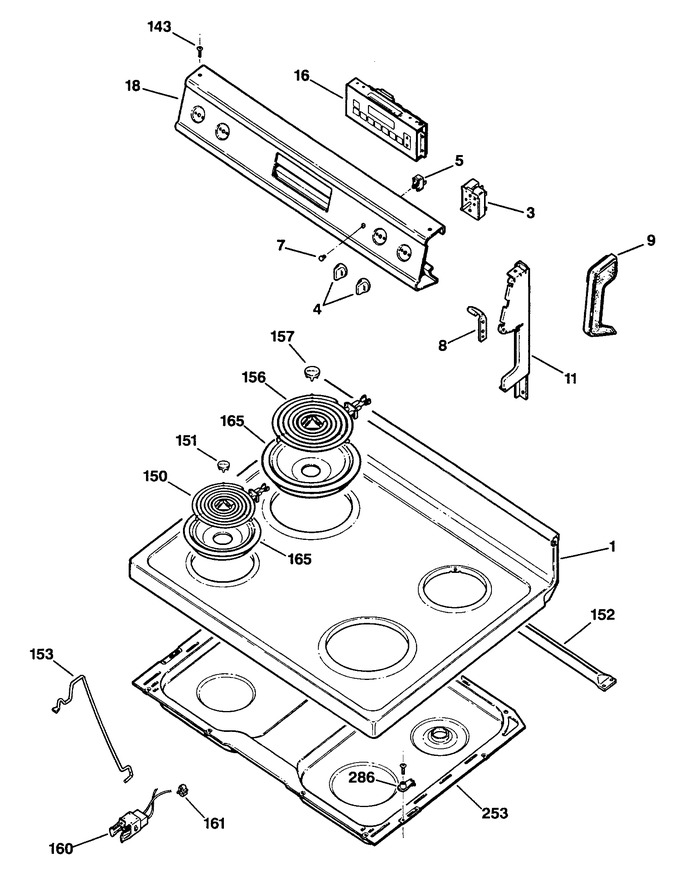

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7140 | Cap End Right |
|
- | |||||
| 9 | WB7X7139 | Cap End Left |
|
- | |||||
| 16 | WB27X5475 | Timer Erc2 |
|
- | |||||
| 18 | WB36X5667 | Trim & Bracket Asm |
|
- | |||||
| 19 | WB7X7166 | Plate End L |
|
- | |||||
| 19 | WB7X7165 | Plate End R |
|
- | |||||
| 21 | WB49X5521 | Cover Back |
|
- | |||||
| 57 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 108 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 108 | WB1X5754 | Screw |
|
- | |||||
| 109 | WB1X5743 | Speednut |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 150 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WB32X5083 | Bowl Burner 6" |
|
- | |||||
| 165 | WG02L01430 | Bowl Burner 8" (Replaces: WB32X5085) |
|
Immediately | $ 27.03 | ||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 256 | WB2X8248 | Glider Adj |
|
- | |||||
| 274 | WB2X8247 | Knockout Plate |
|
- | |||||
| 275 | WB2X8249 | Guard Terminal |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 314 | WB2X1222 | Pad Glass (felt) |
|
- | |||||
| 328 | WB1K15 | Screw Double Lead |
|
- | |||||
| 342 | WB2X8241 | Foot Extension |
|
- | |||||
| 354 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 358 | WB36X5659 | Glass Black |
|
- | |||||
| 519 | WB2X8250 | Insulation |
|
- | |||||
| 521 | WB9X88 | Lockwasher |
|
- | |||||
| 529 | WB49X5547 | Pan Broiler |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 | ||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 741 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 32767 | WB18X5126 | Harness Kit |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | 31-1412 | Pm Mini Manual |
|
- | |||||
| 32767 | 49-8383 | Pm Manual Use & Care |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
