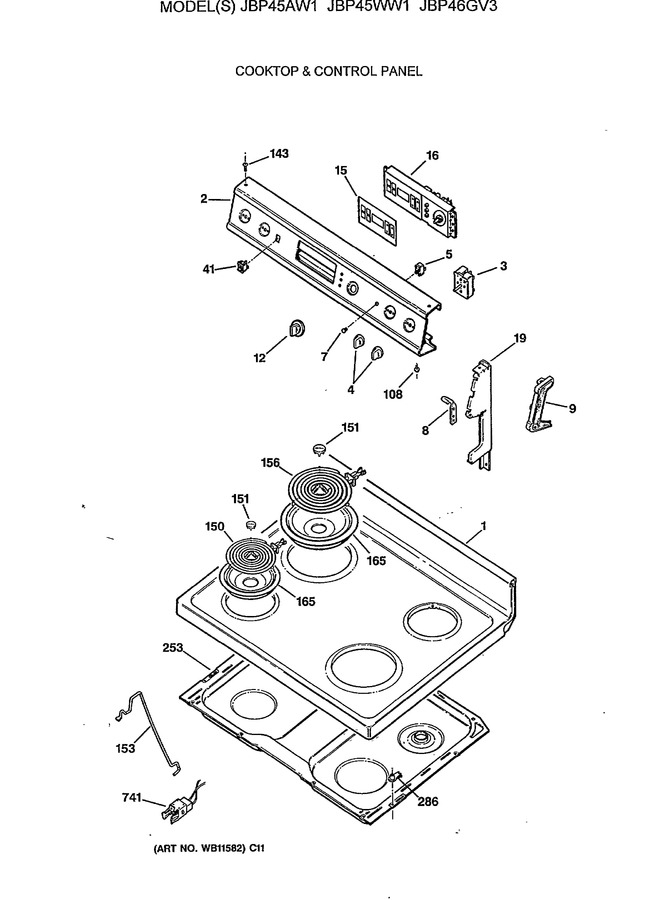

1 - Cooktop & Control Panel
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5402 | Range Top Asm - White |
|
- | |||||
| 2 | WB36X5753 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5830 | Knob (white/red Stripe) |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7144 | Cap End Rh Wh |
|
- | |||||
| 9 | WB7X7143 | Cap End Lh Wh |
|
- | |||||
| 12 | WB3X5831 | Knob Oven Thermo |
|
- | |||||
| 16 | WB2X8324 | Cam Dual |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 16 | WB27X5581 | Control T08 |
|
- | |||||
| 16 | WB27X5565 | Faceplate |
|
- | |||||
| 16 | WB9X5121 | Spring Detent |
|
- | |||||
| 19 | WB7X7268 | Plate End Wh Rh |
|
- | |||||
| 19 | WB7X7269 | Plate End Wh Lh |
|
- | |||||
| 41 | WB24X5323 | Switch Rocker White |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5874 | Scr 8-18 Ab Ovt 1/2 S |
|
- | |||||
| 150 | WB30X5129 | 6" P.i. S/u Alum |
|
- | |||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 165 | WG02L01866 | Bowl Burner 8" (Replaces: WB32X5086) |
|
Immediately | $ 28.98 | ||||
| 165 | WG02L01858 | Bowl Burner 6" Grey Porc (Replaces: WB32X5084) |
|
$ 26.40 | |||||
| 248 | WS01F02431 | Sensor Asm. (Replaces: WB23X5340) |
|
Immediately | $ 30.20 | ||||
| 253 | WB49X5566 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 350 | WB55X5382 | Inner Panel |
|
- | |||||
| 360 | WB55X5403 | Guard Insulation |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 709 | WB14X5043 | Latch |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 1458 | WB1X5967 | Screw Asm.- Terminal Blk |
|
- | |||||
| 1458 | WB1X5968 | Nut |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- |
