SELECT A DIAGRAM

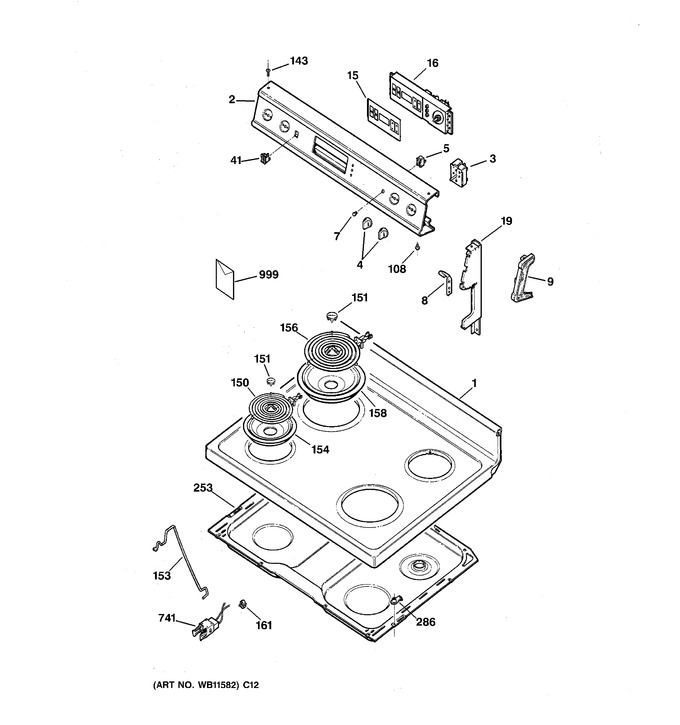

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5451		Weld Asm Rangetop Wh		Appelez-nous	-
2	WB36X10040		Trim & Bracket Asm		Appelez-nous	-
3	WB24X5333		Switch Inf Surface Un 6"		Appelez-nous	-
3	WB24X5334		Switch Inf Surface Un 8"		Appelez-nous	-
4	WB03X10039		Knob		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB02X10486		Pin Hinge L		Appelez-nous	-
8	WB02X10485		Pin Hinge R		Appelez-nous	-
9	WB7X7146		Cap End Right White		Appelez-nous	-
9	WB7X7145		Cap End Left White		Appelez-nous	-
15	WB27X10063		Faceplate		Appelez-nous	-
16	WB27X10127		Control Erciii B		Appelez-nous	-
19	WB7X7268		Plate End Rh Wh		Appelez-nous	-
19	WB7X7269		Plate End Lh Wh		Appelez-nous	-
41	WB24X5323		Switch Rocker White		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5874		Screw (wh)		Appelez-nous	-
150	WB30X5119		6" Surface Element		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
153	WB2X8114		Rod Support		Appelez-nous	-
154	WG02L01858		Bowl Burner 6" Grey Porc   (Replaces: WB32X5084)				$ 26.40
156	WB30X5120		Coil Asm 8 Inch P I		Appelez-nous	-
158	WG02L01866		Bowl Burner 8" Grey Porc   (Replaces: WB32X5086)			Immediately	$ 28.98
161	WS01A01095		Clip Wire   (Replaces: WB2X8115)			Immediately	$ 3.97
253	WB49X5566		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 52.48
999	49-8914		Pm Manual Use & Care		Appelez-nous	-
999	31-20712		Pm Manual Mini		Appelez-nous	-
999	49-8896		Pm Instruction Install		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
