View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:

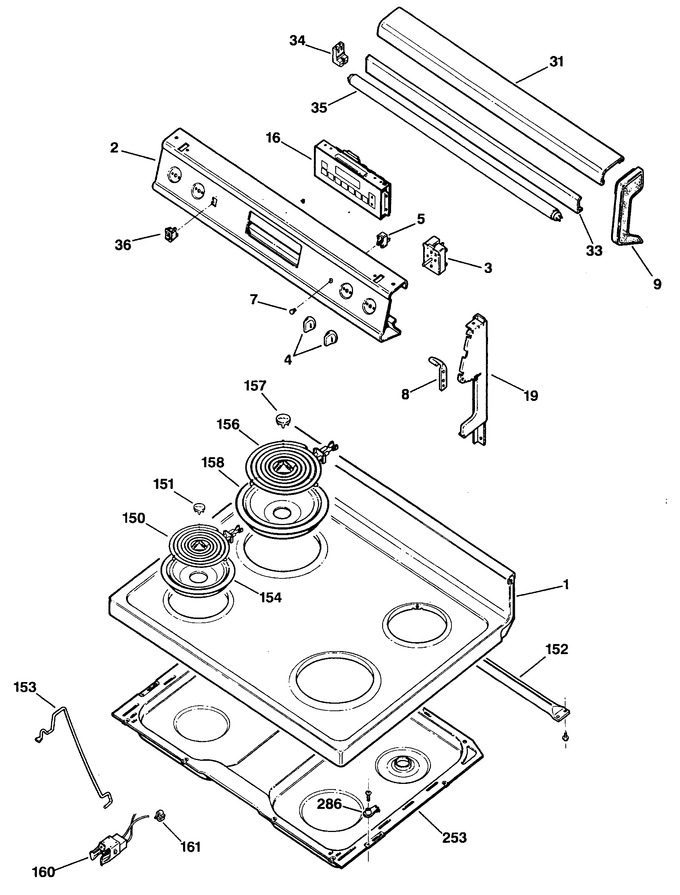

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5402 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5406 | Cooktop Ad |
|
- | |||||
| 2 | WB36X5658 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7698 | Lamp Pilot 250v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7123 | Cap End Lamp R |
|
- | |||||
| 9 | WB7X7124 | Cap End Lamp L |
|
- | |||||
| 14 | WB9X148 | Spring-plunger |
|
- | |||||
| 16 | WB27X5475 | Timer Erc2 |
|
- | |||||
| 19 | WB7X7164 | Plate End Ad |
|
- | |||||
| 19 | WB7X7161 | Plate End Wh |
|
- | |||||
| 19 | WB7X7163 | Plate End Wh |
|
- | |||||
| 19 | WB7X7162 | Plate End Ad |
|
- | |||||
| 31 | WB7X7127 | Lamp Cover Blk |
|
- | |||||
| 33 | WB7K40 | Shield Lamp |
|
- | |||||
| 34 | WB8X5098 | "f" Lamp Socket Rh & Lh |
|
- | |||||
| 36 | WB24X5261 | Switch-rocker Lamp |
|
- | |||||
| 56 | WG02F05372 | 6" Surf Elem (Replaces: WB30M1) |
|
Immediately | $ 70.69 | ||||
| 57 | WB30M2 | 8" Surf Elem |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 160 | WB17X5113 | Receptacle Asm |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WB32X5069 | Burner Bowl 8" Black |
|
- | |||||
| 165 | WB32X5070 | Burner Bowl 6" Black |
|
- | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 314 | WB2X1222 | Glass Pad |
|
- | |||||
| 326 | WB2X6574 | Clip Trim |
|
- | |||||
| 327 | WB1X5736 | Speednut |
|
- | |||||
| 328 | WB1K15 | Screw Double Lead |
|
- | |||||
| 358 | WB36X5679 | Crystal Window |
|
- | |||||
| 518 | WB2X8100 | Insulation-back |
|
- | |||||
| 519 | WB2X8099 | Insulation-oven Wrap |
|
- | |||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 741 | OBT LOCAL | Fustat 15amp Type S |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 49-8257 | Manual Users |
|
- |
