View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

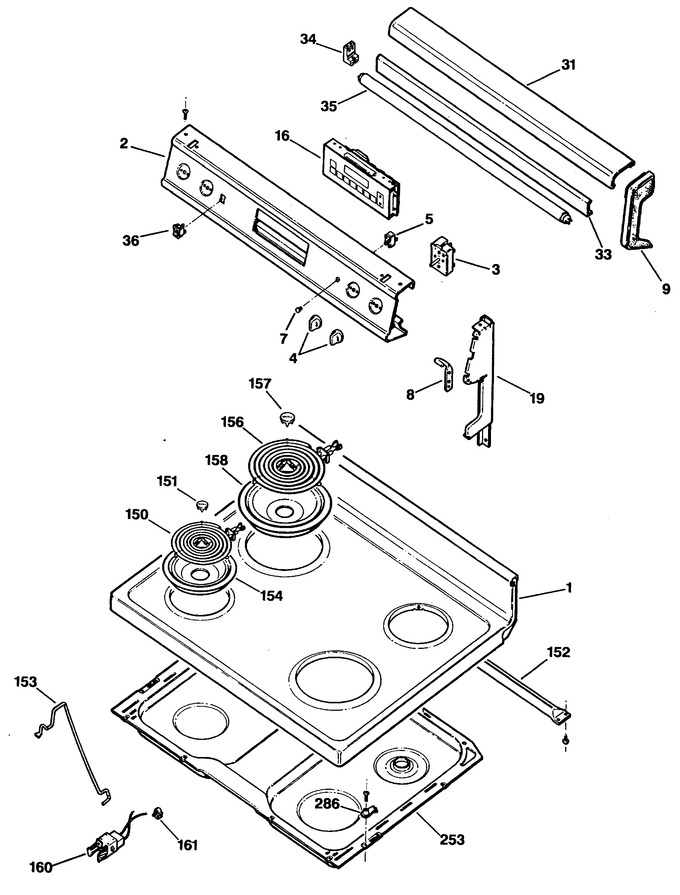

1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36X5794 | Trim & Bracket Asm |
|
- | |||||
| 1 | WB62X5428 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5427 | Cooktop Wh |
|
- | |||||
| 3 | WB24X5333 | Switch Infinite Control |
|
- | |||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 6 | WB24X5334 | Switch Infinite Control |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7201 | Cap End Lamp Rh |
|
- | |||||
| 9 | WB7X7202 | Cap End Lamp Lh |
|
- | |||||
| 16 | WB27X5508 | Timer Erc2 |
|
- | |||||
| 19 | WB7X7269 | Plate End Wh Lh |
|
- | |||||
| 19 | WB7X7268 | Plate End Wh Rh |
|
- | |||||
| 31 | WB7X7127 | Lamp Cover Blk |
|
- | |||||
| 34 | WB8X5098 | "f" Lamp Socket Rh & Lh |
|
- | |||||
| 35 | WB2X4666 | Fluorescent Light Bulb |
|
- | |||||
| 36 | WB24X5261 | Switch-rocker Lamp |
|
- | |||||
| 45 | WB30X5119 | 6" Surface Element |
|
- | |||||
| 46 | WB30X5120 | 8" Surface Element |
|
- | |||||
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 108 | WB1X5754 | Screw |
|
- | |||||
| 134 | WB7K40 | Shield Lamp |
|
- | |||||
| 150 | WB30X5129 | 6" P.i. S/u Alum |
|
- | |||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WG02L01430 | Bowl Burner 8" (Replaces: WB32X5085) |
|
Immediately | $ 27.03 | ||||
| 165 | WB32X5083 | Bowl Burner 6" |
|
- | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 272 | WB17X5123 | Block Terminal |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 363 | WB2X8442 | Spacer |
|
- | |||||
| 379 | WB24X5290 | Switch |
|
- | |||||
| 396 | WB1X5872 | Scr 10-16 Pl Pnp 2.5s |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 518 | WB2X8412 | Insulation |
|
- | |||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 741 | OBT LOCAL | Fustat 15amp Type S |
|
- | |||||
| 741 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 49-8483 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-1427 | Pm Manual Mini |
|
- |
