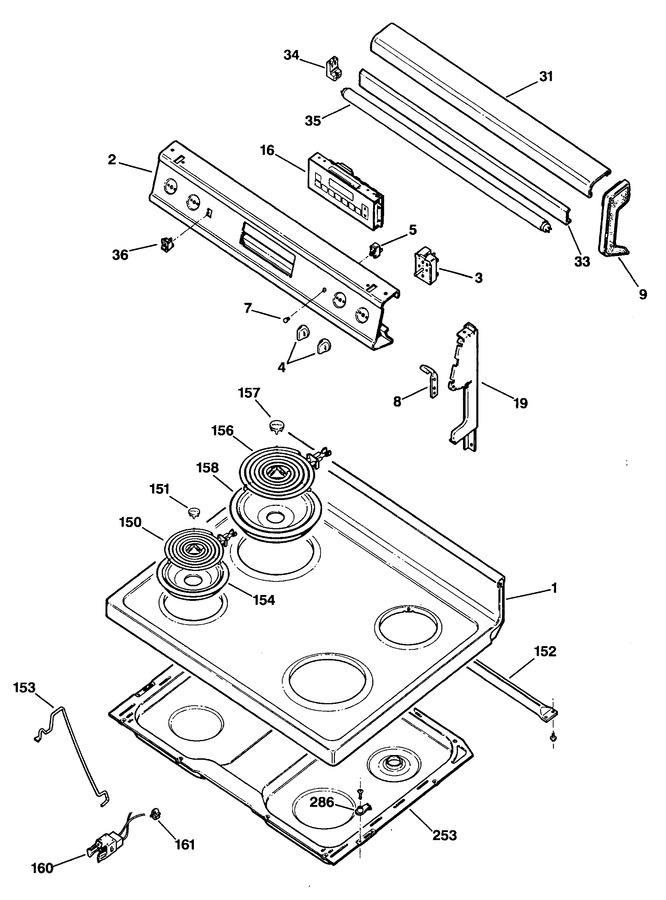

1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5410 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5411 | Cooktop Ad |
|
- | |||||
| 2 | WB36X5664 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5782 | Surface Unit Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7124 | Cap End Lamp L |
|
- | |||||
| 9 | WB7X7123 | Cap End Lamp R |
|
- | |||||
| 16 | WB27X5476 | Timer Erc2 |
|
- | |||||
| 19 | WB7X7162 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7163 | Plate End |
|
- | |||||
| 31 | WB7X7134 | Lamp Cover White |
|
- | |||||
| 33 | WB7K40 | Shield Lamp |
|
- | |||||
| 34 | WB8X5098 | "f" Lamp Socket Rh & Lh |
|
- | |||||
| 36 | WB24X5263 | Switch-rocker Lamp |
|
- | |||||
| 150 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 254 | WB1X549 | Screw (hex) |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 314 | WB2X1222 | Pad Glass |
|
- | |||||
| 328 | WB1K15 | Screw Double Lead |
|
- | |||||
| 354 | WS01A02255 | Screw (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 358 | WB36X5687 | Glass White |
|
- | |||||
| 373 | WB56K19 | Window Pack Kit Sm |
|
- | |||||
| 375 | WB36X5679 | Crystal Window |
|
- | |||||
| 518 | WB2X8100 | Insulation-back |
|
- | |||||
| 532 | WB38X5063 | Tube Vent |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 741 | OBT LOCAL | Fustat 15amp Type S |
|
- | |||||
| 741 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 961 | WB17X5121 | Recept. Asm. |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 49-8383 | Pm Manual Use & Care |
|
- | |||||
| 32767 | WB18X5126 | Harness Kit |
|
- | |||||
| 32767 | 31-1411 | Pm Mini Manual |
|
- |
