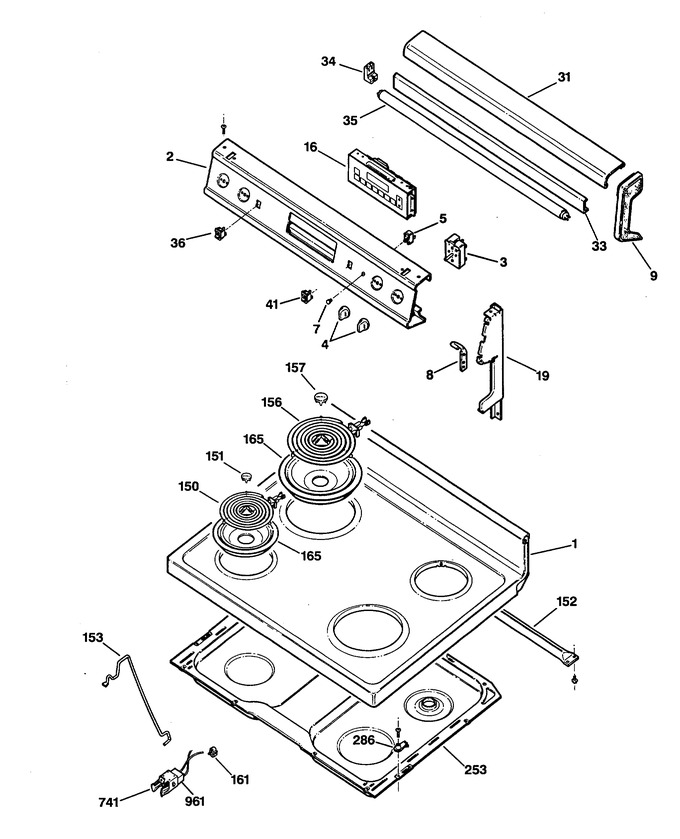

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5428 | Cooktop Ad |
|
- | |||||
| 3 | WB24X5290 | Switch |
|
- | |||||
| 3 | WB24X5333 | Sw.inf. Control 6" Brnr |
|
- | |||||
| 4 | WB3X5782 | Surface Unit Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 6 | WB24X5334 | Sw.inf. Control 8" Brnr |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7199 | Cap End Lamp Rh |
|
- | |||||
| 9 | WB1X5874 | Screw End Cap |
|
- | |||||
| 9 | WB7X7200 | Cap End Lamp |
|
- | |||||
| 16 | WB27X5509 | Timer Erc2 |
|
- | |||||
| 19 | WB7X7268 | Plate End Wh Rh |
|
- | |||||
| 19 | WB7X7269 | Plate End Wh Lh |
|
- | |||||
| 21 | WB49X5521 | Cover Back |
|
- | |||||
| 31 | WB7X7134 | Lamp Cover White |
|
- | |||||
| 34 | WB8X5098 | "f" Lamp Socket Rh & Lh |
|
- | |||||
| 36 | WB24X5263 | Switch-rocker Lamp |
|
- | |||||
| 45 | WB30X5119 | 6" Surface Element |
|
- | |||||
| 46 | WB30X5120 | 8" Surface Element |
|
- | |||||
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 134 | WB7K40 | Shield Lamp |
|
- | |||||
| 150 | WB30X5129 | 6" P.i. S/u Alum |
|
- | |||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 152 | WB2X8128 | Bar Torsion |
|
- | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WG02L01866 | Bowl Burner 8" - Gray (Replaces: WB32X5086) |
|
Immediately | $ 28.98 | ||||
| 165 | WG02L01858 | Bowl Burner 6" - Gray (Replaces: WB32X5084) |
|
$ 26.40 | |||||
| 223 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 224 | WB2X1082 | Ring Retaining |
|
- | |||||
| 252 | WB49X5497 | Panel Filler Ad |
|
- | |||||
| 252 | WB49X5565 | Panel Filler |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 258 | WB39X51 | Drawer Guide Rh & Lh |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 272 | WB17X5123 | Block Terminal |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 291 | WB8X5102 | Ballast |
|
- | |||||
| 312 | WB1X119 | Washer Contoured |
|
- | |||||
| 349 | WB49X5562 | Reflector |
|
- | |||||
| 352 | WB2X8423 | Gasket |
|
- | |||||
| 363 | WB2X8442 | Spacer |
|
- | |||||
| 396 | WB1X5872 | Scr 10-16 Pl Pnp 2.5s |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 457 | WB56X7032 | Panel Drawer Ad |
|
- | |||||
| 461 | WB1X593 | Screw |
|
- | |||||
| 521 | WB9X88 | Lockwasher |
|
- | |||||
| 530 | WB48X5107 | Grid Broiler Pan |
|
- | |||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 680 | WR1X1850 | Screw |
|
- | |||||
| 741 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 741 | OBT LOCAL | Fustat 15amp Type S |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 999 | 340732 | Tape |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- |
