1 - Control Panel & Cooktop

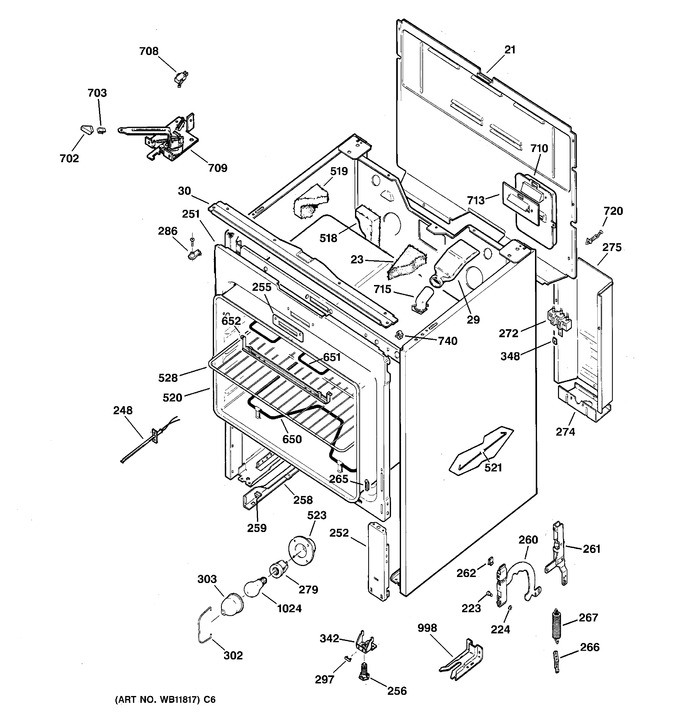

2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | WB49X10011 | Cover Back |
|
- | |||||
| 23 | WB2X8315 | Insulation Vent Cover |
|
- | |||||
| 23 | WB2X8316 | Insulation Vent Tube |
|
- | |||||
| 29 | WB38X5066 | Tube Vent Elbow |
|
- | |||||
| 30 | WB2X8310 | Cooktop Bracket Front |
|
- | |||||
| 223 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 224 | WB2X1082 | Ring Retaining |
|
- | |||||
| 248 | WS01F02431 | Sensor Asm (Replaces: WB23X5340) |
|
Immediately | $ 30.20 | ||||
| 251 | WB56X10100 | Frame Front |
|
- | |||||
| 252 | WB49X10032 | Panel Filler Ad |
|
- | |||||
| 255 | WB7X7175 | Latch Trim |
|
- | |||||
| 256 | WG02A00475 | Leg Leveler (Replaces: WB02X10521) |
|
Immediately | $ 6.35 | ||||
| 258 | WB39X10004 | Guide Drawer |
|
- | |||||
| 259 | WB02X10562 | Slide Guide |
|
- | |||||
| 260 | WB10X5206 | Hinge Lever |
|
- | |||||
| 261 | WB10X149 | Hinge Spt Lh |
|
- | |||||
| 261 | WB10X148 | Hinge Spt Rh |
|
- | |||||
| 262 | WB2X3193 | Clip Shim |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X146 | Spring Door |
|
- | |||||
| 272 | WB17X5123 | Block Terminal |
|
- | |||||
| 274 | WB2X8247 | Knockout Plate |
|
- | |||||
| 275 | WB2X8249 | Guard Terminal |
|
- | |||||
| 279 | WS01F02438 | Push-in Recepticle (Replaces: WB08T10004) |
|
Immediately | $ 11.71 | ||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 297 | WB02X10522 | Bumper Range |
|
- | |||||
| 302 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 303 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 342 | WB02X10520 | Foot Extension |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 518 | WB2X8412 | Insulation |
|
- | |||||
| 519 | WB02X10586 | Insulation |
|
- | |||||
| 520 | WB53X5157 | Oven Liner Asm |
|
- | |||||
| 521 | WB9X88 | Lockwasher |
|
- | |||||
| 521 | WB9X5118 | Hook Asm |
|
- | |||||
| 523 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 528 | WB48X5099 | Rack Oven |
|
$ 90.78 | |||||
| 650 | WB44X10009 | Bake Element Push On |
|
- | |||||
| 651 | WB44X10015 | Broil Push/bushing |
|
- | |||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 702 | WB3X5805 | Latch Knob |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 708 | WB24X5326 | Switch Logic 6 Amp. |
|
- | |||||
| 709 | WB14X10018 | Latch & Switch Asm |
|
- | |||||
| 710 | WB38X5065 | Collar |
|
- | |||||
| 710 | WB38X5064 | Body Vent |
|
- | |||||
| 713 | WB2X8311 | Gasket Vent |
|
- | |||||
| 715 | WB38X5067 | Tube Vent |
|
- | |||||
| 720 | WB2X8323 | Clip Pushon |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Bk |
|
- | |||||
| 998 | WB02T10053 | Anti Tip Bracket Asm |
|
- | |||||
| 1024 | WX12X1510 | Oven Light Bulb |
|
- |
