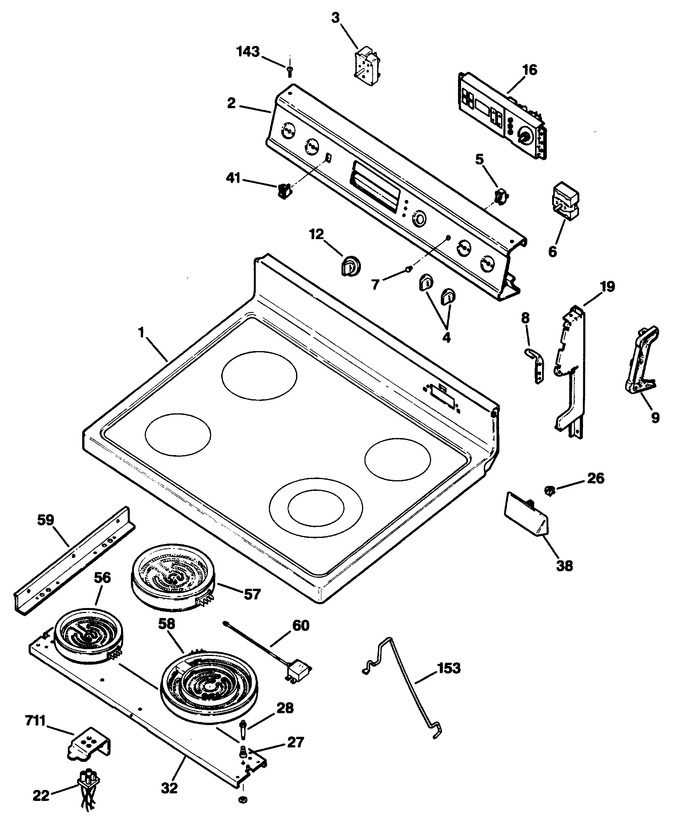

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5415 | Cooktop Asm Ad |
|
- | |||||
| 2 | WB36X5737 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB24X5333 | Switch, Inf Surface Unit |
|
- | |||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 6 | WB24X5315 | Switch Infinite Control |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 12 | WB3X5806 | Knob |
|
- | |||||
| 16 | WB2X8297 | Cam Dual |
|
- | |||||
| 16 | WB2X8298 | Spring Detent |
|
- | |||||
| 16 | WB27X5526 | Control T08 |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 22 | WB8X5106 | Hot Light Indicator |
|
- | |||||
| 24 | WB2X8316 | Insulation Vent Tube |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 32 | WB2X8318 | Support Radiant Heater |
|
- | |||||
| 38 | WB7X7218 | Vent Trim & Clip Asm |
|
- | |||||
| 41 | WB24X5290 | Switch |
|
- | |||||
| 56 | WB23K5039 | Surface Element 1400w |
|
- | |||||
| 57 | WB23K5040 | Surface Element 1900w |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 60 | WB24K5070 | Thermal Switch 1400w |
|
- | |||||
| 60 | WB24K5071 | Thermal Switch 1900w |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 272 | WB17X5123 | Block Terminal |
|
- | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 303 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 350 | WB55X5377 | Liner Door |
|
- | |||||
| 353 | WB2X8320 | Clip Window |
|
- | |||||
| 366 | WB2X8319 | Window Spacer |
|
- | |||||
| 375 | WB36X5679 | Crystal Window |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 528 | WB48X5099 | Rack Oven |
|
$ 90.78 | |||||
| 711 | WB2X8307 | Bracket Hot Light |
|
- | |||||
| 716 | WB38X5068 | Orifice Vent |
|
- | |||||
| 717 | WB38X5069 | Plate Vent |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | 49-8436 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | 49-8457 | Tape Vcr |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | WB2X8273 | Cleaner Glass |
|
- | |||||
| 32767 | WB18X5136 | Harness |
|
- | |||||
| 32767 | 31-1444 | Pm Manual Mini |
|
- | |||||
| 32767 | WB6K5036 | Razor Blade Scraper |
|
- |
