SELECT A DIAGRAM

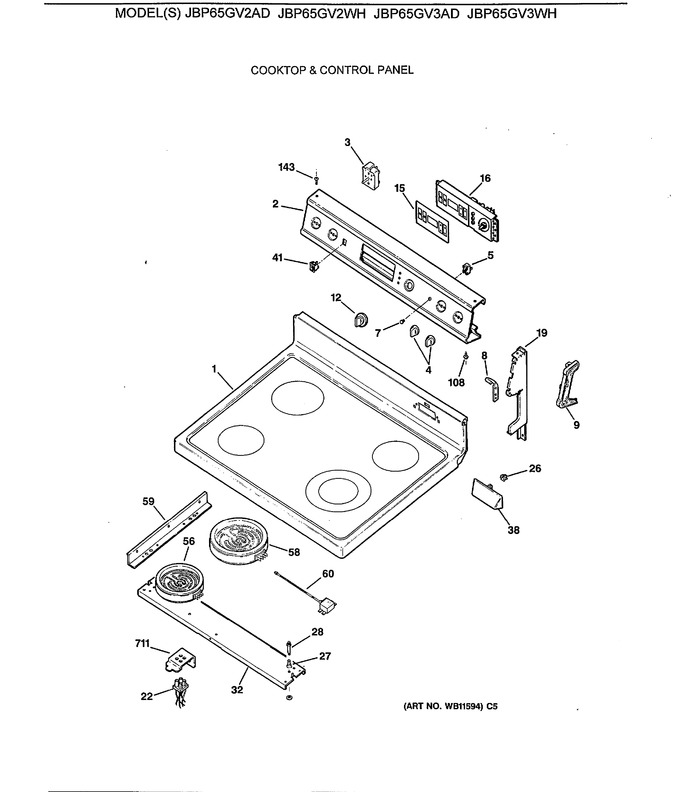

1 - Cooktop & Control Panel
2 - Door & Drawer Parts
3 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5472 | Rangetop & Glass Asm Ad |
|
- | |||||
| 2 | WB36X5782 | Trim & Bracket Asm Blk |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5834 | Knob-surface Unit |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 12 | WB3X5829 | Knob-oven Thermo Set |
|
- | |||||
| 15 | WB27X5563 | Faceplate (black) |
|
- | |||||
| 16 | WB9X5121 | Spring Detent |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 16 | WB2X8297 | Cam Dual |
|
- | |||||
| 16 | WB27X5562 | Control To8 |
|
- | |||||
| 19 | WB7X7270 | End Plate Ad Rh |
|
- | |||||
| 19 | WB7X7271 | End Plate Ad Lh |
|
- | |||||
| 22 | WB8X5118 | Indicator Hot Surface |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 32 | WB2X8556 | Support Radiant Heater |
|
- | |||||
| 38 | WB7X7218 | Vent Trim & Clip Asm Ad |
|
- | |||||
| 41 | WB24X5290 | Switch |
|
- | |||||
| 56 | WB30X5141 | Element Radiant (1400w) |
|
- | |||||
| 56 | WB30K5033 | Haliant Element-1500w |
|
- | |||||
| 58 | WB30X5145 | Element Radiant (1900w) |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 60 | WB23X5093 | Sw Thermal (1400w) Rad |
|
- | |||||
| 60 | WB24X5335 | Switch Thermal (1900w) |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 353 | WB2X8320 | Clip Window |
|
- | |||||
| 684 | WZ04X0417 | Screw |
|
- | |||||
| 711 | WB2X8555 | Bracket Hot Light |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 999 | WB6K5036 | Razor Blade Scraper |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- | |||||
| 32767 | 49-8685 | Pm Manual Use & Care |
|
- | |||||
| 32767 | WB18X5136 | Harness |
|
- | |||||
| 32767 | 31-20218 | Pm Manual Mini |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 340732 | Tape |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- |
