SELECT A DIAGRAM

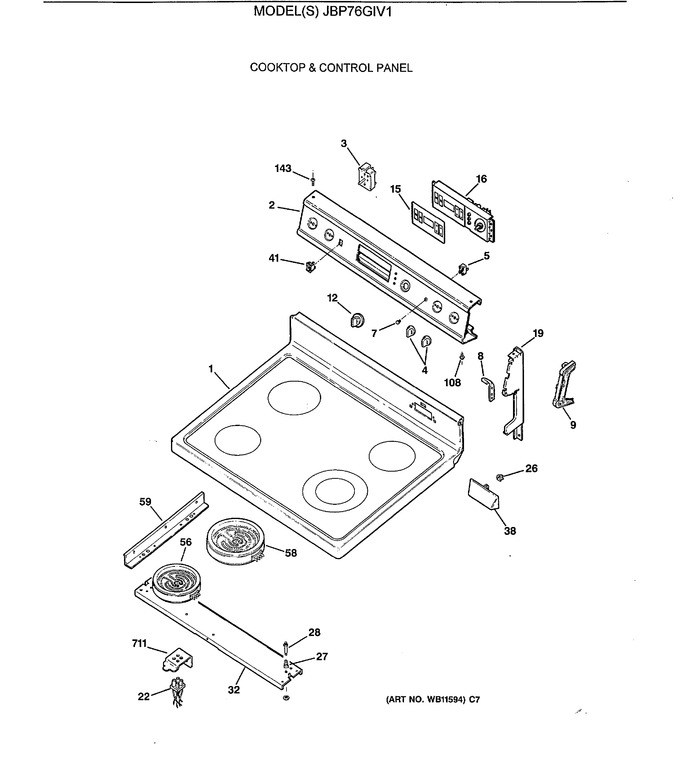

1 - Cooktop & Control Panel


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5468		Rangetop & Glass Asm		Appelez-nous	-
2	WB36X5753		Trim Bracket Asm		Appelez-nous	-
3	5500-200		Switch, Inf Surfac Unit   (Replaces: WB21X5243)			Immediately	$ 60.94
4	WB3X5830		Knob (white/red Stripe)		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB2X8126		Pin Hinge R		Appelez-nous	-
8	WB2X8127		Pin Hinge L		Appelez-nous	-
9	WB7X7144		Cap End Rh Wh		Appelez-nous	-
9	WB7X7143		Cap End Lh Wh		Appelez-nous	-
12	WB3X5831		Knob Thermo - Oven Set		Appelez-nous	-
15	WB27X5565		Faceplate		Appelez-nous	-
16	WB9X5121		Spring Detent		Appelez-nous	-
16	WB27X5581		Control T08		Appelez-nous	-
16	WB2X8324		Cam Dual		Appelez-nous	-
16	WB2X8268		Nut		Appelez-nous	-
19	WB7X7268		Plate End Rh Wh		Appelez-nous	-
19	WB7X7269		Plate End Lh Wh		Appelez-nous	-
22	WB8X5118		Indicator Hot Surface		Appelez-nous	-
26	WB2X8312		Clip Vent Trim		Appelez-nous	-
27	WB9X5119		Spring Heater Mtg		Appelez-nous	-
28	WB2X8377		Stud Heater Mount		Appelez-nous	-
32	WB2X8556		Support Radiant Heater		Appelez-nous	-
38	WB7X7219		Vent Trim Clip Asm Wh		Appelez-nous	-
41	WB24X5323		Switch Rocker White		Appelez-nous	-
56	WB30K5033		Haliant Element-1500w		Appelez-nous	-
58	WB30K5031		Haliant Element 2000w		Appelez-nous	-
59	WB2X8321		Brace Body		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5874		Screw 8-18 (wh)		Appelez-nous	-
684	WZ04X0417		Screw		Appelez-nous	-
711	WB2X8555		Bracket Hot Light		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
758	WB1K5050		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
999	WB6K5036		Razor Blade Scraper		Appelez-nous	-
1458	WB17X5073		Term Blk Asm-1 Pin(1458)		Appelez-nous	-
