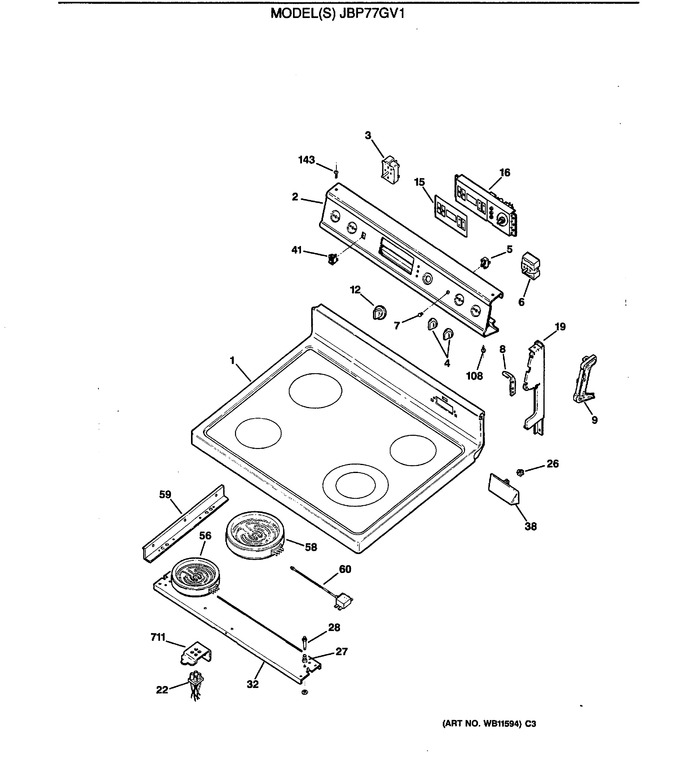

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5423 | Cooktop & Glass Asm |
|
- | |||||
| 2 | WB36X5752 | Trim & Bracket Asm Ad |
|
- | |||||
| 3 | WB23X5092 | Sw Inf. Control 6" Brnr |
|
- | |||||
| 4 | WB3X5816 | Knob - Almond |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 6 | WB23X5099 | Sw. Inf. Control 8" Brnr |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7228 | Cap End |
|
- | |||||
| 9 | WB7X7227 | Cap End |
|
- | |||||
| 12 | WB3X5817 | Knob (almond) |
|
- | |||||
| 15 | WB27X5566 | Faceplate (almond) |
|
- | |||||
| 16 | WB27X5579 | Control T08 |
|
- | |||||
| 16 | WB9X5121 | Spring Detent |
|
- | |||||
| 16 | WB2X8350 | Cam Dual |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 19 | WB7X7271 | End Plate Ad Lh |
|
- | |||||
| 19 | WB7X7270 | End Plate Ad Rh |
|
- | |||||
| 22 | WB8X5118 | Indicator Hot Surface |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 32 | WB2X8318 | Support Radiant Heater |
|
- | |||||
| 38 | WB7X7218 | Vent Trim & Clip Asm |
|
- | |||||
| 41 | WB24X5318 | Switch - Rocker Almond |
|
- | |||||
| 56 | WB30X5141 | Element Radiant (1400w) |
|
- | |||||
| 58 | WB30X5145 | Element Radiant (1900w) |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 60 | WB24X5335 | Switch Thermal (1900w) |
|
- | |||||
| 60 | WB23X5093 | Sw Thermal (1400w) Rad |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5902 | Scr 8-18 Ab Ovt 1/2 S Ad |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 684 | WZ04X0417 | Screw |
|
- | |||||
| 711 | WB2X8307 | Bracket Hot Light |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 999 | WB6K5036 | Razor Blade Scraper |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X8273 | Cleaner Glass |
|
- | |||||
| 32767 | 49-8562 | Pm Manual Use |
|
- | |||||
| 32767 | 31-20069 | Pm Manual Mini |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | 49-8554 | Tape Vcr |
|
- | |||||
| 32767 | WB18X5136 | Harness |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
