SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts

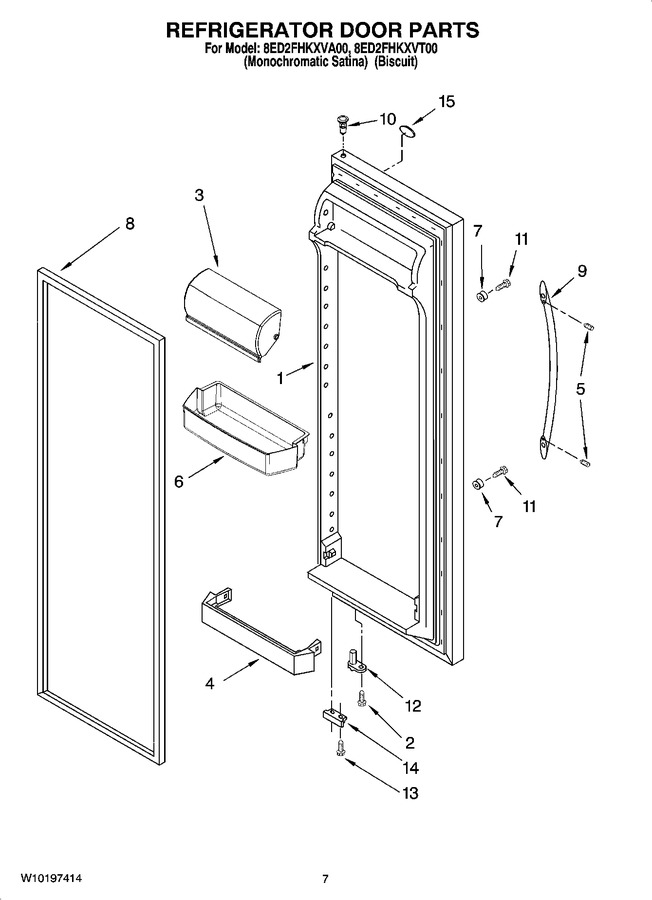

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2206826T		Refrigerator Door (includes Item 8) (biscuit)   (Replaces: 2309622T)		Appelez-nous	-
1	2309622LA		Refrigerator Door (includes Item 8) (mono Satina)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 15.79
6	WPW10321304		Door Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
7	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 333.19
8	W10136732		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327161)			Immediately	$ 361.20
9	2304413T		Handle (biscuit)		Appelez-nous	-
9	2254608S		Handle (stainless)		Appelez-nous	-
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
11	WP488163		Screw   (Replaces: 488208)				$ 7.92
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2321218AP		Bracket, Door Stop (apollo Grey)		Appelez-nous	-
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
15	2205769		Nameplate (biscuit)		Appelez-nous	-
15	2220214		Nameplate (gold Medallion)				$ 32.43

    View Diagram in Separate Window       Print Part List
