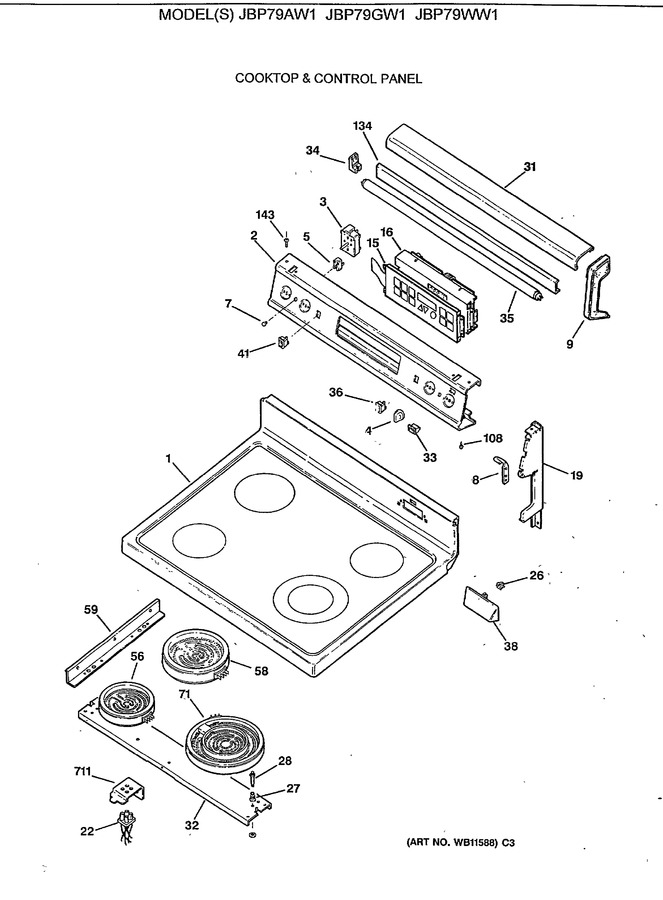

1 - Cooktop & Control Panel
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5465 | Rangetop & Glass Asm Ad |
|
- | |||||
| 2 | WB36X5780 | Trim & Bracket Asm Ad |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5816 | Knob - Almond |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7234 | Cap End Lamp Lh |
|
- | |||||
| 9 | WB7X7233 | Cap End Lamp Rh |
|
- | |||||
| 15 | WB27X5575 | Keypanel Erc2 |
|
- | |||||
| 16 | WB27X5572 | Control Eltn Ovn(erciic) |
|
- | |||||
| 19 | WB7X7271 | End Plate Ad Lh |
|
- | |||||
| 19 | WB7X7270 | End Plate Ad Rh |
|
- | |||||
| 22 | WB8X5115 | Indicator Hot Surface |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 31 | WB7X7236 | Lamp Cover Ad |
|
- | |||||
| 32 | WB2X8556 | Support Radiant Heater |
|
- | |||||
| 33 | WB24X5319 | Switch Coil Radiant |
|
- | |||||
| 34 | WB8X5098 | "f" Lamp Socket Rh & Lh |
|
- | |||||
| 35 | WB2X4666 | Fluorescent Light Bulb |
|
- | |||||
| 36 | WB24X5320 | Switch Lamp |
|
- | |||||
| 38 | WB7X7218 | Vent Trim & Clip Asm Ad |
|
- | |||||
| 41 | WB24X5318 | Switch - Rocker Almond |
|
- | |||||
| 56 | WB30K5033 | Haliant Element-1500w |
|
- | |||||
| 58 | WB30K5031 | Haliant Element-2000w |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 71 | WB30K5032 | Haliant Element-2500w |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 134 | WB7K40 | Shield Lamp |
|
- | |||||
| 143 | WB1X5902 | Scr 8-18 Ab Ovt 1/2 S Ad |
|
- | |||||
| 711 | WB2X8555 | Bracket Hot Light |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 999 | WB6K5036 | Razor Blade Scraper |
|
- | |||||
| 1458 | WB1X5968 | Nut 10-32 Nickle Plate |
|
- | |||||
| 1458 | WB1X5967 | Screw Asm.- Terminal Blk |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | 31-20219 | Pm Manual Mini |
|
- | |||||
| 32767 | 49-8731 | Pm Manual Use & Care |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
