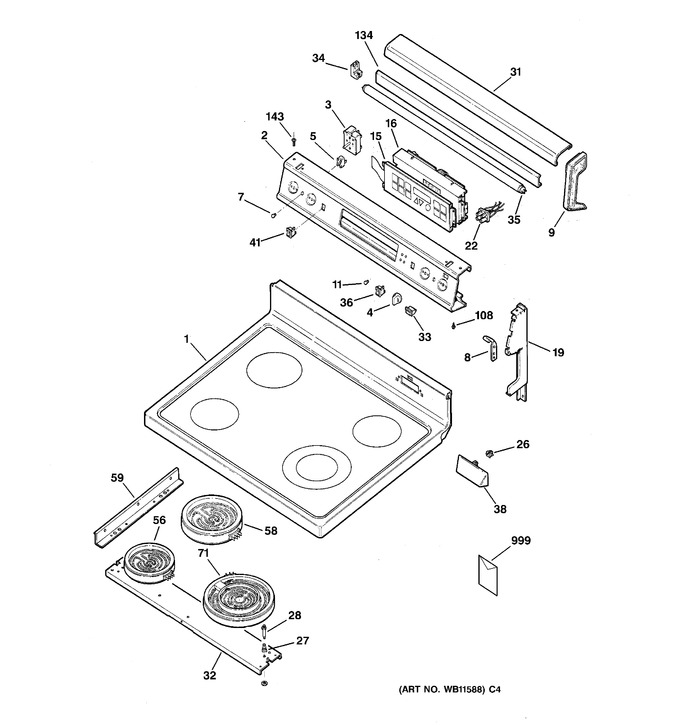

SELECT A DIAGRAM

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X10009		Rangetop & Glass Asm		Appelez-nous	-
2	WB36X10048		Trim & Bracket Asm		Appelez-nous	-
3	5500-200		Switch, Inf Surface 9"   (Replaces: WB21X5243)			Immediately	$ 60.94
3	WB23X5099		Sw. Inf. Control 8" Brnr		Appelez-nous	-
3	WB23X5092		Sw Inf. Control 6" Brnr		Appelez-nous	-
4	WB03X10038		Knob		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB02X10486		Pin Hinge L		Appelez-nous	-
8	WB02X10485		Pin Hinge R		Appelez-nous	-
9	WB07X10156		Cap End Lamp		Appelez-nous	-
9	WB07X10155		Cap End Lamp		Appelez-nous	-
11	WB02X10509		Lens		Appelez-nous	-
15	WB27X10061		Faceplate		Appelez-nous	-
16	WB27X10020		Control Erc Iii B		Appelez-nous	-
19	WB7X7271		Plate End Lh Ad		Appelez-nous	-
19	WB7X7270		Plate End Rh Ad		Appelez-nous	-
22	WB02X10508		Lamp Pilot		Appelez-nous	-
26	WB2X8312		Clip Vent Trim		Appelez-nous	-
27	WB9X5119		Spring Heater Mtg		Appelez-nous	-
28	WB2X8377		Stud Heater Mount		Appelez-nous	-
31	WB07X10157		Cover Lamp		Appelez-nous	-
32	WB2X8556		Support Radiant Heater		Appelez-nous	-
33	WB24X5319		Switch Coil Radiant		Appelez-nous	-
34	WB8X5098		"f" Lamp Socket Rh Lh		Appelez-nous	-
35	WB2X4666		Fluorescent Light Bulb		Appelez-nous	-
36	WB24X5320		Switch Lamp		Appelez-nous	-
38	WB7X7218		Vent Trim Clip Asm Ad		Appelez-nous	-
41	WB24X5318		Switch - Rocker Almond		Appelez-nous	-
56	WB30K5033		Haliant Element-1500w		Appelez-nous	-
58	WB30K5031		Haliant Element 2000w		Appelez-nous	-
59	WB2X8321		Brace Body		Appelez-nous	-
71	WB30K5032		Haliant Element-2500w		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
134	WB7K40		Shield Lamp		Appelez-nous	-
143	WB1X5902		Screw (ad)		Appelez-nous	-
999	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
999	31-0824		Install Instr (anti-tip)		Appelez-nous	-
999	31-20705		Pm Manual Mini		Appelez-nous	-
999	49-8827		Pm Manual Use & Care		Appelez-nous	-
999	WB64X93		Cleaner Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
