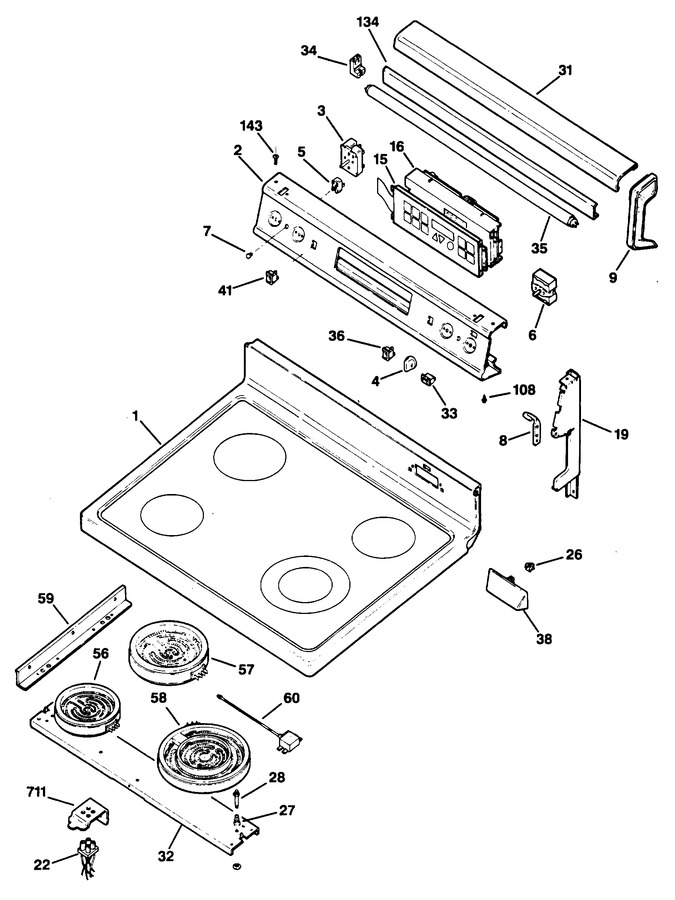

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5445 | Rangetop & Glass Asm Wh |
|
- | |||||
| 2 | WB36X5781 | Trim & Bracket Asm - Wh |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 3 | WB23X5092 | Sw Inf. Control 6" Brnr |
|
- | |||||
| 4 | WB3X5830 | Knob (white/red Stripe) |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 6 | WB23X5099 | Sw. Inf. Control 8" Brnr |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7199 | Cap End Lamp Rh Wh |
|
- | |||||
| 9 | WB7X7200 | Cap End Lamp Lh Wh |
|
- | |||||
| 15 | WB27X5574 | Keypanel Erc2 - Wh |
|
- | |||||
| 16 | WB27X5572 | Control Eltn Ovn(erciic) |
|
- | |||||
| 19 | WB7X7268 | Plate End Wh Rh |
|
- | |||||
| 19 | WB7X7269 | Plate End Wh Lh |
|
- | |||||
| 22 | WB8X5122 | Indicator Hot Surface |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 31 | WB7X7134 | Lamp Cover White |
|
- | |||||
| 32 | WB2X8318 | Support Radiant Heater |
|
- | |||||
| 33 | WB24X5321 | Switch Coil Radiant |
|
- | |||||
| 34 | WB8X5098 | "f" Lamp Socket Rh & Lh |
|
- | |||||
| 35 | WB2X4666 | Fluorescent Light Bulb |
|
- | |||||
| 36 | WB24X5263 | Switch-rocker Lamp |
|
- | |||||
| 38 | WB7X7219 | Vent Trim & Clip Asm |
|
- | |||||
| 41 | WB24X5323 | Switch Rocker White |
|
- | |||||
| 56 | WB30K5033 | Haliant Element-1500w |
|
- | |||||
| 57 | WB30K5031 | Haliant Element-2000w |
|
- | |||||
| 58 | WB30K5032 | Haliant Element-2500w |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 134 | WB7K40 | Shield Lamp |
|
- | |||||
| 143 | WB1X5874 | Screw End Cap White |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 350 | WB55X5382 | Inner Panel |
|
- | |||||
| 396 | WB1X5909 | Screw - Door Asm (2 Per) |
|
- | |||||
| 397 | WG02F04133 | End Cap Door White (Replaces: WB7X7187) |
|
$ 19.06 | |||||
| 397 | WB7X7188 | End Cap Door White |
|
- | |||||
| 682 | WB1K5186 | Screw |
|
- | |||||
| 684 | WZ04X0417 | Screw |
|
- | |||||
| 711 | WB2X8307 | Bracket Hot Light |
|
- | |||||
| 741 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 999 | WB6K5036 | Razor Blade Scraper |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- | |||||
| 32767 | 31-20082 | Pm Manual Mini |
|
- | |||||
| 32767 | 340732 | Tape |
|
- | |||||
| 32767 | 49-8554 | Tape Vcr |
|
- | |||||
| 32767 | 49-8590 | Pm Manual Use & Care |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X8273 | Cleaner Glass |
|
- |
