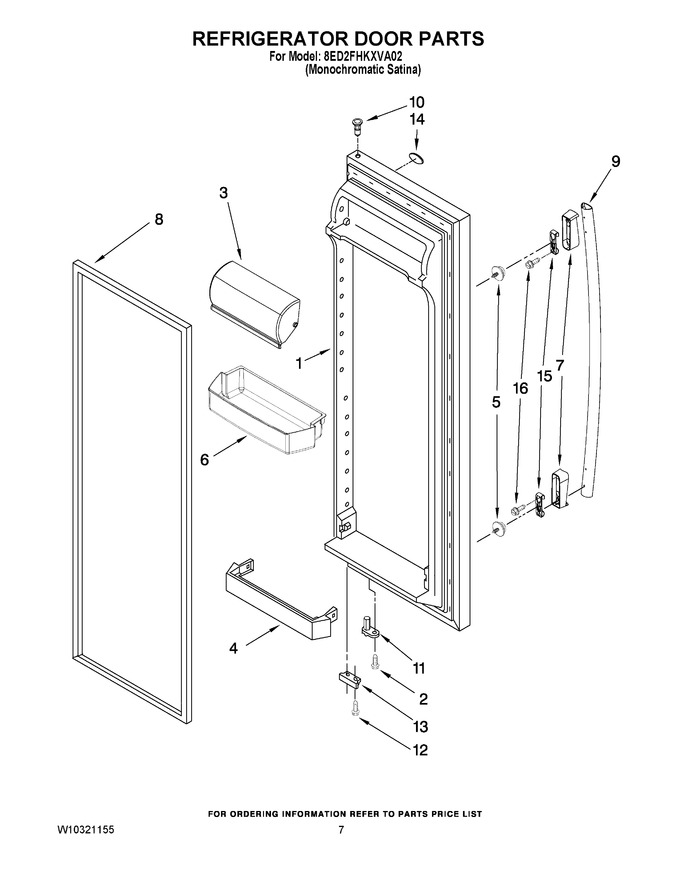

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309622LA | Refrigerator Door (includes Item No.8) (mono Satina) |
|
- | |||||
| 2 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 4 | WP2309941 | Trivet, Shelf (Replaces: 2309941) |
|
Immediately | $ 68.69 | ||||
| 5 | WPW10288153 | Stud, Handle (Replaces: W10129563) |
|
Immediately | $ 8.69 | ||||
| 6 | WPW10321304 | Door Bin (3) (Replaces: 2304235) |
|
Immediately | $ 40.46 | ||||
| 7 | W10127772 | Endcap, Handle |
|
$ 49.75 | |||||
| 8 | W10136732 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2327161) |
|
Immediately | $ 325.08 | ||||
| 9 | WPW10257118K | Handle, Center (Replaces: W10257118) |
|
$ 177.29 | |||||
| 10 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 11 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 13 | W10185570 | Bracket, Door Stop |
|
$ 11.59 | |||||
| 14 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 15 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 32.90 | |||||
| 16 | W10267047 | Screw (Replaces: W10201588) |
|
$ 12.12 |
