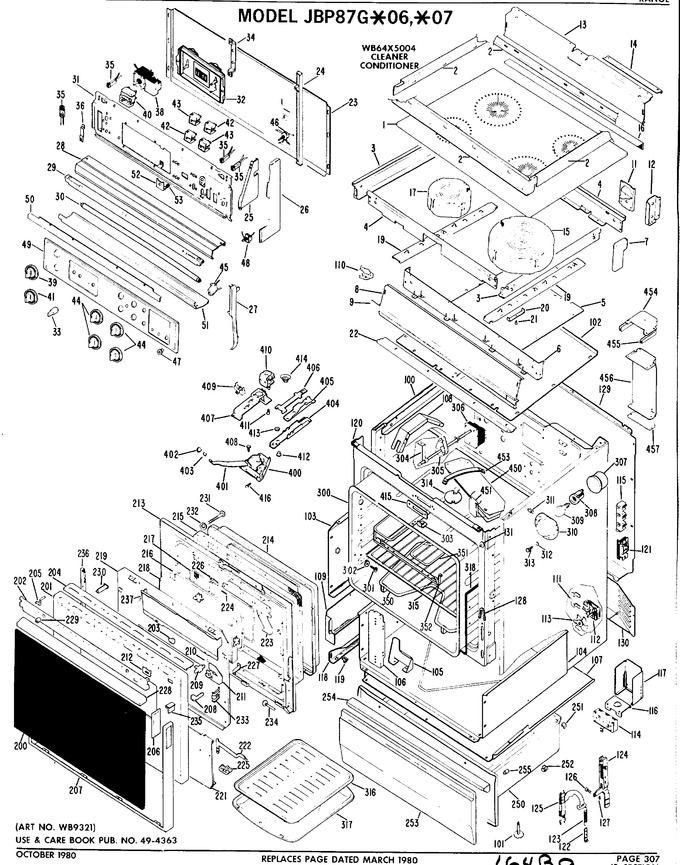

SELECT A DIAGRAM

1 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X1384		Panel Cook		Appelez-nous	-
2	WB7X5650		Frame Side Rh		Appelez-nous	-
2	WB2X3235		Clip Mtg. Frame To Can		Appelez-nous	-
2	WB7X5651		Frame Side Lh		Appelez-nous	-
2	WB7X5652		Frame Front		Appelez-nous	-
2	WZ04X0289		Scr 8-18 Ab Hx 1/4 S		Appelez-nous	-
2	WZ04X0368		Scr 8-18 B Hxw 1/2 S		Appelez-nous	-
2	WZ06X0092		Scr 8-18 Ab Hx 1/2 S		Appelez-nous	-
2	WB7X5653		Frame Rear		Appelez-nous	-
3	WB49X343		Can Side Rh - Lh		Appelez-nous	-
3	WB2X3232		Pad		Appelez-nous	-
4	WB49X344		Can Front - Back		Appelez-nous	-
4	WZ04X0231		Screw Mt. Side		Appelez-nous	-
4	WB2X3232		Pad		Appelez-nous	-
5	WB49X5167		Cover Bottom		Appelez-nous	-
5	WZ04X0231		Screw Mt. Side		Appelez-nous	-
6	WZ04X0231		Screw Mt. Side		Appelez-nous	-
6	WB49X345		Support Front		Appelez-nous	-
7	WB7X1095		End Cap-rh		Appelez-nous	-
7	WB7X1096		End Cap-lh		Appelez-nous	-
7	WZ05X0134		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
8	WB7X1097		Trim Front		Appelez-nous	-
8	WZ05X0134		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
9	WB7X1098		Insert Trim		Appelez-nous	-
11	WZ04X0231		Screw Mt. Side		Appelez-nous	-
11	WB2X3224		Support Rear		Appelez-nous	-
12	WB2X3226		Support Backsplasher-lh		Appelez-nous	-
12	WB2X3225		Support Backsplasher-rh		Appelez-nous	-
12	WZ04X0231		Screw Mt. Side		Appelez-nous	-
13	WB56X5767		Panel Backsplasher Ad		Appelez-nous	-
13	WB56X5763		Panel Backsplasher Wh		Appelez-nous	-
13	WB56X5765		Panel Backsplasher Fa		Appelez-nous	-
13	WB56X5764		Panel Backsplasher Cf		Appelez-nous	-
13	WB56X5766		Panel Backsplasher Ha		Appelez-nous	-
14	WB49X298		Guard Wire		Appelez-nous	-
14	WZ04X0231		Screw Mt. Side		Appelez-nous	-
15	WB30X5063		371d876g005		Appelez-nous	-
15	WB30X5065		Unit Large		Appelez-nous	-
15	WB18X5050		Wb18x5056		Appelez-nous	-
16	WB7X5654		Trim Cooktop Rear		Appelez-nous	-
16	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
17	WB30X5064		371d719g005		Appelez-nous	-
17	WB18X5050		Wb18x5056		Appelez-nous	-
19	WB1X528		Speednut		Appelez-nous	-
19	WZ04X0231		Screw Mt. Side		Appelez-nous	-
19	WB2X3233		Support Unit		Appelez-nous	-
20	WB2X6337		Spring Mtg. Support		Appelez-nous	-
21	WZ04X0231		Screw Mt. Side		Appelez-nous	-
22	WB7X1100		Deflector		Appelez-nous	-
22	WZ06X0038		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
23	WZ04X0231		Screw Mt. Side		Appelez-nous	-
23	WB49X337		Cover Back		Appelez-nous	-
24	WB2X6499		Post Asm Lh		Appelez-nous	-
24	WB2X6498		Post Asm Rh		Appelez-nous	-
25	WZ04X0231		Screw Mt. Side		Appelez-nous	-
25	WB2X2984		Bracket End Cap Rh		Appelez-nous	-
25	WB2X2985		Bracket End Cap Lh		Appelez-nous	-
26	WZ04X0231		Screw Mt. Side		Appelez-nous	-
26	WB7X969		Trim Side Rh		Appelez-nous	-
26	WB7X970		Trim Side Lh		Appelez-nous	-
27	WB7X1092		End Cap-lh		Appelez-nous	-
27	WZ04X0333		Screw 8-18x3/8 B Hxw		Appelez-nous	-
27	WB7X1091		End Cap-rh		Appelez-nous	-
28	WB7X977		Hood Lamp		Appelez-nous	-
28	WZ04X0349		Screw		Appelez-nous	-
29	WZ04X0231		Screw Mt. Side		Appelez-nous	-
29	WB2X2992		Bracket Hood		Appelez-nous	-
31	WB2X2989		Bracket Instrument		Appelez-nous	-
32	WB19M160CP		Timer   (Replaces: WB19X143)		Appelez-nous	-
32	WB1X540		Nut		Appelez-nous	-
33	WB3X459		Knob Timer		Appelez-nous	-
34	WB2X3231		Bracket Timer		Appelez-nous	-
34	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
35	WB2X1609		Lamp, Indicator		Appelez-nous	-
35	WB2X1608		Neon Lamp 118v				$ 31.65
36	WB2X2979		Clip Lamp		Appelez-nous	-
38	WB2X6450		Sleeve		Appelez-nous	-
38	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
38	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
38	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
39	WB3X493		Knob Thermostat		Appelez-nous	-
40	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
40	WB22X5090		Switch, Oven		Appelez-nous	-
41	WB3X479		Knob Oven Switch		Appelez-nous	-
42	WB2X6494		Barrier		Appelez-nous	-
42	WB21X239		Switch, Inf Surface Unit		Appelez-nous	-
42	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
43	WB21X239		Switch, Inf Surface Unit		Appelez-nous	-
43	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
43	WB2X1406		Clamp Harness		Appelez-nous	-
43	WB2X6494		Barrier		Appelez-nous	-
44	WB3X486		Knob Surface Units		Appelez-nous	-
45	WB8X188		Lampholder		Appelez-nous	-
45	WZ04X0218		Scr 6-20 Ab Ph 3/8 S		Appelez-nous	-
46	WB1X588		Lockwasher Switch		Appelez-nous	-
46	WB24X5048		Switch, "f" Lamp		Appelez-nous	-
47	WB1X5373		Nut-knurled Trim		Appelez-nous	-
48	WB24X155		Switch Latch Release		Appelez-nous	-
48	WB1X349		Lockwasher		Appelez-nous	-
49	WB36X507		Crystal Control		Appelez-nous	-
49	WB2X3232		Pad		Appelez-nous	-
50	WZ04X0372		Scr 6-20 Ab Hxw 3/8 S		Appelez-nous	-
50	WB7X976		Trim Crystal		Appelez-nous	-
51	WB7X1093		Trim Lower		Appelez-nous	-
51	WZ05X0187		Scr 8-32 T Ovr 1/2 S		Appelez-nous	-
52	WB2X2990		Bracket Trim		Appelez-nous	-
52	WZ04X0231		Screw Mt. Side		Appelez-nous	-
53	WB1X542		Speednut		Appelez-nous	-
100	WB2X1742		Clamp Harness		Appelez-nous	-
100	WZ04X0231		Screw Mt. Side		Appelez-nous	-
100	WB2X3229		Barrier Bakeunit Opening		Appelez-nous	-
101	WB1X450		Leg Leveling		Appelez-nous	-
102	WZ04X0231		Screw Mt. Side		Appelez-nous	-
102	WB63X239		Guard Top Insulation		Appelez-nous	-
103	WB49X5171		Guard Upper-rh (06)		Appelez-nous	-
103	WB49X5223		Pan Bottom		Appelez-nous	-
103	WB49X5222		Guard Upper Lh		Appelez-nous	-
103	WB49X5172		Guard Upper-lh (06)		Appelez-nous	-
103	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
104	WZ04X0231		Screw Mt. Side		Appelez-nous	-
104	WB49X5156		Guard Lower		Appelez-nous	-
105	WB2X6187		Support Oven		Appelez-nous	-
106	WB2X6768		Panel Filler		Appelez-nous	-
106	WZ04X0231		Screw Mt. Side		Appelez-nous	-
107	WZ04X0231		Screw Mt. Side		Appelez-nous	-
107	WB49X5094		Cover Plenum		Appelez-nous	-
108	WB49X5093		Baffle Hinge		Appelez-nous	-
109	WZ04X0231		Screw Mt. Side		Appelez-nous	-
109	WB2X6188		Air Cover Rh		Appelez-nous	-
109	WB2X6189		Air Cover Lh		Appelez-nous	-
110	WZ04X0231		Screw Mt. Side		Appelez-nous	-
110	WB24X208		Switch Latch Release		Appelez-nous	-
111	WZ04X0231		Screw Mt. Side		Appelez-nous	-
111	WB2X6190		Bracket Fan		Appelez-nous	-
112	WZ05X0173		Screw Mtg. Motor To Brac		Appelez-nous	-
112	WB26X5015		Wb26x5052		Appelez-nous	-
113	WB2X2285		Blade Fan		Appelez-nous	-
113	WB2X2002		Compression Ring		Appelez-nous	-
114	WZ04X0231		Screw Mt. Side		Appelez-nous	-
114	WB2X646		Plate Ground		Appelez-nous	-
114	WZ04X0348		Scr 10-16 B Sl 1-1/8 S		Appelez-nous	-
114	WB17X168		Terminal Block-power		Appelez-nous	-
115	WZ04X0384		Screw Mtg End Cap		Appelez-nous	-
115	WB17X167		Block Term Distribution		Appelez-nous	-
116	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.97
116	WB2X6191		Bracket Knockout		Appelez-nous	-
117	WB2X6655		Cover Terminal Block		Appelez-nous	-
117	WZ04X0232		Scr 8-18 Ab Hxs 3/8 S		Appelez-nous	-
118	WB39X5011		Guide Drawer Rh		Appelez-nous	-
118	WZ04X0231		Screw Mt. Side		Appelez-nous	-
118	WB39X5010		Guide Drawer Lh		Appelez-nous	-
119	WB2X831		Slide Guide		Appelez-nous	-
120	WB56X1296		Frame		Appelez-nous	-
120	WB56X5863		Front Frame (07 - Up)		Appelez-nous	-
120	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
120	WB2X3240		Spacer		Appelez-nous	-
121	WB2X1546		Ballast		Appelez-nous	-
121	WZ04X0231		Screw Mt. Side		Appelez-nous	-
122	WB2X2506		Hook Door Spring		Appelez-nous	-
123	WB9X5076		Spring Door		Appelez-nous	-
124	WB10X5091		Support Hinge Lh		Appelez-nous	-
124	WB1X119		Washer Contoured		Appelez-nous	-
124	WB1X5471		Scr 8-18 Ab T 15/32 S		Appelez-nous	-
124	WB1X5497		Scr 10-16 Ab Ihw 1/2 S		Appelez-nous	-
124	WB10X5090		Support Hinge Rh		Appelez-nous	-
125	WB10X5092		Hinge Lever Asm Rh Lh		Appelez-nous	-
126	WG02A00596		Pin Hinge Door   (Replaces: WB2X6195)				$ 4.20
127	WB2X1082		Ring Retaining		Appelez-nous	-
128	WB2X6342		Guide Hinge Lever		Appelez-nous	-
129	WB49X5161		Cover Back		Appelez-nous	-
129	WZ04X0231		Screw Mt. Side		Appelez-nous	-
130	WB2X6200		Cover Fan		Appelez-nous	-
130	WZ04X0231		Screw Mt. Side		Appelez-nous	-
131	WB24X105		Switch		Appelez-nous	-
131	WB2X2954		Sleeve		Appelez-nous	-
200	WB36X5379		Glass Black		Appelez-nous	-
201	WB56X5678		Panel Door		Appelez-nous	-
201	WB2X6546		Insulation Door		Appelez-nous	-
202	WB7X5623		Trim Door		Appelez-nous	-
203	WB2X3053		Clip Mtg Door Trims		Appelez-nous	-
204	WB7X5630		Trim Top		Appelez-nous	-
205	WB2X6575		Clip Trim		Appelez-nous	-
206	WB2X6573		Pad Trim		Appelez-nous	-
207	WB7X5625		Trim Door		Appelez-nous	-
207	WZ04X0231		Screw Mt. Side		Appelez-nous	-
208	WB2X6574		Clip-trim Door		Appelez-nous	-
209	WB2X3052		Toggle		Appelez-nous	-
210	WB2X5217		Cam Link		Appelez-nous	-
211	WB9X5083		Cam Spring		Appelez-nous	-
212	WB7X5624		Trim Toggle		Appelez-nous	-
213	WB55X5216		Lining Door		Appelez-nous	-
214	WB55X5210		Panel Inner		Appelez-nous	-
215	WB1X537		Screw		Appelez-nous	-
215	WB2X6547		Gasket Door		Appelez-nous	-
216	WB7X722		Trim Crystal		Appelez-nous	-
217	WB2X6232		Gasket Crystal		Appelez-nous	-
218	WB36X5244		Window		Appelez-nous	-
219	WZ04X0231		Screw Mt. Side		Appelez-nous	-
219	WB55X5218		Guard Insulation		Appelez-nous	-
221	WB55X5217		Shield Wind		Appelez-nous	-
222	WB15X143		Handle Shield Rh		Appelez-nous	-
222	WZ05X0134		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
222	WB15X144		Handle Shield Lh		Appelez-nous	-
223	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
223	WB2X3045		Cover - Guard Asm.		Appelez-nous	-
224	WB9X128		Spring - Guard		Appelez-nous	-
225	WZ05X0134		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
225	WZ04X0231		Screw Mt. Side		Appelez-nous	-
225	WB2X3040		Slide Shield		Appelez-nous	-
226	WB9X154		Strike Spring		Appelez-nous	-
226	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
227	WB2X638		Bracket Door		Appelez-nous	-
227	WZ04X0231		Screw Mt. Side		Appelez-nous	-
228	WB15X145		Handle		Appelez-nous	-
229	WB2X6243		Grommet Handle		Appelez-nous	-
230	WB2X6204		Spacer Panel		Appelez-nous	-
231	WZ04X0298		Screw Mtg Handle		Appelez-nous	-
232	WB1X119		Washer Contoured		Appelez-nous	-
233	WB2X6270		Spacer Door		Appelez-nous	-
234	WB1X558		Screw Nail Point		Appelez-nous	-
235	WB7X5631		Cap Trim		Appelez-nous	-
236	WB3X3042		Guide - Spring Asm.-rh		Appelez-nous	-
236	WZ04X0231		Screw Mt. Side		Appelez-nous	-
236	WB3X3041		Guide - Spring Asm.-lh		Appelez-nous	-
237	WB49X5173		Baffle Window		Appelez-nous	-
250	WB58X5005		Drawer Asm		Appelez-nous	-
251	WB2X840		Slide Top		Appelez-nous	-
252	WB2X841		Slide Bottom		Appelez-nous	-
253	WB56X5739		Drawer Panel Cf		Appelez-nous	-
253	WB56X5741		Drawer Panel Ha		Appelez-nous	-
253	WB56X5738		Drawer Panel Wh		Appelez-nous	-
253	WB56X5740		Drawer Panel Fa		Appelez-nous	-
253	WB56X5742		Drawer Panel Ad		Appelez-nous	-
254	WZ04X0209		Handle Screw		Appelez-nous	-
254	WB15X5121		Handle		Appelez-nous	-
255	WB2X6208		Bumper		Appelez-nous	-
300	WB2X3230		Cover Plate-jack		Appelez-nous	-
300	WB2X6496		Insulation		Appelez-nous	-
300	WB53X5070		Oven Liner		Appelez-nous	-
300	WB1X422		Scr 8-18 T Ihw 1/2 S		Appelez-nous	-
301	WB1X5471		Scr 8-18 Ab T 15/32 S		Appelez-nous	-
302	WB1X119		Washer Contoured		Appelez-nous	-
303	WB2X6209		Trim Clip		Appelez-nous	-
303	WB2X3156		Guard Asm		Appelez-nous	-
303	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
303	WZ04X0288		Scr 10-16 Ab Hxw 1/2s #8		Appelez-nous	-
305	WB2X3163		Gasket-tls				$ 22.50
305	WB2X3164		Plate		Appelez-nous	-
305	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
306	WB24X175		Switch, Thermal		Appelez-nous	-
307	WB2X6223		Guard Lamp		Appelez-nous	-
308	WB8X5060		Lampholder		Appelez-nous	-
310	WG02F04576		Lamp Cover Asm   (Replaces: WB36X192)				$ 20.65
311	WB2X1659		Speednut		Appelez-nous	-
312	WB2X1847		Washer Mt. Cover		Appelez-nous	-
313	WZ04X0361		Scr 8-18x5/8		Appelez-nous	-
314	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
314	WB2X1626		Baffle		Appelez-nous	-
315	WB48X5044		Oven Rack		Appelez-nous	-
316	WB48X5002		Broiler Pan Rack		Appelez-nous	-
317	WB49X88		Broil Pan		Appelez-nous	-
318	WB2X3253		Mullion Unit Clip		Appelez-nous	-
318	WB1X500		Terminal Screw		Appelez-nous	-
318	WB44X186		Mullion Unit		Appelez-nous	-
318	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
350	WB1X500		Terminal Screw		Appelez-nous	-
350	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
350	UB592		Bake Unit 208/240v   (Replaces: WB44X5082)			Immediately	$ 49.95
351	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
351	UT316		Broil Unit   (Replaces: WB44X185)			Immediately	$ 49.95
351	WB1X500		Terminal Screw		Appelez-nous	-
352	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
352	WB2X1810		Support Broil Unit		Appelez-nous	-
352	WB2X1543		Gasket - Broil		Appelez-nous	-
400	WB14X36		Latch Assembly		Appelez-nous	-
401	WB1X438		Screw Washer Asm		Appelez-nous	-
401	WB15X142		Handle		Appelez-nous	-
402	WB3X322		Knob Latch		Appelez-nous	-
403	WG02A00753		Retainer Knob   (Replaces: WB2X2030)				$ 4.20
404	WB2X3157		Channel Latch		Appelez-nous	-
405	WB2X3158		Channel Locking		Appelez-nous	-
406	WB2X3159		Locking Pawl Asm		Appelez-nous	-
407	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.97
407	WB2X3160		Plate-mounting		Appelez-nous	-
408	WZ04X0362		Screw 10-16 X 1/4" Hex		Appelez-nous	-
409	WZ04X0397		Scr 6-32 C Flr 5/16 S		Appelez-nous	-
409	WB24X183		Switch, Latch		Appelez-nous	-
410	WB24X5097		Solenoid		Appelez-nous	-
410	WB2X2954		Sleeve		Appelez-nous	-
411	WZ04X0374		Scr 10-32 Tt Hxw 1/4 S		Appelez-nous	-
412	WB2X6212		Pivot Stud		Appelez-nous	-
413	WB2X1800		Retainer Ring		Appelez-nous	-
414	WB9X148		Spring-plunger		Appelez-nous	-
415	WB7X552		Trim Latch		Appelez-nous	-
416	WZ02X0503		Screw		Appelez-nous	-
450	WB1X500		Terminal Screw		Appelez-nous	-
450	WB29X50		Smoke Eliminator Assembl		Appelez-nous	-
451	WB2X3388		Terminal Block		Appelez-nous	-
453	WZ04X0231		Screw Mt. Side		Appelez-nous	-
453	WB2X3227		Clamp		Appelez-nous	-
454	WZ04X0231		Screw Mt. Side		Appelez-nous	-
454	WB49X342		Cover Duct		Appelez-nous	-
455	WB2X3260		Gasket		Appelez-nous	-
455	WB1X523		Rivet Push Mtg. Gasket		Appelez-nous	-
456	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
456	WB38X73		Vent Assembly		Appelez-nous	-
457	WB2X3223		Seal Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
