SELECT A DIAGRAM

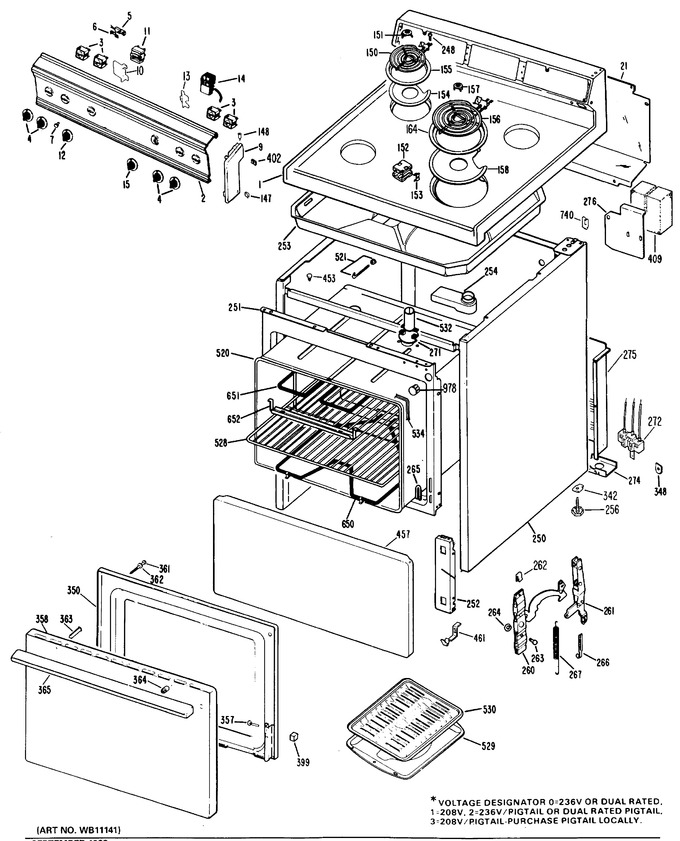

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1474 | Cooktop Wh |
|
- | |||||
| 1 | WB62X1478 | Cooktop Ad |
|
- | |||||
| 1 | WB62X1477 | Cooktop Ha |
|
- | |||||
| 2 | WB7X6908 | Trim Control |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5677 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip Mtg Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X6829 | End Cap Lh |
|
- | |||||
| 9 | WB7X6828 | End Cap Rh |
|
- | |||||
| 10 | WB2X7305 | Bracket Lh |
|
- | |||||
| 11 | WB22X5134 | Switch, Oven (Replaces: WB22X5022) |
|
- | |||||
| 12 | WB3X5680 | Knob Oven Switch |
|
- | |||||
| 13 | WB2X7306 | Bracket Rh |
|
- | |||||
| 14 | WB2X1394 | Sleeve |
|
- | |||||
| 14 | WB21X5208 | Thermostat |
|
- | |||||
| 15 | WB3X5679 | Knob Thermostat |
|
- | |||||
| 21 | WB49X390 | Cover Back |
|
- | |||||
| 147 | WB1X578 | Speednut Cap |
|
- | |||||
| 148 | WB1X5682 | Screw Shoulder |
|
- | |||||
| 148 | WS01A01408 | Screw (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 150 | WB30X359 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 153 | WB2X574 | Clip Insulator |
|
- | |||||
| 154 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 164 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 250 | NOT AVAIL | Body |
|
- | |||||
| 251 | WB56X6050 | Frame Front |
|
- | |||||
| 252 | WB49X5403 | Filler Panel Ad |
|
- | |||||
| 252 | WB49X5402 | Filler Panel Wh |
|
- | |||||
| 253 | WB49X5384 | Box Cooktop |
|
- | |||||
| 254 | WB38X50 | Vent Body |
|
- | |||||
| 256 | WB2X7701 | Leveling Leg |
|
- | |||||
| 260 | WB10X5148 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X148 | Hinge Support Rh |
|
- | |||||
| 261 | WB10X149 | Hinge Support Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X146 | Spring Door |
|
- | |||||
| 271 | WB2X1626 | Baffle |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB59X173 | Guard Terminal |
|
- | |||||
| 276 | WB49X392 | Cover Back |
|
- | |||||
| 342 | WB2X7700 | Retainer Leg |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB55X5291 | Door Liner |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB56X1401 | Door Panel Wh |
|
- | |||||
| 358 | WB56X1405 | Door Panel Ad |
|
- | |||||
| 358 | WB2X3140 | Insulation |
|
- | |||||
| 358 | WB56X1404 | Door Panel Ha |
|
- | |||||
| 361 | WZ04X0423 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X3245 | Spacer |
|
- | |||||
| 365 | WB15X5160 | Handle |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 409 | WB2X3470 | Counterweight |
|
- | |||||
| 453 | WB2X3394 | Plug Button |
|
- | |||||
| 457 | WB56X6079 | Panel Asm Wh |
|
- | |||||
| 457 | WB56X6080 | Panel Asm Ad |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 461 | WB2X3029 | Clip False Panel |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 520 | WB53X5097 | Oven Liner |
|
- | |||||
| 520 | WB2X3141 | Insulation |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X5379 | Broil Pan Small |
|
- | |||||
| 530 | WB48X47 | Broil Pan Rack Small |
|
- | |||||
| 532 | WB38X72 | Tube Vent |
|
- | |||||
| 534 | WB2X1522 | Gasket Silicone |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 740 | WB2X7226 | Clip Wire |
|
- | |||||
| 790 | WB1X365 | Speednut |
|
- | |||||
| 978 | WB2X1126 | Plug Button |
|
- | |||||
| 32767 | 31-0813 | Install Instructions |
|
- | |||||
| 32767 | 31-0811 | Install Instructions |
|
- | |||||
| 32767 | 49-4940 | Manual Users |
|
- | |||||
| 32767 | 31-0810 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- |
