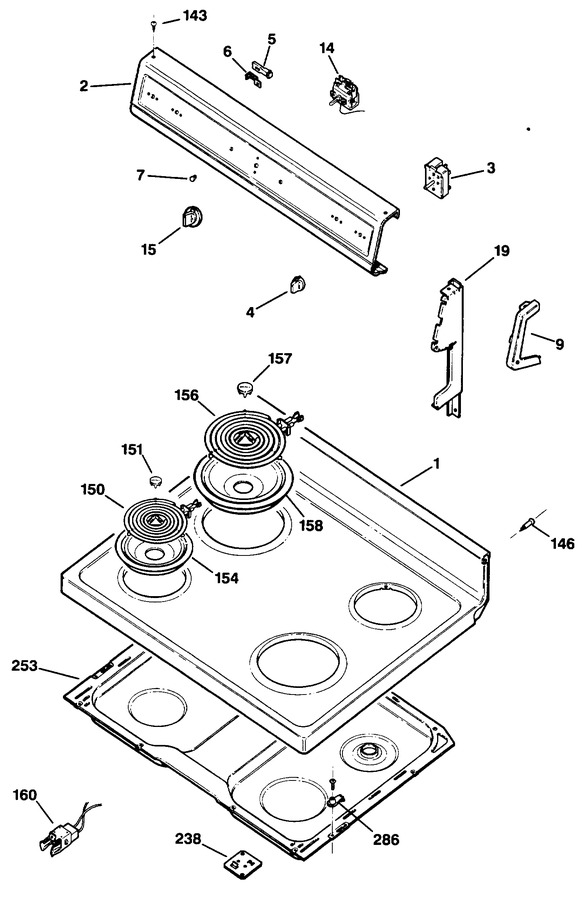

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5387		Cooktop Ad		Appelez-nous	-
1	WB62X5388		Cooktop Wh		Appelez-nous	-
2	WB7X7141		Trim Control		Appelez-nous	-
3	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X5243)			Immediately	$ 60.94
4	WB3X5775		Knob		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
7	WB25X65		Jewel		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
14	WB21X5304		Thermostat		Appelez-nous	-
14	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
15	WB3X5791		Oven Temp Knob		Appelez-nous	-
19	WB7X7133		End Plate L		Appelez-nous	-
19	WB7X7132		End Plate R		Appelez-nous	-
21	WB49X5496		Cover Back		Appelez-nous	-
56	WG02F05372		6" Surf Elem   (Replaces: WB30M1)			Immediately	$ 68.23
57	WB30M2		8" Surf Elem		Appelez-nous	-
108	WS01A01150		Screw   (Replaces: WB1X5364)				$ 3.97
143	WB1X5860		Screw		Appelez-nous	-
146	WB1X5832		Screw Shoulder		Appelez-nous	-
151	WB32X52		Center Trim 6" Unit		Appelez-nous	-
152	WB2X1351		Term Block Double Coil		Appelez-nous	-
154	WB32X5075		Burner Bowl 6"		Appelez-nous	-
157	WB32X51		Center Trim 8" Unit		Appelez-nous	-
158	WB32X5076		Burner Bowl 8"				$ 10.45
160	WB17X5113		Receptacle Asm		Appelez-nous	-
253	WB49X5499		Box Cooktop		Appelez-nous	-
254	WB1X549		Screw		Appelez-nous	-
285	WB2X8106		Cover Foot		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
336	WZ04X0423		Screw Handle		Appelez-nous	-
482	WB2X1126		Plug Button		Appelez-nous	-
528	WB48X5099		Rack Oven				$ 90.78
530	WB49X5093		Broiler Pan Rack		Appelez-nous	-
751	WB1X5550		Scr 8/32 Tf Flr 1/4 S		Appelez-nous	-
752	WZ04X0345		Screw		Appelez-nous	-
769	WB1X500		Screw		Appelez-nous	-
961	WB2X1185		Clip		Appelez-nous	-
32767	49-8323		Manual Users		Appelez-nous	-
32767	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
32767	31-0824		Install Instr (anti-tip)		Appelez-nous	-
