SELECT A DIAGRAM

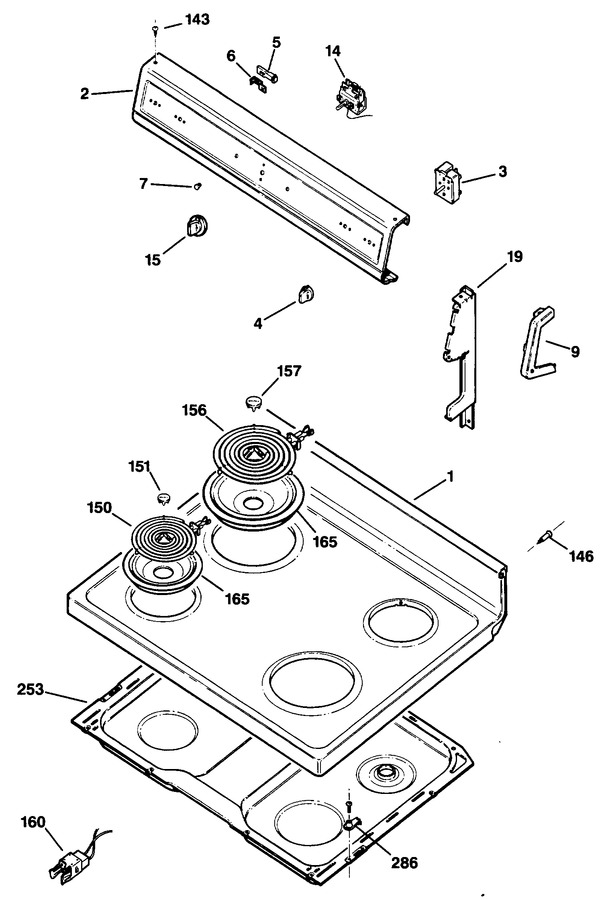

1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5387 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5388 | Cooktop Wh |
|
- | |||||
| 2 | WB7X7141 | Trim Control |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 54.85 | ||||
| 4 | WB3X5782 | Surface Unit Knob |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 24.55 | |||||
| 6 | WB2X1185 | Clip |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X7137 | End Cap Left |
|
- | |||||
| 9 | WB7X7136 | End Cap Right |
|
- | |||||
| 14 | WB21X5287 | Thermostat |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 15 | WB3X5791 | Oven Temp Knob |
|
- | |||||
| 19 | WB7X7133 | End Plate L |
|
- | |||||
| 19 | WB7X7132 | End Plate R |
|
- | |||||
| 146 | WB1X5832 | Screw Shoulder |
|
- | |||||
| 150 | WG02F05372 | 6" Surf Elem (Replaces: WB30M1) |
|
Immediately | $ 63.62 | ||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 156 | WB30M2 | 8" Surf Elem |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 160 | WB17X5113 | Receptacle Asm |
|
- | |||||
| 165 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 165 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 999 | 340732 | Tape |
|
- | |||||
| 32767 | 31-1048-B | Wiring Diagram |
|
- | |||||
| 32767 | 49-8323 | Manual Users |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- |
