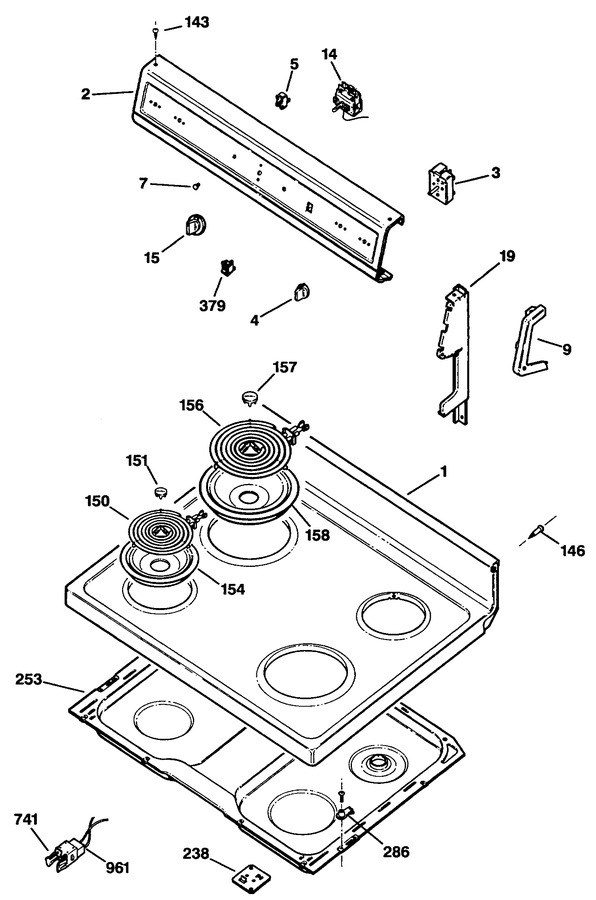

1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5408 | Cooktop White |
|
- | |||||
| 2 | WB7X7253 | Trim Control |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5782 | Surface Unit Knob |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 27.28 | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB1X5874 | Screw End Cap |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5304 | Thermostat |
|
- | |||||
| 15 | WB3X5809 | Thermostat Knob |
|
- | |||||
| 19 | WB7X7163 | Plate End White |
|
- | |||||
| 19 | WB7X7161 | Plate End White |
|
- | |||||
| 146 | WB1X5832 | Screw Shoulder |
|
- | |||||
| 150 | WB30X5121 | 6" Surface Element Asm |
|
- | |||||
| 151 | WB32X5089 | Trim Center |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30X5122 | 8" Surface Element Asm |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 272 | WB17X5123 | Block Terminal |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 302 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 303 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 360 | WB49X5522 | Guard Insulation |
|
- | |||||
| 376 | WB2X2978 | Clip Crystal |
|
- | |||||
| 377 | WB7X7069 | Trim Crystal |
|
- | |||||
| 379 | WB24X5290 | Switch |
|
- | |||||
| 400 | WB36X526 | Crystal Window |
|
$ 140.86 | |||||
| 440 | WB1X585 | Speednut |
|
- | |||||
| 523 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 961 | WB2X1185 | Clip |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 31-20013 | Manual Mini |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | 49-8486 | Manual Use & Care |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- |
