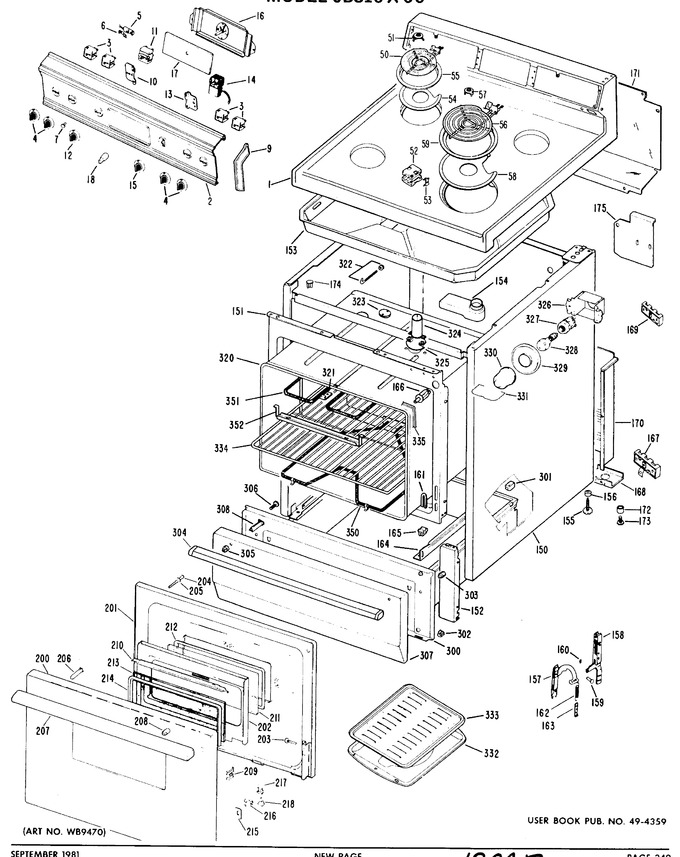

1 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X1476		Cooktop Fa		Appelez-nous	-
1	WZ06X0046		Screw - Mt. Top		Appelez-nous	-
1	WB62X1478		Cooktop Ad		Appelez-nous	-
1	WB62X1477		Cooktop Ha		Appelez-nous	-
1	WB2X797		Dot Fastener		Appelez-nous	-
1	WB62X1474		Cooktop Wh		Appelez-nous	-
1	WB62X1475		Cooktop Cf		Appelez-nous	-
2	WB7X1111		Trim Switch		Appelez-nous	-
2	WZ04X0237		Screw		Appelez-nous	-
3	WB2X6494		Barrier		Appelez-nous	-
3	WB1X573		Screw Mt. Sw.		Appelez-nous	-
3	WB21X5217		Switch Infinite Control		Appelez-nous	-
4	WB3X464		Knob Surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 24.55
6	WB2X1185		Clip Lamp		Appelez-nous	-
7	WB25X65		Jewel		Appelez-nous	-
9	WB7X1081		End Cap Rh		Appelez-nous	-
9	WB1X591		Speednut		Appelez-nous	-
9	WZ04X0414		Scr 8-18 Ab Ovr 1/2 S#6h		Appelez-nous	-
9	WZ04X0237		Screw		Appelez-nous	-
9	WB1X578		Speednut Cap		Appelez-nous	-
9	WB7X1082		End Cap Lh		Appelez-nous	-
10	WB2X3261		Bracket Lh		Appelez-nous	-
10	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.57
11	WB22X5134		Switch, Oven   (Replaces: WB22X5022)		Appelez-nous	-
11	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
12	WB3X468		Knob Oven Switch		Appelez-nous	-
13	WB2X3262		Bracket Rh		Appelez-nous	-
13	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.57
14	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
14	WB2X1394		Sleeve		Appelez-nous	-
14	WB21X5208		Thermostat Asm-up Ov		Appelez-nous	-
15	WB3X467		Knob Thermostat		Appelez-nous	-
16	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.57
16	WB19X154		Timer		Appelez-nous	-
17	WB36X485		Crystal Timer		Appelez-nous	-
17	WB2X2901		Clip Crystal		Appelez-nous	-
18	WB3X459		Knob Timer		Appelez-nous	-
50	WB30X342		Surface Unit, 6"		Appelez-nous	-
51	WB32X52		Center Trim 6" Unit		Appelez-nous	-
51	WB1X549		Screw (hex)		Appelez-nous	-
52	WB2X2398		Term Block Single Coil		Appelez-nous	-
52	WB2X1351		Term Block Double Coil		Appelez-nous	-
53	WB2X574		3 In 1 Insulator Clip		Appelez-nous	-
54	WB32X36		Unit Pan 6"		Appelez-nous	-
55	WB31X56		Trim Ring 6"		Appelez-nous	-
55	WB1X500		Terminal Screw		Appelez-nous	-
56	WB30X348		Surface Unit, 8"		Appelez-nous	-
56	WB1X549		Screw (hex)		Appelez-nous	-
57	WB32X51		Center Trim 8" Unit		Appelez-nous	-
58	WB32X34		Unit Pan 8"		Appelez-nous	-
59	WB31X55		Trim Ring 8"		Appelez-nous	-
59	WB2X995		Clip Lead		Appelez-nous	-
150	WB2X1742		Clamp Harness		Appelez-nous	-
150	WB2X3470		Counterweight		Appelez-nous	-
151	WB56X1349		Frame Front		Appelez-nous	-
152	WB49X322		Filler Panel		Appelez-nous	-
153	WB49X341		Box Cooktop		Appelez-nous	-
153	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.57
154	WB38X50		Vent Body		Appelez-nous	-
155	WB1X450		Leg Leveling		Appelez-nous	-
156	WB2X3386		Sleeve		Appelez-nous	-
157	WB10X147		Hinge Lever Asm		Appelez-nous	-
157	WB1X556		Scr 8-18 Ba Rt 7/16 S		Appelez-nous	-
158	WB10X149		Hinge Spt Lh		Appelez-nous	-
158	WB10X148		Hinge Spt Rh		Appelez-nous	-
159	WG02A00596		Pin Hinge Door   (Replaces: WB2X6195)				$ 4.20
160	WB2X3193		Clip Shim		Appelez-nous	-
160	WB2X1082		Ring Retaining		Appelez-nous	-
161	WB2X6342		Guide Hinge Lever		Appelez-nous	-
162	WB9X146		Spring Door		Appelez-nous	-
163	WB2X2506		Hook Door Spring		Appelez-nous	-
164	WB39X51		Drawer Guide Rh & Lh		Appelez-nous	-
165	WB2X831		Slide Guide		Appelez-nous	-
166	WB24X105		Switch		Appelez-nous	-
167	WZ04X0373		Screw Mt. Block		Appelez-nous	-
167	WB2X646		Plate Ground		Appelez-nous	-
167	WB17X168		Terminal Block-power		Appelez-nous	-
168	WB1X549		Screw (hex)		Appelez-nous	-
168	WB2X1908		Knockout Plate		Appelez-nous	-
169	WZ04X0394		Screw		Appelez-nous	-
169	WB17X167		Block Term Distribution		Appelez-nous	-
170	WB59X173		Guard Terminal		Appelez-nous	-
170	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.57
171	WB49X390		Cover Back		Appelez-nous	-
171	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.57
172	WB2X3330		Foot		Appelez-nous	-
173	WZ04X0394		Screw		Appelez-nous	-
174	WB2X3394		Plug Button		Appelez-nous	-
175	WS01A02255		Screw   (Replaces: WB1X536)				$ 3.57
175	WB49X391		Cover Light		Appelez-nous	-
200	WB56X1470		Door Panel Cf		Appelez-nous	-
200	WB56X1469		Door Panel Wh		Appelez-nous	-
200	WB56X1471		Door Panel Fa		Appelez-nous	-
200	WB56X1472		Door Panel Ha		Appelez-nous	-
200	WB56X1473		Door Panel Ad		Appelez-nous	-
200	WZ04X0413		Screw		Appelez-nous	-
200	WB2X3433		Insulation		Appelez-nous	-
201	WB55X383		Door Liner		Appelez-nous	-
202	WB1X590		Scr 8-32 Ca Hx 13/32 S		Appelez-nous	-
202	WB49X384		Guard Insulation		Appelez-nous	-
203	WB1X558		Screw Nail Point		Appelez-nous	-
204	WZ04X0385		Screw		Appelez-nous	-
205	WB1X119		Washer Contoured		Appelez-nous	-
206	WB2X6204		Spacer Panel		Appelez-nous	-
207	WB15X148		Handle		Appelez-nous	-
208	WB2X3245		Spacer		Appelez-nous	-
209	WB2X6270		Spacer Door		Appelez-nous	-
210	WB1X590		Scr 8-32 Ca Hx 13/32 S		Appelez-nous	-
210	WB2X3282		Clip Crystal		Appelez-nous	-
211	WB36X526		Crystal Window				$ 140.86
212	WB7X1031		Trim Crystal		Appelez-nous	-
213	WB36X430		Crystal Window		Appelez-nous	-
214	WB7X1031		Trim Crystal		Appelez-nous	-
215	WB7X5486		Trim		Appelez-nous	-
216	WB2X5410		Cam		Appelez-nous	-
217	WB9X5083		Cam Spring		Appelez-nous	-
218	WB2X5217		Cam Link		Appelez-nous	-
300	WB58X50		Drawer Asm		Appelez-nous	-
301	WB2X840		Slide Top		Appelez-nous	-
302	WB2X841		Slide Bottom		Appelez-nous	-
303	WB2X584		Bumper		Appelez-nous	-
304	WB15X148		Handle		Appelez-nous	-
305	WB1X560		Washer		Appelez-nous	-
306	WZ04X0395		Handle Screw		Appelez-nous	-
307	WB56X1396		Drawer Panel Wh		Appelez-nous	-
307	WB56X1399		Drawer Panel Ha		Appelez-nous	-
307	WB56X1398		Drawer Panel Fa		Appelez-nous	-
307	WB56X1397		Drawer Panel Cf		Appelez-nous	-
307	WB56X1400		Drawer Panel Ad		Appelez-nous	-
308	WB2X3387		Spacer Panel		Appelez-nous	-
320	WB2X3141		Insulation		Appelez-nous	-
320	WB53X226		Oven Liner		Appelez-nous	-
321	WB2X3393		Trim Clip		Appelez-nous	-
321	WZ06X0038		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
322	WB9X88		Lockwasher		Appelez-nous	-
323	WB2X818		Cover Vent		Appelez-nous	-
324	WB38X72		Tube Vent		Appelez-nous	-
325	WZ04X0321		Screw Mt. Baffle		Appelez-nous	-
325	WB2X1626		Baffle		Appelez-nous	-
326	WB2X3447		Bracket Support		Appelez-nous	-
327	WB8X191		Receptacle		Appelez-nous	-
329	WB2X3448		Trim Lamp		Appelez-nous	-
330	WG02F04576		Ov Lamp Lens   (Replaces: WB36X389)				$ 18.59
331	WB2X2885		Bail		Appelez-nous	-
332	WB49X88		Broil Pan		Appelez-nous	-
333	WB48X5002		Broiler Pan Rack		Appelez-nous	-
334	WB48X5044		Oven Rack		Appelez-nous	-
335	WB2X3246		Gasket, Silicone		Appelez-nous	-
350	UB592		Bake Unit 208/240v   (Replaces: WB44X5082)			Immediately	$ 44.96
351	UT316		Broil Unit   (Replaces: WB44X185)			Immediately	$ 44.96
352	WB2X1452		Support Broil		Appelez-nous	-
