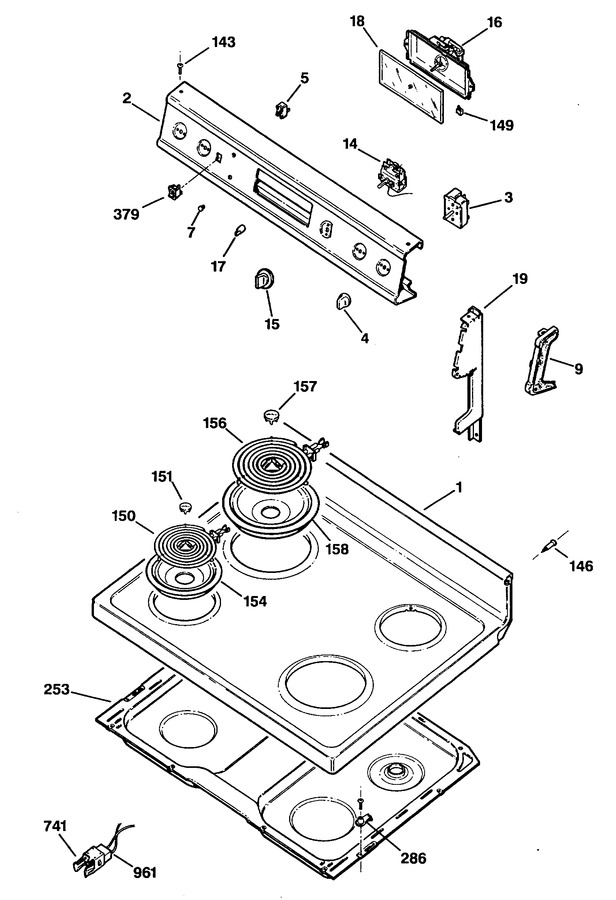

1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5408 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5409 | Cooktop Ad |
|
- | |||||
| 2 | WB36X5690 | Trim & Bracket Asm |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 14 | WB21X5287 | Thermostat |
|
- | |||||
| 15 | WB3X5791 | Oven Temp Knob |
|
- | |||||
| 16 | WB19X5305 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB36X5575 | Crystal Timer |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7161 | Plate End |
|
- | |||||
| 21 | WB49X5521 | Cover Back |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 146 | WB1X5832 | Screw Shoulder |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 154 | WB32X5075 | Burner Bowl 6" |
|
- | |||||
| 156 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5076 | Burner Bowl 8" |
|
$ 10.45 | |||||
| 253 | WB49X5499 | Box Cooktop |
|
- | |||||
| 254 | WB1X549 | Screw (hex) |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 302 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 303 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 379 | WB24X5290 | Switch |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 440 | WB1X585 | Speednut |
|
- | |||||
| 461 | WB1X593 | Screw |
|
- | |||||
| 521 | WB9X5118 | Hook Asm |
|
- | |||||
| 523 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 741 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 52.48 | ||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 961 | WB17X5121 | Recpt. Asm |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- |
