SELECT A DIAGRAM

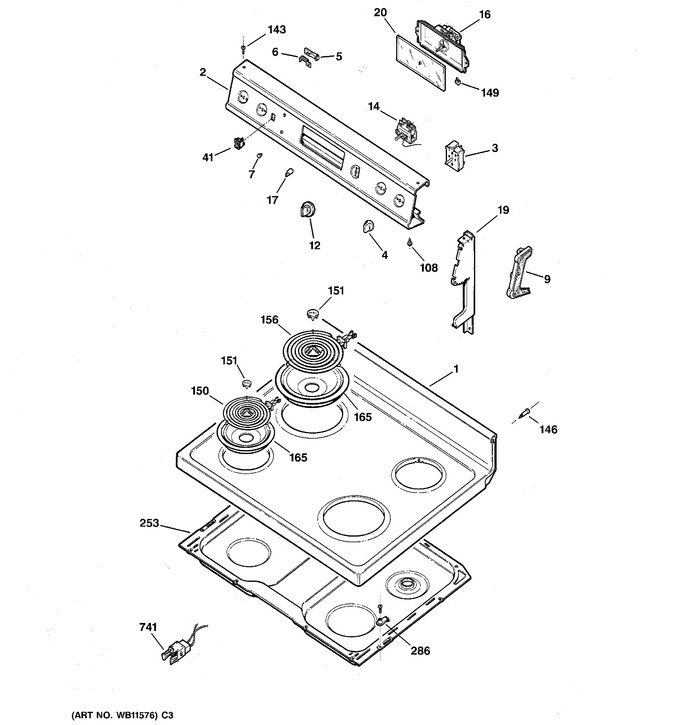

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5455		Range Top Asm - Wh		Appelez-nous	-
1	WB62X5403		Range Top Asm - Ad		Appelez-nous	-
2	WB36X5762		Trim & Bracket Asm		Appelez-nous	-
3	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X5243)			Immediately	$ 60.94
4	WB3X5834		Knob-surface Unit		Appelez-nous	-
5	WB2X1608		Ps Lamp Harn Neon 118v				$ 31.65
6	WB2X1185		Clip Lamp		Appelez-nous	-
7	WB25X65		Jewel		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
12	WB3X5839		Knob Thermo (black)		Appelez-nous	-
14	WB20X5071		Thermostat Top Heat Sp		Appelez-nous	-
16	WB19X5305		Timer (black)		Appelez-nous	-
17	WB3X5814		Knob Timer		Appelez-nous	-
19	WB7X7269		Plate End		Appelez-nous	-
19	WB7X7271		End Plate Ad Lh		Appelez-nous	-
19	WB7X7268		Plate End		Appelez-nous	-
19	WB7X7270		End Plate Ad Rh		Appelez-nous	-
20	WB36X5575		Crystal Timer		Appelez-nous	-
41	WB24X5347		Switch Oven Lamp		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
146	WB1X5832		Screw Shoulder		Appelez-nous	-
149	WB2X7702		Clip Crystal		Appelez-nous	-
150	WB30X5129		6" P.i. S/u Alum		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
156	WB30X5130		8" P.i. S/u Alum		Appelez-nous	-
165	WB32X5075		Burner Bowl 6" Chrome		Appelez-nous	-
165	WB32X5076		Burner Bowl 8" Chrome				$ 10.45
253	WB49X5566		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66

    View Diagram in Separate Window       Print Part List
