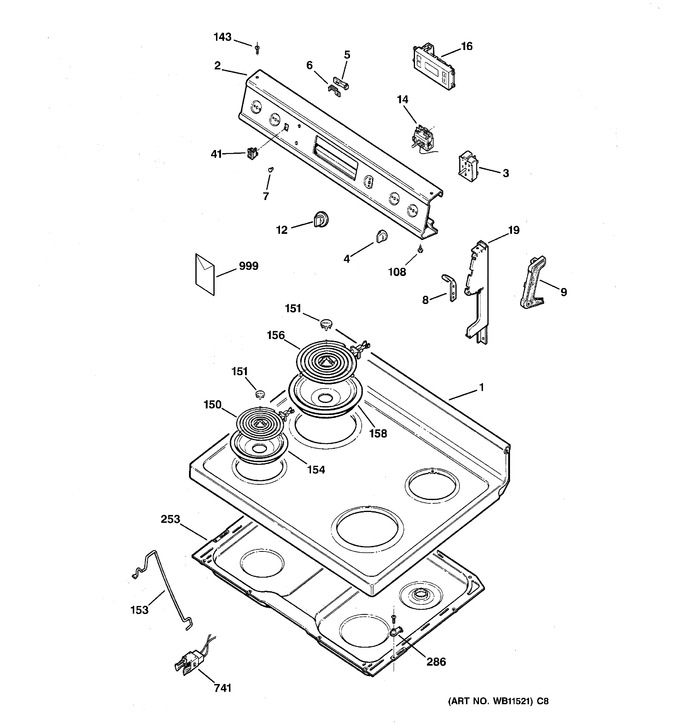

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5451 | Weld Asm Rangetop Wh |
|
- | |||||
| 1 | WB62X5452 | Weld Asm Rangetop Ad |
|
- | |||||
| 2 | WB36X10016 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB23X5092 | Sw Inf. Control 6" Brnr |
|
- | |||||
| 3 | WB32X5095 | Sw Inf. Control 8" Brnr |
|
- | |||||
| 4 | WB03X10011 | Knob Surface Unit Bk |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB02X10486 | Pin Hinge Lh |
|
- | |||||
| 8 | WB02X10485 | Pin Hinge Rh |
|
- | |||||
| 9 | WB7X7137 | End Cap Left Bk |
|
- | |||||
| 9 | WB7X7136 | End Cap Right Bk |
|
- | |||||
| 12 | WB03X10012 | Asm Knob Ge Thermostat |
|
- | |||||
| 14 | WB20X5071 | Thermostat Top Heat Sp |
|
- | |||||
| 16 | WB27T10090 | Timer Tod Led Asm |
|
- | |||||
| 19 | WB7X7269 | Plate End Lh Wh |
|
- | |||||
| 19 | WB7X7268 | Plate End Rh Wh |
|
- | |||||
| 19 | WB7X7270 | End Plate Ad Rh |
|
- | |||||
| 41 | WB24X5290 | Switch Rocker Bk |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5860 | Screw Bk |
|
- | |||||
| 150 | WB30X5119 | 6" Surface Element |
|
- | |||||
| 150 | WB30X5129 | 6" P.i. S/u Y Support |
|
- | |||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 154 | WG02F00094 | Burner Bowl 6" (Replaces: WB31T10010) |
|
Immediately | $ 39.70 | ||||
| 156 | WB30X5120 | Coil Asm 8 Inch P I |
|
- | |||||
| 156 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 158 | WS01L00407 | Burner Bowl 8" (Replaces: WB31T10011) |
|
Immediately | $ 40.18 | ||||
| 253 | WB49X5566 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 368 | WR1X1788 | Scr Mtr Mnt 8-18 Tpt 1/4 |
|
- | |||||
| 457 | WB56X10090 | Panel Drawer Ad |
|
- | |||||
| 530 | WB48X5107 | Grid Broiler Pan |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 999 | 49-8927 | Pm Manual Use & Care |
|
- | |||||
| 999 | 49-8939 | Pm Instruction Install |
|
- | |||||
| 999 | 31-20749 | Pm Manual Mini |
|
- |
