SELECT A DIAGRAM

Diagram for 1 - Component Group
1 - Component Group


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB62X1473 Cooktop Ad Appelez-nous -
1 WB62X1469 Cooktop Wh Appelez-nous -
1 WB62X1472 Cooktop Ha Appelez-nous -
2 WB7X7037 Trim Control Appelez-nous -
3 5500-200 Switch, Inf Surface Unit   (Replaces: WB21X5243) In-Stock Immediately $ 60.94

4 WB3X5737 Knob Surface Unit Appelez-nous -
5 WB2X1608 Neon Lamp 118v Special Order $ 31.65

6 WB2X1185 Clip Appelez-nous -
7 WB25X65 Jewel Appelez-nous -
9 WB7X7033 End Cap Rh Appelez-nous -
9 WB7X7034 End Cap Lf Appelez-nous -
10 WB2X7305 Bracket Lh Appelez-nous -
11 WB22X5131 Switch, Oven Appelez-nous -
12 WB3X5741 Knob Oven Switch Appelez-nous -
13 WB2X7306 Bracket Rh Appelez-nous -
14 WB2X6494 Barrier Appelez-nous -
14 WB21X5208 Thermostat Appelez-nous -
14 WB2X1394 Sleeve Appelez-nous -
15 WB3X5740 Knob Thermostat Appelez-nous -
16 WB19X5299 Timer Appelez-nous -
17 WB3X5699 "timer-knob" Appelez-nous -
18 WB36X5574 Crystal Timer Appelez-nous -
21 WB49X390 Cover Back Appelez-nous -
146 WB1X5783 Screw Shoulder Appelez-nous -
147 WB1X578 Speednut Cap Appelez-nous -
148 WS01A01408 Screw   (Replaces: WB1X5716) Special Order $ 4.20

149 WB2X7702 Clip Crystal Appelez-nous -
150 WG02F05372 6" Surf Elem   (Replaces: WB30M1) In-Stock Immediately $ 68.23

151 WB32X52 Center Trim 6" Unit Appelez-nous -
154 WB32X36 Unit Pan 6" Appelez-nous -
155 WB31X5013 Trim Ring 6" Appelez-nous -
156 WB30M2 8" Surf Elem Appelez-nous -
157 WB32X51 Center Trim 8" Unit Appelez-nous -
158 WB32X5013 Unit Pan 8" Appelez-nous -
160 WB17X5113 Receptacle Asm Appelez-nous -
164 WB31X5014 Trim Ring 8" In-Stock Immediately $ 13.55

176 WB49X391 Cover Light Appelez-nous -
250 NOT AVAIL Body Appelez-nous -
251 WB56X6050 Frame Front Appelez-nous -
252 WB49X5400 Filler Panel Ha Appelez-nous -
252 WB49X5399 Filler Panel Wh Appelez-nous -
252 WB49X5401 Filler Panel Ad Appelez-nous -
253 WB49X5384 Box Cooktop Appelez-nous -
254 WB38X50 Body Vent Appelez-nous -
256 WB2X7701 Leveling Leg Appelez-nous -
258 WB39X51 Drawer Guide Rh & Lh Appelez-nous -
259 WB2X831 Slide Guide Appelez-nous -
260 WB10X5148 Hinge Lever Asm Rh & Lh Appelez-nous -
261 WB10X149 Hinge Support Lh Appelez-nous -
261 WB10X148 Hinge Support Rh Appelez-nous -
263 WG02A00596 Pin Hinge   (Replaces: WB2X6195) Special Order $ 4.20

264 WB2X1082 Pin Hinge Retainer Appelez-nous -
265 WB2X6342 Guide Hinge Lever Appelez-nous -
266 WB2X2506 Hook Door Spring Appelez-nous -
267 WB9X5100 Spring Door Appelez-nous -
271 WB2X1626 Baffle Appelez-nous -
272 WB17X5095 Block Terminal Power Appelez-nous -
274 WB2X1908 Knockout Plate Appelez-nous -
275 WB59X173 Guard Terminal Appelez-nous -
277 WB24X105 Switch, Oven Light Appelez-nous -
279 WB8X5095 Receptacle Appelez-nous -
280 WX12X1510 Lamp 40w Appliance Appelez-nous -
302 WB2X7694 Bail Appelez-nous -
303 WG02F04576 Glass Oven Lamp   (Replaces: WB36X389) Special Order $ 20.65

342 WB2X7700 Retainer Leg Appelez-nous -
348 WB2X646 Plate Ground Appelez-nous -
350 WB55X5290 Door Liner Appelez-nous -
351 WB2X6270 Spacer Door Appelez-nous -
357 WB1X558 Screw Appelez-nous -
358 WB56X7002 Door Panel Wh Appelez-nous -
358 WB2X3140 Insulation Appelez-nous -
358 WB56X7001 Door Panel Ad Appelez-nous -
360 WB49X384 Guard Insulation Appelez-nous -
361 WZ04X0423 Screw Mtg Handle Appelez-nous -
362 WB1X119 Washer Screw Appelez-nous -
363 WB2X6204 Spacer Panel Appelez-nous -
364 WB2X3245 Spacer Appelez-nous -
365 WB15X5160 Handle Appelez-nous -
375 WB36X430 Crystal Window Appelez-nous -
376 WB2X2978 Clip Crystal Appelez-nous -
377 WB7X7069 Trim Crystal Appelez-nous -
378 WB7X5022 Trim Plate Lower Oven Appelez-nous -
379 WB2X5410 Cam Appelez-nous -
392 WB2X5217 Cam Link Appelez-nous -
393 WB9X5083 Cam Spring Appelez-nous -
399 WB2X3285 Pad Socket Appelez-nous -
400 WB36X526 Crystal Window Special Order $ 140.86

409 WB2X7939 Counterweight Appelez-nous -
451 WB58X5011 Drawer Asm Appelez-nous -
452 WB2X840 Slide Top Appelez-nous -
453 WB2X3394 Plug Button Appelez-nous -
454 WB2X584 Bumper Appelez-nous -
456 WZ04X0345 Screw Appelez-nous -
457 WB56X6092 Drawer Panel Ad Appelez-nous -
457 WB56X6090 Drawer Panel Wh Appelez-nous -
457 WB56X6091 Drawer Panel Ha Appelez-nous -
459 WB1X5782 Screw Appelez-nous -
459 WB1X537 Screw Appelez-nous -
461 WB1X593 Screw Appelez-nous -
520 WB53X5139 Oven Liner Appelez-nous -
520 WB2X3471 Clip Capillary Tube Oven Appelez-nous -
520 WB2X3141 Insulation Appelez-nous -
521 WB9X88 Hook Package Appelez-nous -
523 WB2X7693 Housing Receptacle Appelez-nous -
528 WB48X5097 Rack Oven Appelez-nous -
529 WB49X5380 Broil Pan Appelez-nous -
530 4396923 Broiler Pan Rack   (Replaces: WB48X5093) In-Stock Immediately $ 60.71

532 WB38X72 Tube Vent Appelez-nous -
534 WB2X1522 Gasket Silicone Appelez-nous -
650 UB592 Bake Unit 208/240v   (Replaces: WB44X5082) In-Stock Immediately $ 49.95

651 UT316 Broil Unit 208/240v   (Replaces: WB44X185) In-Stock Immediately $ 49.95

652 WB2X1452 Support Broil Appelez-nous -
740 WB2X7226 Clip Wire Appelez-nous -
782 WB17X5060 Terminal Blk Asm (2 Pin) Appelez-nous -
790 WB1X365 Speednut Appelez-nous -
32767 31-0638 Install Instructions Appelez-nous -
32767 49-8177 Users Manual Appelez-nous -
32767 WB2X7876 Brkt Anti-tip Appelez-nous -
32767 31-0824 Install Instr (anti-tip) Appelez-nous -
32767 31-0395 Pm Manual Mini Appelez-nous -
32767 31-0859 Install Instr Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

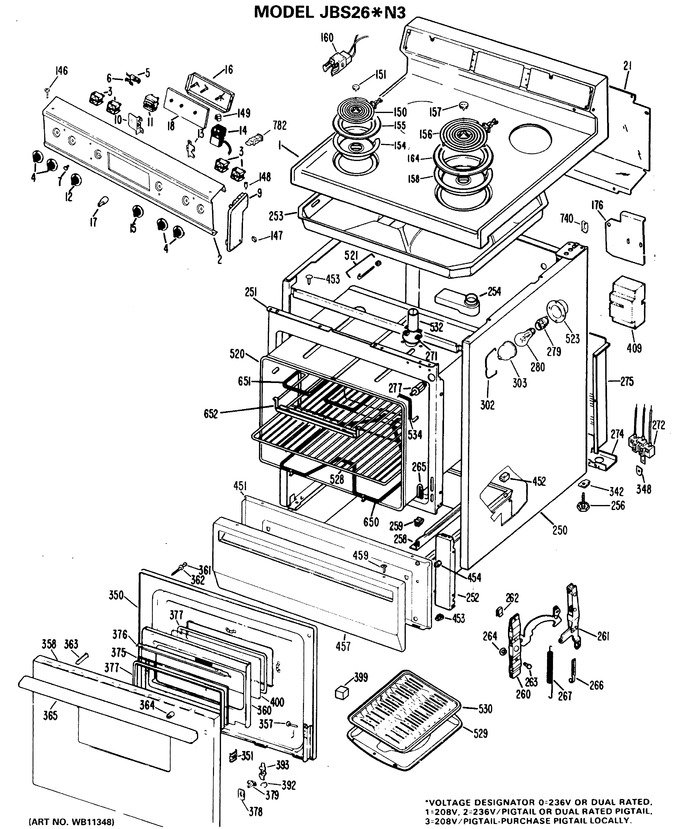

Diagram for JBS26*N3
