SELECT A DIAGRAM
1 - Control Panel & Cooktop
2 - Body Parts

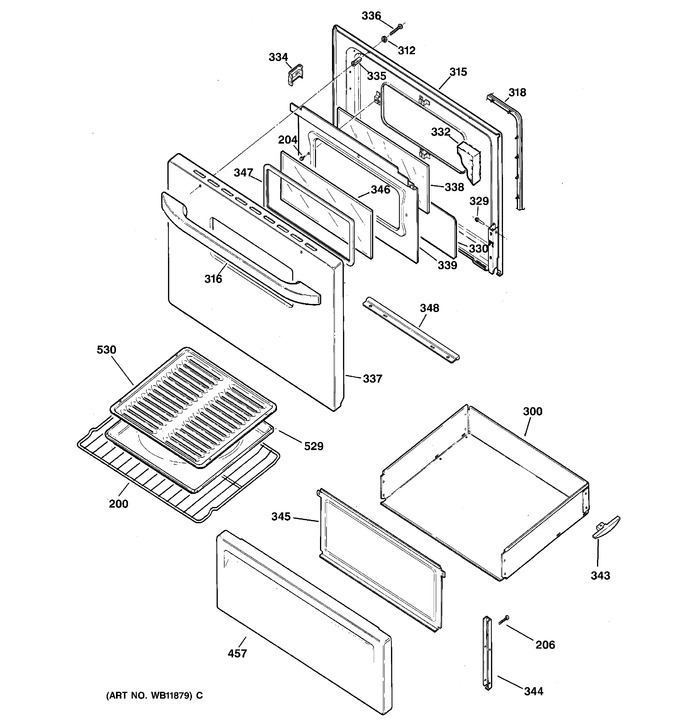

3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | WS01L11401 | Rack Oven (Replaces: WB48K5019) |
|
Immediately | $ 71.51 | ||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 14.29 | |||||
| 204 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 206 | WB1K21 | Screw |
|
- | |||||
| 300 | WS01L00275 | Drawer Body (Replaces: WB58K10004) |
|
$ 67.79 | |||||
| 312 | WB1X119 | Washer Contoured |
|
- | |||||
| 315 | WB55K21 | Liner Asm Weld Door |
|
- | |||||
| 316 | WB15T10036 | Handle Door (bsqt) |
|
- | |||||
| 318 | WS01L16443 | Gasket Door Asm (Replaces: WB32K3) |
|
Immediately | $ 13.75 | ||||
| 329 | WB1X558 | Screw Nail Point |
|
- | |||||
| 330 | WB55K1 | Reflector Lg |
|
- | |||||
| 332 | WB35K5 | Insulation Door |
|
- | |||||
| 334 | WB2K13 | Spacer Door |
|
- | |||||
| 335 | WB2K2 | Spacer |
|
- | |||||
| 336 | WB1K69 | Screw 10-16 |
|
- | |||||
| 337 | WB56K10013 | Panel Door (bsqt) |
|
- | |||||
| 338 | WB56K5 | Crystal Window |
|
- | |||||
| 339 | WB56K6 | Guard Insulation |
|
- | |||||
| 343 | WB02K10031 | Glider Drawer |
|
- | |||||
| 344 | WS01A00509 | Bracket Mounting Drawer (Replaces: WB02K10025) |
|
$ 5.26 | |||||
| 345 | WS01L01584 | Cover Drawer (Replaces: WB34K10034) |
|
Immediately | $ 39.93 | ||||
| 346 | WB56K25 | Crystal Window |
|
- | |||||
| 347 | WB7K86 | Trim Crystal |
|
- | |||||
| 348 | WB2K50 | Clip Crystal |
|
- | |||||
| 457 | WB56K10011 | Panel Drawer (bsqt) |
|
- | |||||
| 529 | WB48K10003 | Pan-broiler |
|
- | |||||
| 530 | WB48K10004 | Rack-broiler Pan |
|
- |
