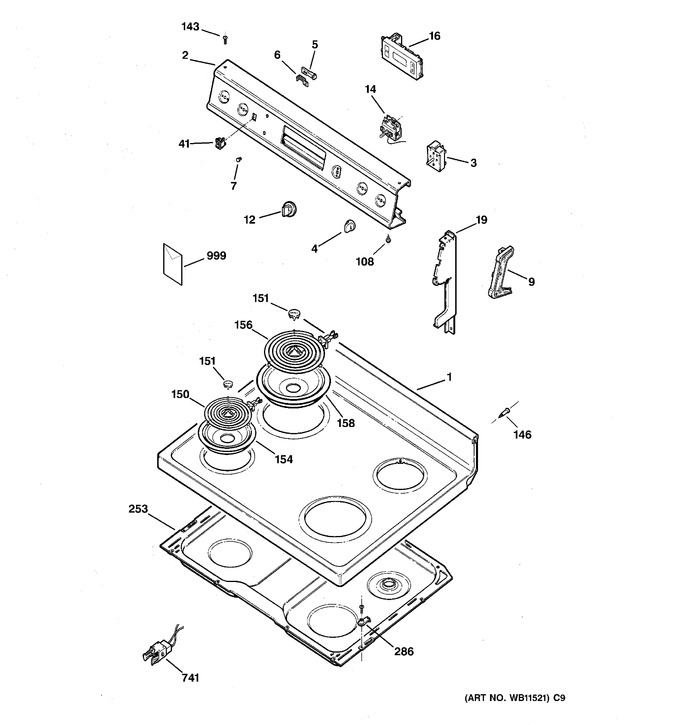

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5454		Weld Asm Rangetop Ad		Appelez-nous	-
1	WB62X5455		Weld Asm Rangetop Wh		Appelez-nous	-
2	WB36X10027		Trim & Bracket Asm		Appelez-nous	-
3	WB24X5334		Switch Inf Surface Un 8"		Appelez-nous	-
3	WB24X5333		Switch Inf Surface Un 6"		Appelez-nous	-
4	WB3X5834		Knob-surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
6	WB2X1185		Clip Lamp		Appelez-nous	-
7	WB25X65		Jewel		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
12	WB3X5839		Knob Thermo (black)		Appelez-nous	-
14	WB20X5071		Thermostat Top Heat Sp		Appelez-nous	-
16	WB27X5595		Timer Tod Led Asm		Appelez-nous	-
19	WB7X7269		Plate End Lh Wh		Appelez-nous	-
19	WB7X7271		Plate End Lh Ad		Appelez-nous	-
19	WB7X7270		Plate End Rh Ad		Appelez-nous	-
19	WB7X7268		Plate End Rh Wh		Appelez-nous	-
41	WB24X5347		Switch Oven Lamp - Blk		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
146	WB1X5832		Screw Shoulder		Appelez-nous	-
150	WB30X5119		6" Surface Element		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
154	WB32X5075		Burner Bowl 6"		Appelez-nous	-
156	WB30X5120		Coil Asm 8 Inch P I		Appelez-nous	-
158	WB32X5076		Burner Bowl 8"				$ 10.45
253	WB49X5566		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
999	31-20701		Pm Manual Mini		Appelez-nous	-
999	49-8918		Pm Manual Use & Care		Appelez-nous	-
999	49-8896		Pm Instruction Install		Appelez-nous	-
