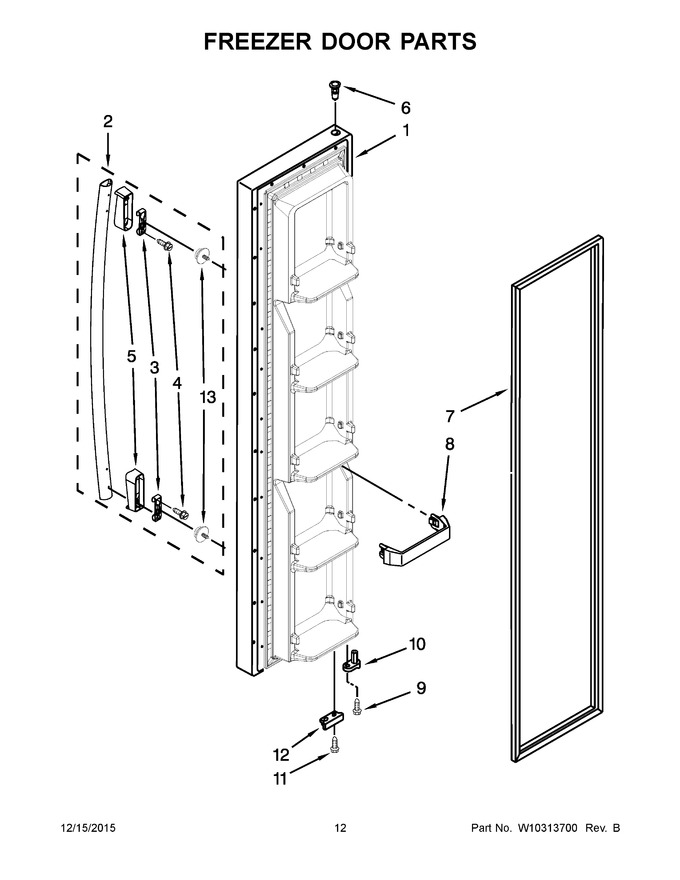

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203193 | Door, Freezer (includes Item #7) (stainless) |
|
- | |||||
| 2 | WPW10257118K | Handle, Door (stainless) (Replaces: W10257118) |
|
$ 196.99 | |||||
| 3 | WP2255411 | Clip, Handle Mount (Replaces: 2255411) |
|
$ 36.55 | |||||
| 4 | W10267047 | Screw (Replaces: W10201588) |
|
$ 13.47 | |||||
| 5 | W10127772 | Endcap, Handle (grey) |
|
$ 49.75 | |||||
| 6 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 7 | W10136735 | Gasket, Door (grey) (Replaces: 2327164) |
|
$ 315.51 | |||||
| 8 | WP2171157 | Trivet (Replaces: 2171157) |
|
$ 63.70 | |||||
| 9 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 10 | WP2182179 | Thimble, Cam (Replaces: 2182178) |
|
Immediately | $ 7.20 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 12 | W10185566 | Bracket, Door Stop (silver) |
|
- | |||||
| 13 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 |
