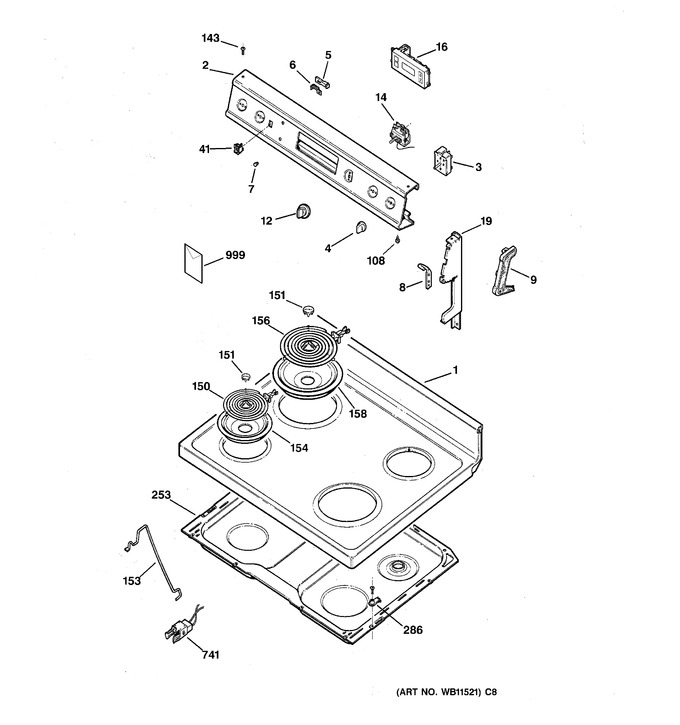

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5402		Cooktop Asm - White		Appelez-nous	-
1	WB62X5452		Cooktop Asm - Almond		Appelez-nous	-
2	WB36X10016		Trim & Bracket Asm		Appelez-nous	-
3	WB23X5092		Sw Inf. Control 6" Brnr		Appelez-nous	-
3	WB32X5095		Sw.inf.cntrl - 8" Brnr		Appelez-nous	-
4	WB03X10011		Knob Surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
6	WB2X1185		Clip Lamp		Appelez-nous	-
7	WB25X65		Jewel		Appelez-nous	-
8	WB02X10486		Pin Hinge L		Appelez-nous	-
8	WB02X10485		Pin Hinge R		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
12	WB03X10012		Asm Knob Ge Thermostat		Appelez-nous	-
14	WB20X5071		Thermostat Top Heat Sp		Appelez-nous	-
16	WB27X5595		Timer Tod Led Asm (blk)		Appelez-nous	-
19	WB07X10128		Plate End Lh		Appelez-nous	-
19	WB07X10129		Plate End Rh Ad		Appelez-nous	-
19	WB07X10127		Plate End Rh		Appelez-nous	-
19	WB07X10130		Plate End Lh Ad		Appelez-nous	-
41	WB24X5347		Switch Oven Lamp - Blk		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
150	WB30X5129		6" P.i. S/u Alum		Appelez-nous	-
151	WG02F04803		Trim Center   (Replaces: WB31X5021)				$ 4.78
153	WB2X8114		Rod Support		Appelez-nous	-
154	WB32X5075		Burner Bowl 6" Chrome		Appelez-nous	-
156	WB30X5130		8" P.i. S/u Alum		Appelez-nous	-
158	WB32X5076		Burner Bowl 8" Chrome				$ 10.45
253	WB49X5566		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
999	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
999	31-0824		Install Instr (anti-tip)		Appelez-nous	-
999	49-8782		Pm Manual Use & Care		Appelez-nous	-
999	31-20432		Pm Manual Mini		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
