View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

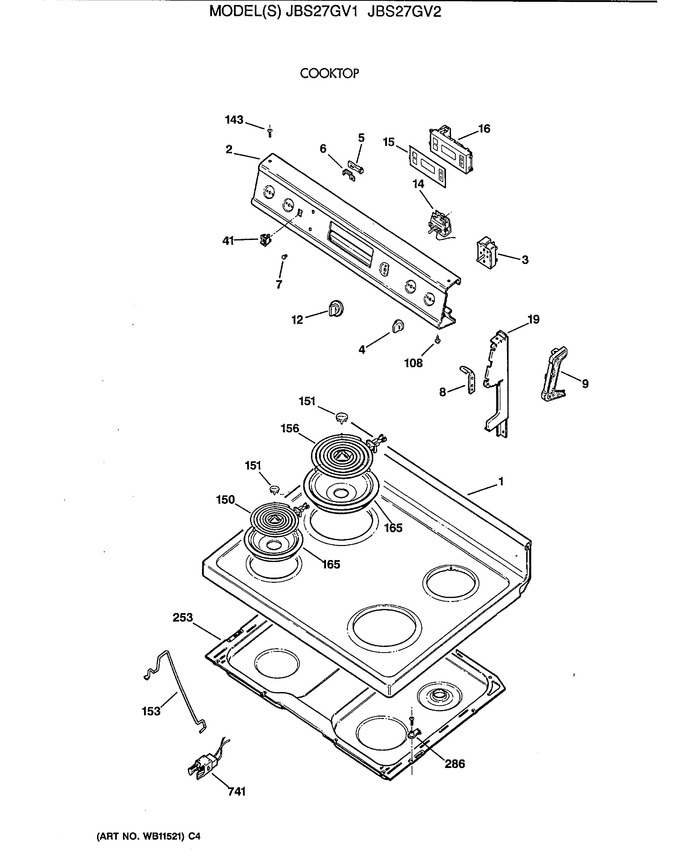

1 - Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5428 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5427 | Cooktop Wh |
|
- | |||||
| 2 | WB36X5763 | Trim & Bracket Asm (blk) |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5834 | Knob-surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip - Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7137 | End Cap Left |
|
- | |||||
| 9 | WB7X7136 | End Cap Right |
|
- | |||||
| 12 | WB3X5839 | Knob Thermo (black) |
|
- | |||||
| 14 | WB20X5071 | Thermostat Top Heat Sp |
|
- | |||||
| 15 | WB27X5560 | Faceplate |
|
- | |||||
| 16 | WB27X5559 | Clock Tod Ii |
|
- | |||||
| 19 | WB7X7269 | Plate End Wh Lh |
|
- | |||||
| 19 | WB7X7270 | End Plate Ad Rh |
|
- | |||||
| 19 | WB7X7268 | Plate End Wh Rh |
|
- | |||||
| 19 | WB7X7271 | End Plate Ad Lh |
|
- | |||||
| 41 | WB24X5290 | Switch |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 150 | WG02F05372 | 6" P.i. S/u Alum (Replaces: WB30M1) |
|
Immediately | $ 68.23 | ||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 153 | WB2X8114 | Rod Support |
|
- | |||||
| 156 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 165 | WB32X5075 | Burner Bowl 6" Chrome |
|
- | |||||
| 165 | WB32X5076 | Burner Bowl 8" Chrome |
|
$ 10.45 | |||||
| 165 | WG02L01430 | Bowl Burner 8" Blk Porc (Replaces: WB32X5085) |
|
Immediately | $ 26.09 | ||||
| 165 | WB32X5083 | Bowl Burner 6" Blk Porc |
|
- | |||||
| 253 | WB49X5566 | Box Cooktop |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 1458 | WB17X5073 | Term Blk Asm-1 Pin(1458) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 49-8586 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-20092 | Pm Manual-mini |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- |
