SELECT A DIAGRAM

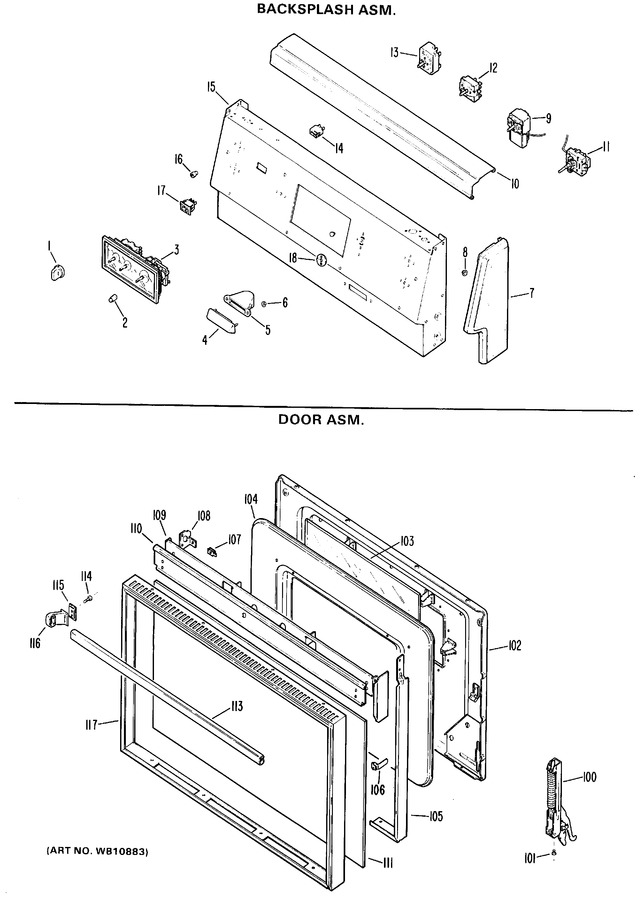

1 - Backsplash Asm.
2 - Main Body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB3X705 | Knob-sensi-switch |
|
- | |||||
| 2 | WB3X704 | Knob-timer |
|
- | |||||
| 3 | WB19X229 | Timer |
|
- | |||||
| 4 | WB61X299 | Vent Cover |
|
- | |||||
| 5 | WB38X96 | Top-vent |
|
- | |||||
| 6 | WB1X981 | Palnut-vent Mounting |
|
- | |||||
| 7 | WB61X303 | End Cap-lh |
|
- | |||||
| 7 | WB61X302 | End Cap Rh |
|
- | |||||
| 8 | WB1X980 | Palnut End Cap Mtng |
|
- | |||||
| 9 | WB23X82 | Infinite-sw-2000w |
|
- | |||||
| 10 | WB61X297 | Cover-top |
|
- | |||||
| 11 | WB23X81 | Infinite Se-1425w |
|
- | |||||
| 12 | WB21X439 | Oven Control |
|
- | |||||
| 13 | WB22X111 | Switch-selector |
|
- | |||||
| 14 | WB25X88 | Pilot Light-125v |
|
- | |||||
| 14 | WB25X89 | Pilot Light-250v |
|
- | |||||
| 15 | WB61X307 | Control Panel-ad |
|
- | |||||
| 15 | WB61X306 | Control Panel-wh |
|
- | |||||
| 16 | WB36X727 | Lens-pilot Light |
|
- | |||||
| 17 | WB24X5236 | Switch |
|
- | |||||
| 18 | WB21X438 | Disc |
|
- | |||||
| 100 | WB14X81 | Hinge |
|
- | |||||
| 101 | WB1X997 | Screw |
|
- | |||||
| 102 | WB55X627 | Liner |
|
- | |||||
| 103 | WB36X526 | Crystal Window |
|
$ 140.86 | |||||
| 104 | WB55X629 | Panel-retainer |
|
- | |||||
| 105 | WB2X4929 | Support Side-lh |
|
- | |||||
| 105 | WB2X4924 | Support Side-rh |
|
- | |||||
| 106 | WB2X4930 | Clip (6) |
|
- | |||||
| 107 | WB2X4922 | Clip |
|
- | |||||
| 108 | WB2X4923 | Plate-mounting-rh |
|
- | |||||
| 108 | WB2X4936 | Plate-mtng-lh |
|
- | |||||
| 109 | WB2X4939 | Support-top |
|
- | |||||
| 110 | WB2X4921 | Plate-aeration |
|
- | |||||
| 111 | WB55X624 | Glass-black |
|
- | |||||
| 113 | WB15X243 | Handle |
|
- | |||||
| 114 | WB1X1006 | Screw-mount Handle |
|
- | |||||
| 115 | WB2X4928 | Base-handle |
|
- | |||||
| 116 | WB2X4927 | End Cap-rh |
|
- | |||||
| 116 | WB2X4926 | End Cap-lh |
|
- | |||||
| 117 | WB55X630 | Frame-door |
|
- | |||||
| 9999 | WB49X589 | Broiler Pan Rack |
|
- | |||||
| 9999 | WB2X4903 | Clip-oven Control Tube ( |
|
- | |||||
| 9999 | WB1X1005 | Lockwasher |
|
- | |||||
| 9999 | 31-0626 | Install Instr |
|
- | |||||
| 9999 | WB2X3165 | Hanger-tls |
|
- | |||||
| 9999 | WB1X990 | Hookbolt |
|
- | |||||
| 9999 | WB1X1008 | Washer (2) |
|
- | |||||
| 9999 | WB64X81 | Cleaner, Element |
|
- | |||||
| 9999 | WB1X995 | Lockwasher |
|
- | |||||
| 9999 | WB49X588 | Broiler Pan |
|
- | |||||
| 9999 | WB1X998 | Screw |
|
- | |||||
| 9999 | WB1X1009 | Screw-retainer To Liner |
|
- | |||||
| 9999 | WB1X989 | Screw-broil Element |
|
- | |||||
| 9999 | WB1X996 | Nut-hook-bolt |
|
- | |||||
| 9999 | 49-4797 | Use And Care Book |
|
- | |||||
| 9999 | WB1X1003 | Screw Support Frame |
|
- | |||||
| 9999 | WB2X3163 | Gasket-tls |
|
$ 22.50 | |||||
| 9999 | WB2X4905 | Plate-tls |
|
- |
