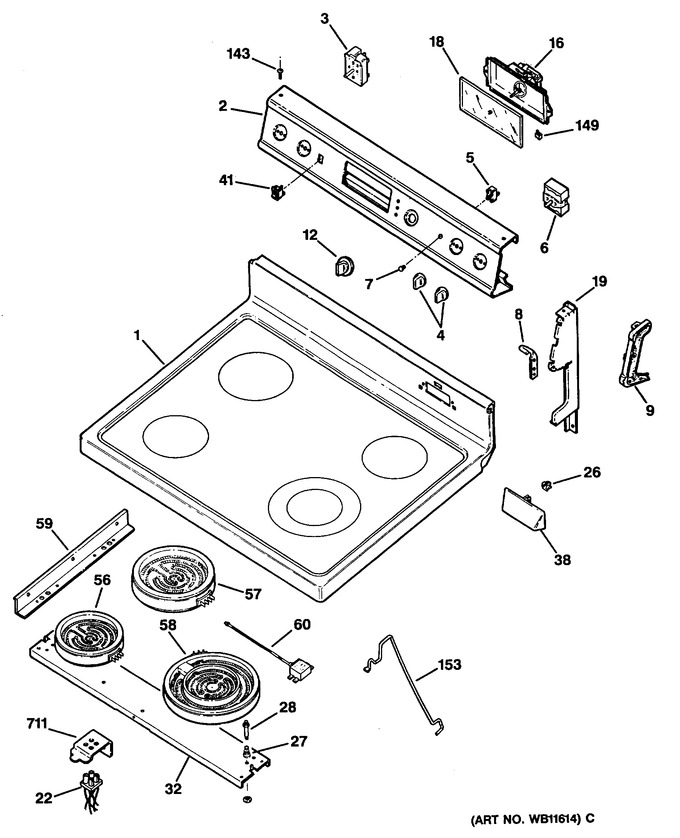

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5415 | Cooktop & Glass Asm Ad |
|
- | |||||
| 2 | WB36X5743 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB24X5333 | Sw.inf. Control 6" Brnr |
|
- | |||||
| 4 | WB3X5775 | Knob |
|
- | |||||
| 6 | WB24X5334 | Sw.inf. Control 8" Brnr |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 14 | WB20X5070 | Thermostat Top Heat |
|
- | |||||
| 15 | WB3X5825 | Knob Asm |
|
- | |||||
| 16 | WB19X5305 | Timer |
|
- | |||||
| 17 | WB3X5814 | Knob |
|
- | |||||
| 18 | WB36X5575 | Crystal Timer |
|
- | |||||
| 19 | WB7X7164 | Plate End |
|
- | |||||
| 19 | WB7X7162 | Plate End |
|
- | |||||
| 22 | WB8X5116 | Indicator Hot Surface |
|
- | |||||
| 23 | WB2X8315 | Insulation Vent Cover |
|
- | |||||
| 24 | WB2X8316 | Insulation Vent Tube |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 29 | WB38X5066 | Tube Vent Elbow |
|
- | |||||
| 30 | WB2X8310 | Cooktop Bracket Front |
|
- | |||||
| 32 | WB2X8318 | Support Radiant Heater |
|
- | |||||
| 38 | WB7X7218 | Vent Trim & Clip Asm |
|
- | |||||
| 56 | WB30X5141 | Element Radiant (1400w) |
|
- | |||||
| 58 | WB30X5145 | Element Radiant (1900w) |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 60 | WB24X5335 | Switch Thermal (1900w) |
|
- | |||||
| 70 | WB23X5093 | Sw Thermal (1400w) Rad |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.97 | ||||
| 248 | WB21X5310 | Sensor Asm Oven |
|
- | |||||
| 272 | WB17X5123 | Block Terminal |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 379 | WB24X5290 | Switch |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 520 | WB53X5149 | Oven Liner |
|
- | |||||
| 710 | WB38X5064 | Body Vent |
|
- | |||||
| 711 | WB2X8307 | Bracket Hot Light |
|
- | |||||
| 713 | WB2X8311 | Gasket Vent |
|
- | |||||
| 715 | WB38X5067 | Tube Vent |
|
- | |||||
| 715 | WB2X8323 | Clip Pushon |
|
- | |||||
| 716 | WB38X5068 | Orifice Vent |
|
- | |||||
| 717 | WB38X5069 | Plate Vent |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 961 | WB2X1185 | Clip |
|
- | |||||
| 1024 | WX12X1510 | Bulb-oven Light |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | WB6K5036 | Razor Blade Scraper |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X8273 | Cleaner Glass |
|
- | |||||
| 32767 | 49-8436 | Pm Manual Use & Care |
|
- | |||||
| 32767 | WB18X5136 | Harness |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | 31-20051 | Pm Manual Mini |
|
- | |||||
| 32767 | 49-8457 | Tape Vcr |
|
- |
