SELECT A DIAGRAM

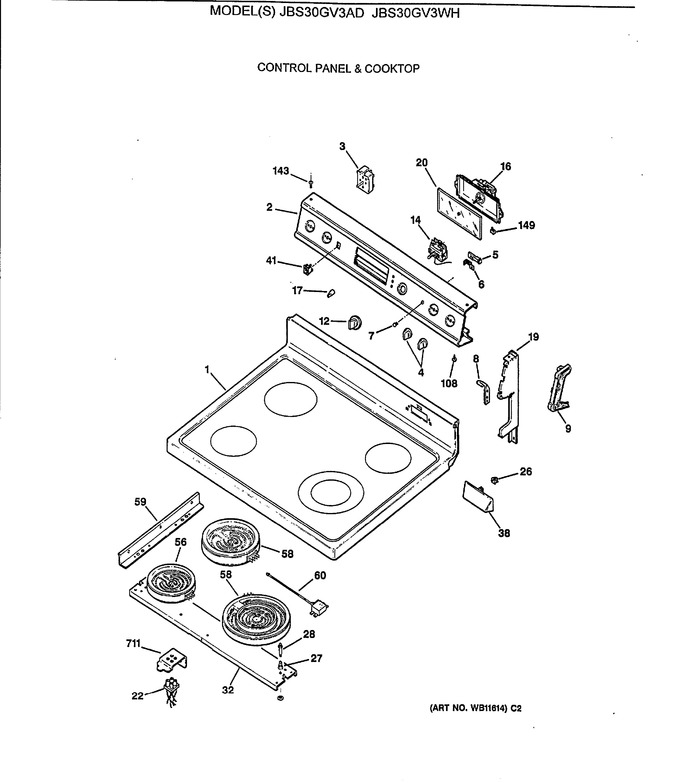

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5471 | Rangetop & Glass Asm Wh |
|
- | |||||
| 2 | WB36X5762 | Trim & Bracket Asm (blk) |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5834 | Knob-surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7136 | End Cap Right |
|
- | |||||
| 9 | WB7X7137 | End Cap Left |
|
- | |||||
| 12 | WB3X5839 | Knob Thermo (black) |
|
- | |||||
| 14 | WB20X5071 | Thermostat Top Heat Sp |
|
- | |||||
| 16 | WB19X5305 | Timer (black) |
|
- | |||||
| 17 | WB3X5814 | Knob Timer |
|
- | |||||
| 19 | WB7X7268 | Plate End Wh Rh |
|
- | |||||
| 19 | WB7X7269 | Plate End Wh Lh |
|
- | |||||
| 20 | WB36X5575 | Crystal Timer |
|
- | |||||
| 22 | WB8X5118 | Indicator Hot Surface |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 32 | WB2X8556 | Support Radiant Heater |
|
- | |||||
| 38 | WB7X7219 | Vent Trim & Clip Asm Wh |
|
- | |||||
| 41 | WB24X5347 | Switch Oven Lamp - Blk |
|
- | |||||
| 56 | WB30X5141 | Element Radiant (1400w) |
|
- | |||||
| 58 | WB30X5145 | Element Radiant (1900w) |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 60 | WB24X5335 | Switch Thermal (1900w) |
|
- | |||||
| 60 | WB23X5093 | Sw Thermal (1400w) Rad |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 520 | WB53X5149 | Oven Liner |
|
- | |||||
| 523 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 684 | WZ04X0417 | Screw |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 999 | WB6K5036 | Razor Blade Scraper |
|
- | |||||
| 32767 | 31-20216 | Pm Manual Mini |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 49-8722 | Pm Manual Use & Care |
|
- |
