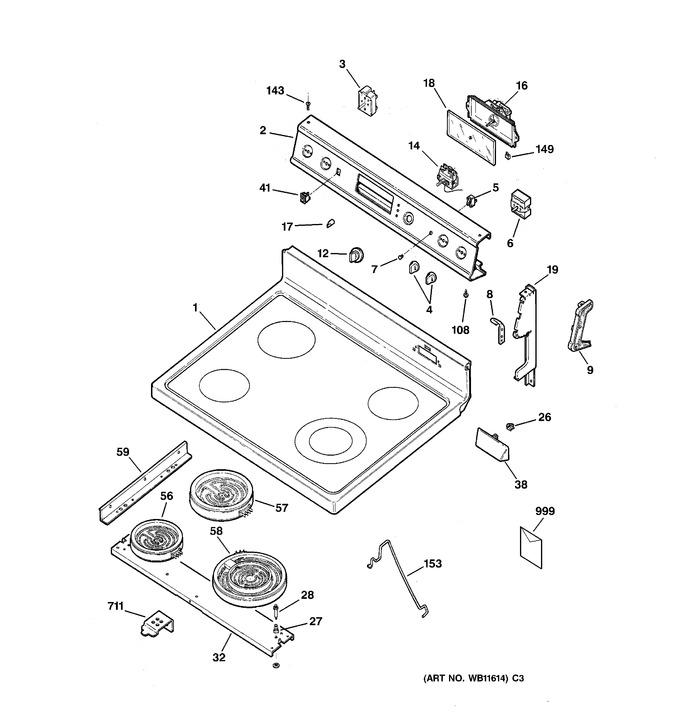

1 - Control Panel & Cooktop


2 - Door & Drawer Parts


3 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5472		Rangetop & Glass Asm Ad		Appelez-nous	-
2	WB36X5762		Trim & Bracket Asm (blk)		Appelez-nous	-
3	WB23X5092		Sw Inf. Control 6" Brnr		Appelez-nous	-
4	WB3X5834		Knob-surface Unit		Appelez-nous	-
5	WB2X1608		Neon Lamp 118v				$ 31.65
7	WB25X65		Jewel		Appelez-nous	-
8	WB2X8126		Pin Hinge R		Appelez-nous	-
8	WB2X8127		Pin Hinge L		Appelez-nous	-
9	WB7X7137		End Cap Left		Appelez-nous	-
9	WB7X7136		End Cap Right		Appelez-nous	-
12	WB3X5839		Knob Thermo (black)		Appelez-nous	-
14	WB20X5071		Thermostat Top Heat Sp		Appelez-nous	-
16	WB19X5305		Timer (black)		Appelez-nous	-
17	WB3X5814		Knob		Appelez-nous	-
18	WB36X5575		Crystal Timer		Appelez-nous	-
18	WR1X1768		Scr 6-20 Ab Fht 3/8 S		Appelez-nous	-
19	WB7X7268		Plate End Wh Rh		Appelez-nous	-
19	WB7X7269		Plate End Wh Lh		Appelez-nous	-
26	WB2X8312		Clip Vent Trim		Appelez-nous	-
27	WB9X5119		Spring Heater Mtg		Appelez-nous	-
28	WB2X8377		Stud Heater Mount		Appelez-nous	-
32	WB2X8556		Support Radiant Heater		Appelez-nous	-
38	WB7X7218		Vent Trim & Clip Asm Ad		Appelez-nous	-
41	WB24X5347		Switch Oven Lamp - Blk		Appelez-nous	-
56	WB30K5033		Haliant Element-1500w		Appelez-nous	-
58	WB30K5031		Haliant Element-2000w		Appelez-nous	-
59	WB2X8321		Brace Body		Appelez-nous	-
108	WB1X5904		Scr 8-18 Ba Por 3/4 Sn		Appelez-nous	-
143	WB1X5860		Screw		Appelez-nous	-
149	WB2X7702		Clip Crystal		Appelez-nous	-
711	WB2X8555		Bracket Hot Light		Appelez-nous	-
999	31-0824		Install Instr (anti-tip)		Appelez-nous	-
999	WB2X7876		Bracket Asm Anti-tip		Appelez-nous	-
999	49-8722		Pm Manual Use & Care		Appelez-nous	-
999	31-20216		Pm Manual Mini		Appelez-nous	-
32767	WB17X171		Terminal Male & Female		Appelez-nous	-
