View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

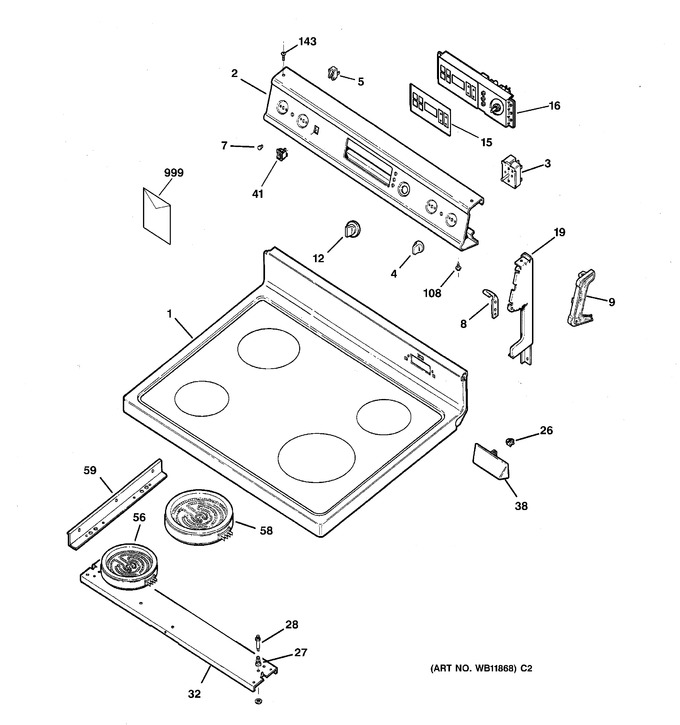

1 - Control Panel & Cooktop
2 - Body Parts
3 - Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X10007 | Rangetop & Glass Asm |
|
- | |||||
| 2 | WB36X10142 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB23X5099 | Sw. Inf. Control 8" Brnr |
|
- | |||||
| 3 | WB23X5092 | Sw Inf. Control 6" Brnr |
|
- | |||||
| 4 | WB03X10011 | Knob Surface Unit Bk |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Indicator Light Lens |
|
- | |||||
| 8 | WB02X10485 | Pin Hinge Rh |
|
- | |||||
| 8 | WB02X10486 | Pin Hinge Lh |
|
- | |||||
| 9 | WB7X7137 | End Cap Left Bk |
|
- | |||||
| 9 | WB7X7136 | End Cap Right Bk |
|
- | |||||
| 12 | WB03X10030 | Knob Bk |
|
- | |||||
| 16 | WB27X10269 | Control |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 16 | WB27X10055 | Faceplate |
|
- | |||||
| 16 | WB9X5121 | Spring Detent |
|
- | |||||
| 16 | WB02T10070 | Cam Dual |
|
- | |||||
| 19 | WB7X7269 | Plate End Lh Wh |
|
- | |||||
| 19 | WB7X7268 | Plate End Rh Wh |
|
- | |||||
| 26 | WB2X8312 | Clip Vent Trim |
|
- | |||||
| 27 | WB9X5119 | Spring Heater Mtg |
|
- | |||||
| 28 | WB2X8377 | Stud Heater Mount |
|
- | |||||
| 32 | WB2X8556 | Support Radiant Heater |
|
- | |||||
| 38 | WB7X7218 | Vent Trim Clip Asm Ad |
|
- | |||||
| 41 | WB24X5290 | Switch Rocker Bk |
|
- | |||||
| 56 | WB30T10047 | Element Haliant 6" |
|
- | |||||
| 58 | WB30T10045 | Element Haliant 8" |
|
- | |||||
| 59 | WB2X8321 | Brace Body |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5860 | Screw Bk |
|
- | |||||
| 999 | 31-20758 | Pm Manual Mini |
|
- | |||||
| 999 | 49-8962 | Pm Manual Use & Care |
|
- | |||||
| 999 | WB64X93 | Cleaner Glass |
|
- | |||||
| 999 | 49-8939 | Pm Instruction Install |
|
- |
