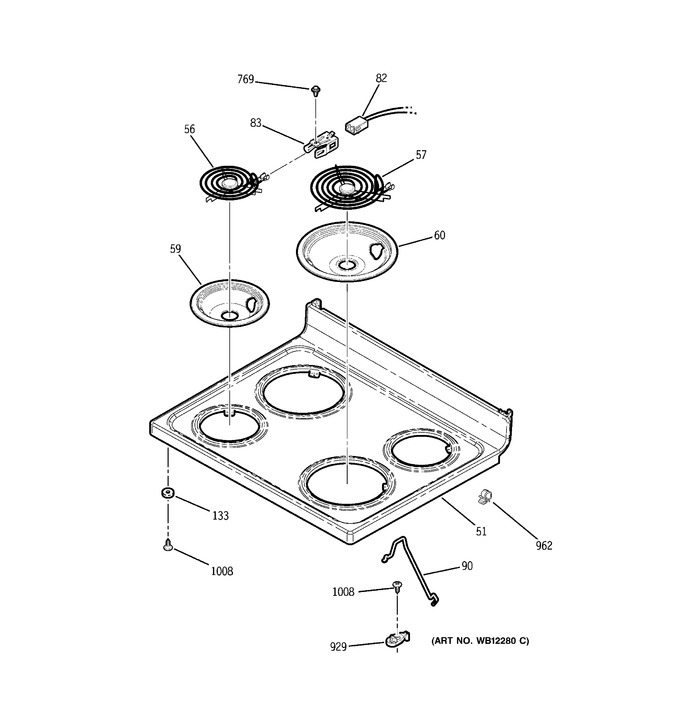

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 51 | WB62T10008 | Rangetop Mech Asm Wh |
|
- | |||||
| 56 | WG02F05359 | Surface Unit Asm 6 (Replaces: WB30T10113) |
|
$ 78.04 | |||||
| 57 | WB30T10114 | Surface Unit Asm 8 |
|
- | |||||
| 59 | WB31T10014 | Burner Bowl 6" |
|
- | |||||
| 60 | WG02L01430 | Burner Bowl 8" (Replaces: WB31T10015) |
|
Immediately | $ 24.33 | ||||
| 82 | PM2M2261 | Kit Surf Term Block (Replaces: WB17T10006) |
|
Immediately | $ 28.29 | ||||
| 83 | WG02A00835 | Clip Receptacle (Replaces: WB17T10009) |
|
$ 12.40 | |||||
| 90 | WB02T10025 | Support Rod |
|
- | |||||
| 133 | WB01T10026 | Door Pad |
|
- | |||||
| 133 | WB01T10021 | Maintop Bumper |
|
- | |||||
| 133 | WG02F03973 | Tape Foam (Replaces: WB01T10052) |
|
$ 3.57 | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.57 | ||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
