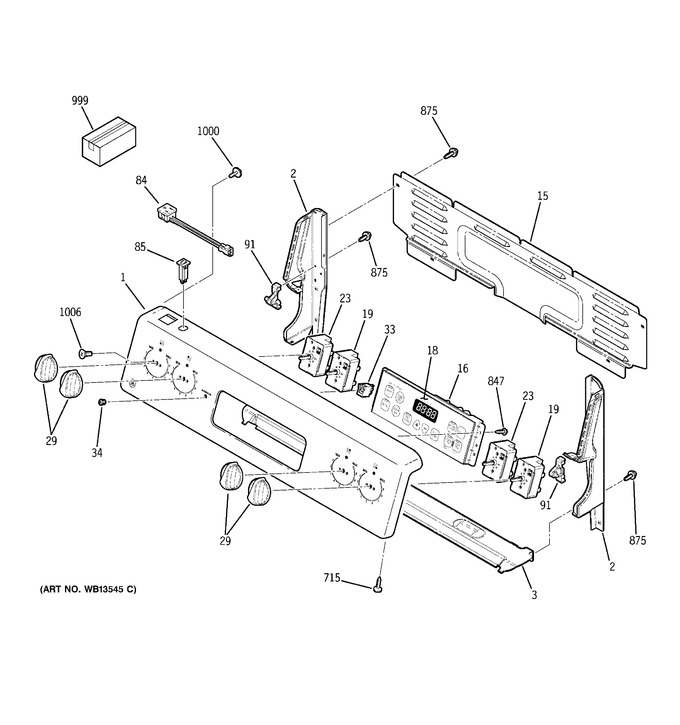

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10900		Trim & Bracket Asm		Appelez-nous	-
2	WB36T10247		End Cap Rt/white		Appelez-nous	-
2	WB36T10248		End Cap Left/white		Appelez-nous	-
3	WB02T10306		Shield Heat (bkgd)		Appelez-nous	-
15	WB34T10088		Cover Control		Appelez-nous	-
16	WG02F16063		Control Oven To-9   (Replaces: WB27T10467)			Immediately	$ 213.63
18	WB27T10723		Faceplate Graphics		Appelez-nous	-
19	WS01F01651		Inf Sw Cntl 2100w   (Replaces: WB24T10027)			Immediately	$ 61.32
23	WB24T10022		Inf Switch Cntl 1250w				$ 48.75
29	WB03T10207		Knob Wh		Appelez-nous	-
33	WB27T10628		Light Indicator		Appelez-nous	-
34	WG02F04386		Lens   (Replaces: WB25T10041)			Immediately	$ 3.99
84	WS01A01850		Receptacle (wh)   (Replaces: WB08T10034)				$ 34.02
85	WB08T10035		Breaker Receptacle		Appelez-nous	-
91	WB10T10002		Maintop Hinge		Appelez-nous	-
715	WD2X433		Screw 8-18 Bt Tr 5/16 S		Appelez-nous	-
847	WB1X1118		Screw-nickel		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
875	WB01T10046		Scr 8-18 Ab Hw 9/16 Blk		Appelez-nous	-
999	31-10617		Instruction Install		Appelez-nous	-
999	31-10482		Instruction Install		Appelez-nous	-
999	29-5524		Manual Use & Care		Appelez-nous	-
999	31-14416		Manual Mini & Wd Asm		Appelez-nous	-
1000	WB01T10016		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
1006	WS01A01257		Scr 8-32 Tpt Flr .215 Sn   (Replaces: WB01T10020)				$ 3.57
